WDR series

WDR-60-24 380V Input 60W 24V 2.5A Industrial Control AC to DC SMPS DIN Rail Power Supply

Model WDR-60-5 WDR-60-12 WDR-60-24 WDR-60-48 DC Voltage 5V 12V 24v 48V Rated Current 10A 5A 2.5A 1.25A Current range 0~10A 0~5A 0~2.5A 0~1.25A Rated power 50W
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
WDR-60-24
Output Type:
Single
Input Voltage:
180~550VAC or 254~780VDC
Output Voltage:
24V/12V/48V can be choose
Output Frequency:
47~63Hz
Output Current:
2.5A
Output Power
60W
Efficiency:
89%
Workig Temperature:
-30~+85℃
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test
Protection:
OCP OVP SCP OPP
Warranty
3 Years

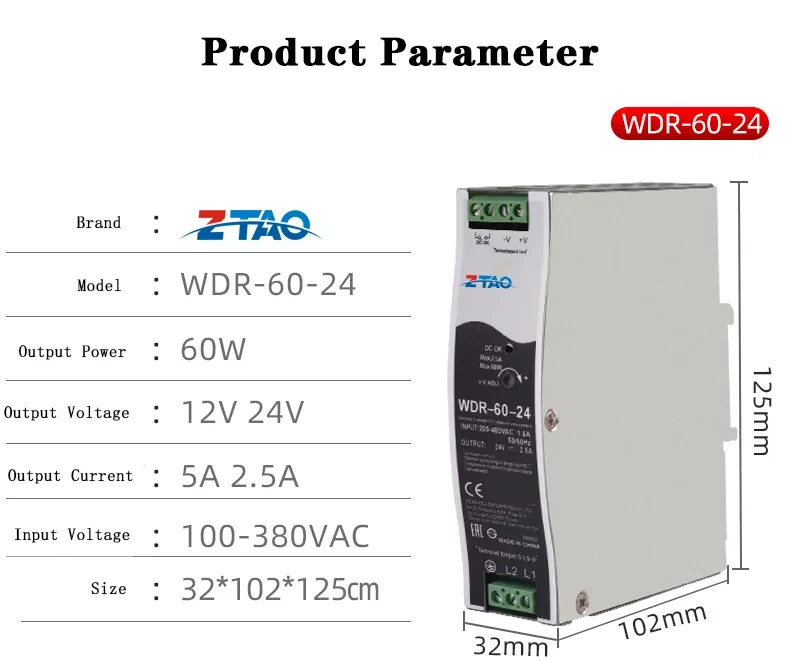

Size
32*125.2*101mm(W*H*D)

WDR-60-24 380V Input 60W 24V 2.5A Industrial Control AC to DC SMPS DIN Rail Power Supply

Model

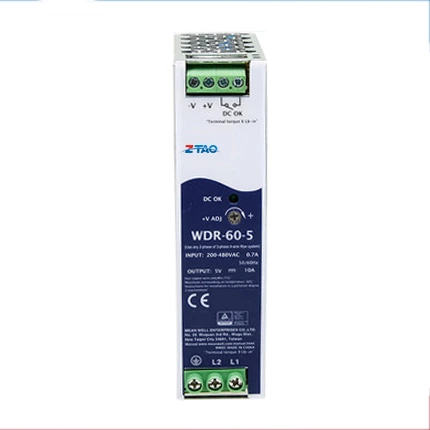

WDR-60-5

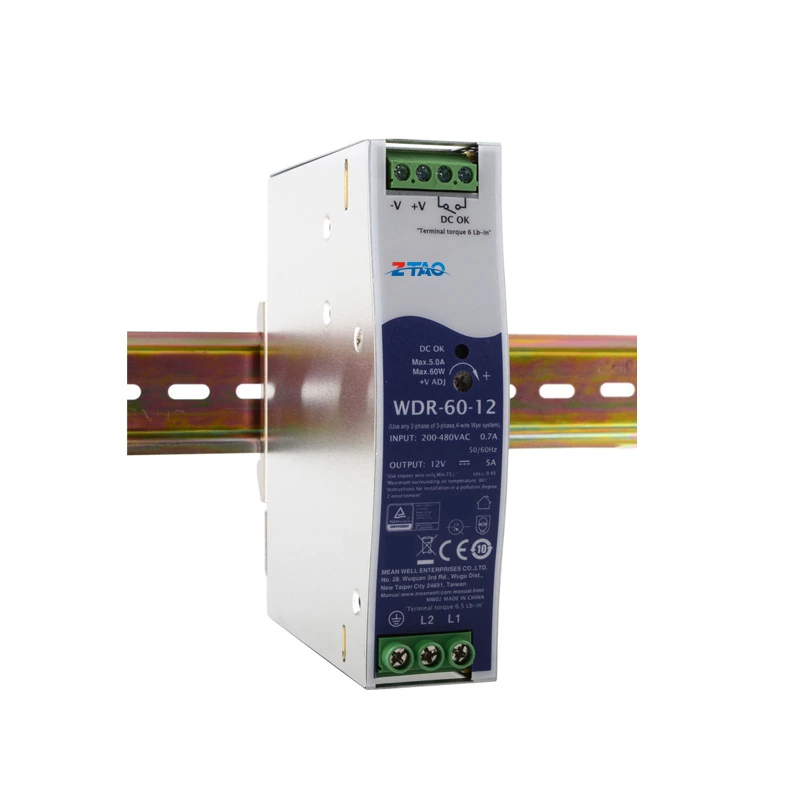

WDR-60-12

WDR-60-24

WDR-60-48

DC Voltage

5V

12V

24v

48V

Rated Current

10A

5A

2.5A

1.25A

Current range

0~10A

0~5A

0~2.5A

0~1.25A

Rated power

50W

60W

60W

60W

Ripple&noise

100mVp-p

120mVp-p

150mVp-p

200mVp-p

Voltage ADJ

5~6V

12~15V

24~29V

48~57V

Efficiency

83.5%

86.5%

89%

90.5%

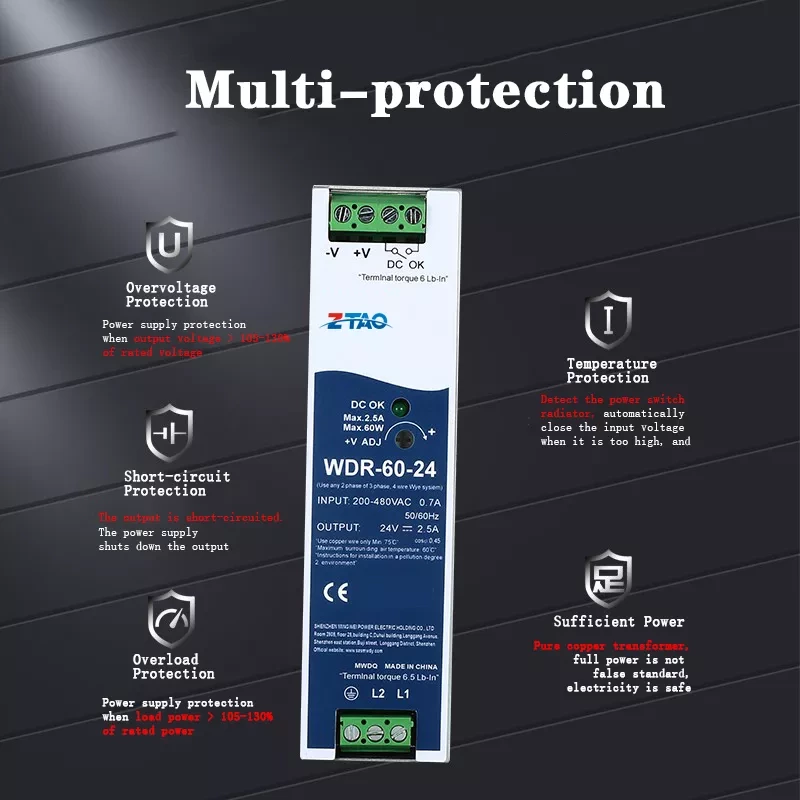

Over load

105% to 135% rated output power

Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Conslant current limiting within 50% ~100% rated output voltaqe, recovers automatically after fault condition is removed


Over voltage

6.2~7.2V

16~18V

31~37V

58~60.5V

Protective mode; Close the output and restart to restore
