Model	SC-35-24		SC-60-24		SC-120-24		SC-180-24
Direct Voltage	CH1:27.6V	CH1:26.5V	CH1:27.6V	CH1:26.5V	CH1:27.6V	CH1:26.5V	CH1:27.6V	CH1:26.5V
Rated Current	1.0A	0.3A	2.0A	0.25A	4.0A	0.5A	6.5A	1.0A
Output Current Range	0-1.0A	---	0-2.0A	---	0-4.0A	---	0-7.6A	---
Rated Power	35.6W		61.8W		118.4W		183.6W 398.4W
Ripple and noise	120mVP-p	---	100mVP-p	---	180mVP-p	---	180mVP-p	---
Voltage Adjustable Range	CH1:21.3~29.8V		CH1:21.3~29.8V		CH1:21.3~29.8V		CH1:21.3~29.8V
Input Voltage	100~260VAC or 140~365VDC				100~120/200~260VAC（Switch）or 255~365VDC
Efficiency	83%		83%		85%		85%
UPS Function Introduction	Long-term online floating charge of the battery, high charging efficiency, battery fullness can be as high as 90% or more
	The battery will stop automatically when it is full to prevent the battery from being overcharged and effectively extend the battery life
	Automatic switching of mains/battery, no switching time, no need for people to watch directly
	Cold start function, when there is no mains power, the battery can be used to start ups directly to meet the emergency needs of users

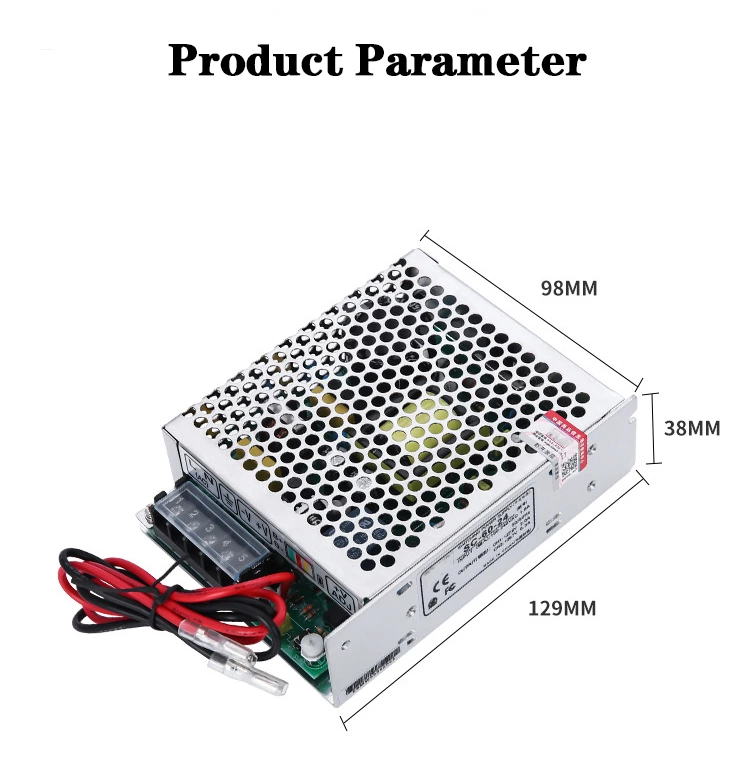

Sc-60-12 60w 12v Cctv Ups Charging Power Uninterrupted Battery Charger Power Supply
