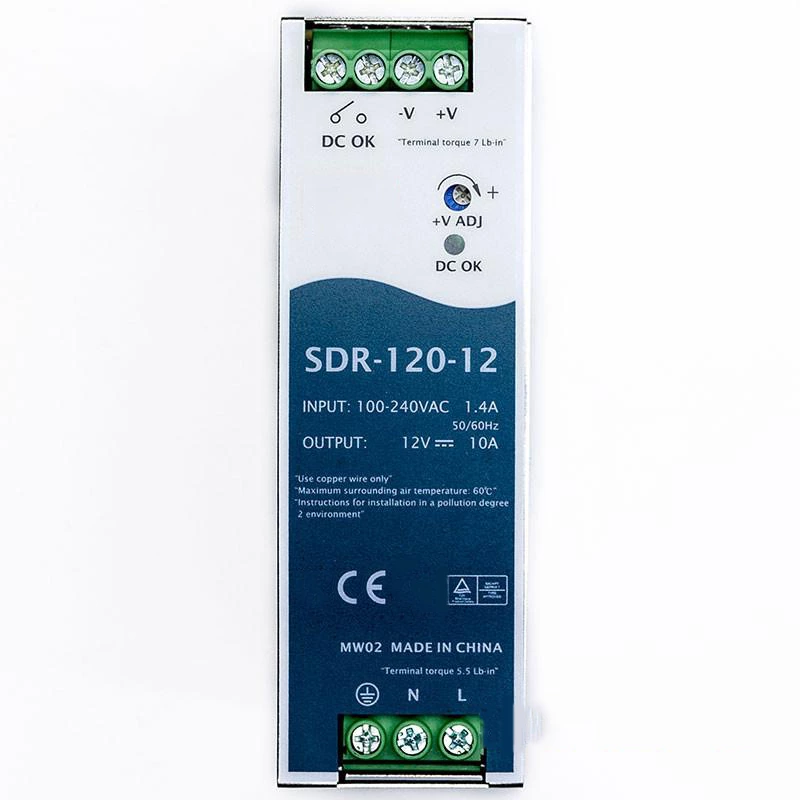

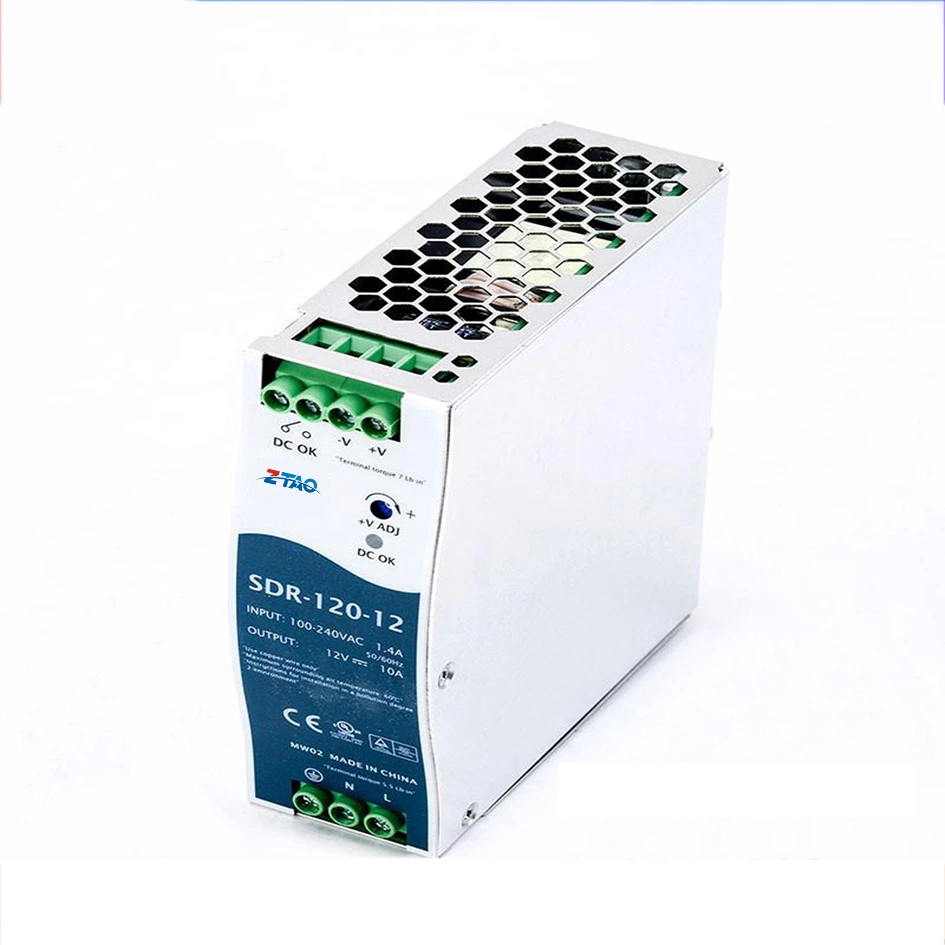

Name: SDR-120-24 12V 10A 24V 5A LED DIN Rail Switching Power Supply
SKU: SDR-120-24
Rating: 0 (382 reviews)

SDR-120-24 12V 10A 24V 5A LED DIN Rail Switching Power Supply

Model SDR-120-12 SDR-120-24 SDR-120-48 DC Voltage 12v 24v 48V Rated Current 10A 5A 2.5A Current range 0~10A 0~5A 0~2.5A Rated power 120w 120w 120w Ripple&no

Place of Origin;

Zhejiang

Brand Name:

ZTAO

Model Number:

SDR-120

Output Type:

SDR-480

Input Voltage:

Single 88~264VAC or 124~370VDC

Output Voltage:

24V/12V/48V can be choose

Output Frequency:

47~63hz

Output Current:

Output Power

120W

Efficiency:

91%

Workig Temperature:

-25℃~+70℃

Certification:

CE FCC ROHS

Test:

100%Full Load Burn-in Test

Protection:

OCP OVP SCP OPP

Warranty

3 Years

Size

40*125.2*113.5mm(W*H*D)

SDR-120-24 12V 10A 24V 5A LED DIN Rail Switching Power Supply

Model	SDR-120-12	SDR-120-24	SDR-120-48
DC Voltage	12v	24v	48V
Rated Current	10A	5A	2.5A
Current range	0~10A	0~5A	0~2.5A
Rated power	120w	120w	120w
Ripple&noise	100mVp-p	100mVp-p	120mVp-p
Voltage ADJ	12~14V	24~28V	48~55V
Efficiency	89%	91%	90.5%
Over load	When the rated output power is 110% to 150%, turn off the output voltage after working for more than 3 seconds and restart the device
Over load	150%~170% rated output power, constant current limit and automatic recovery within 3 seconds, 3 seconds after the output voltage off, restart recovery
Over voltage	14~17V	29~33V	58~65V
Over voltage	Protective mode; Close the output and restart to restore
