MODEL |
|
S-1500-12 |

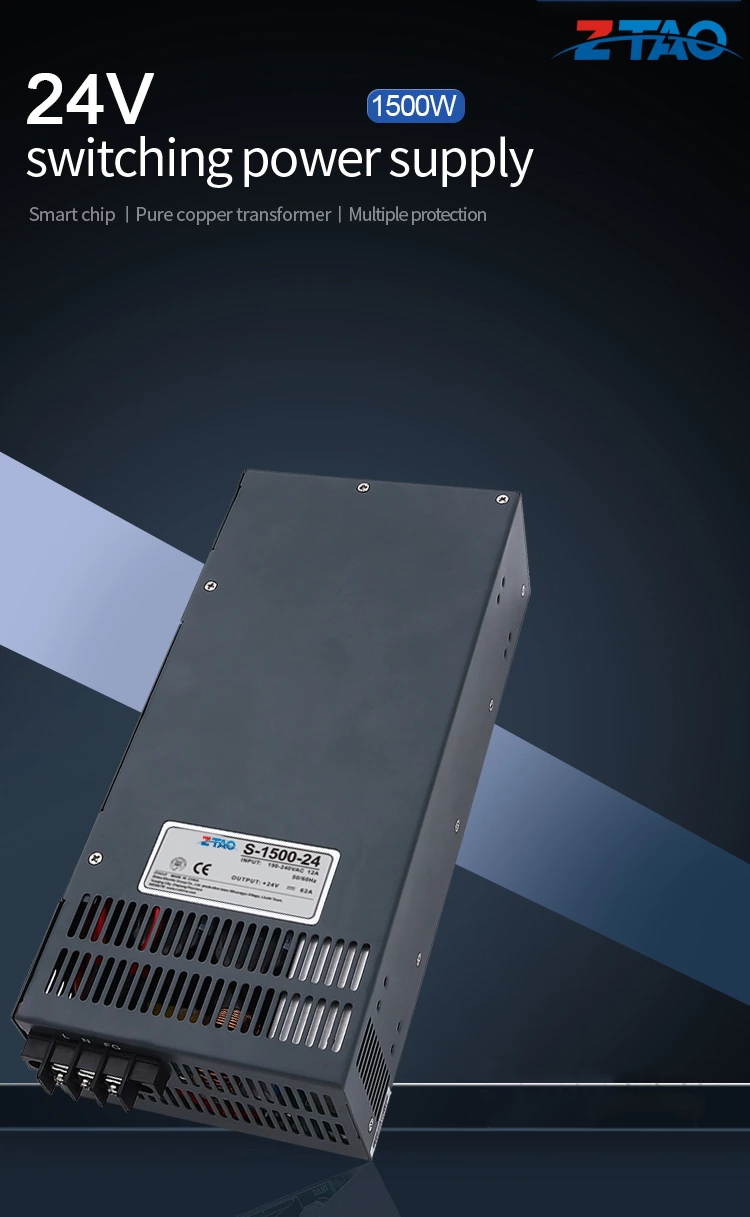

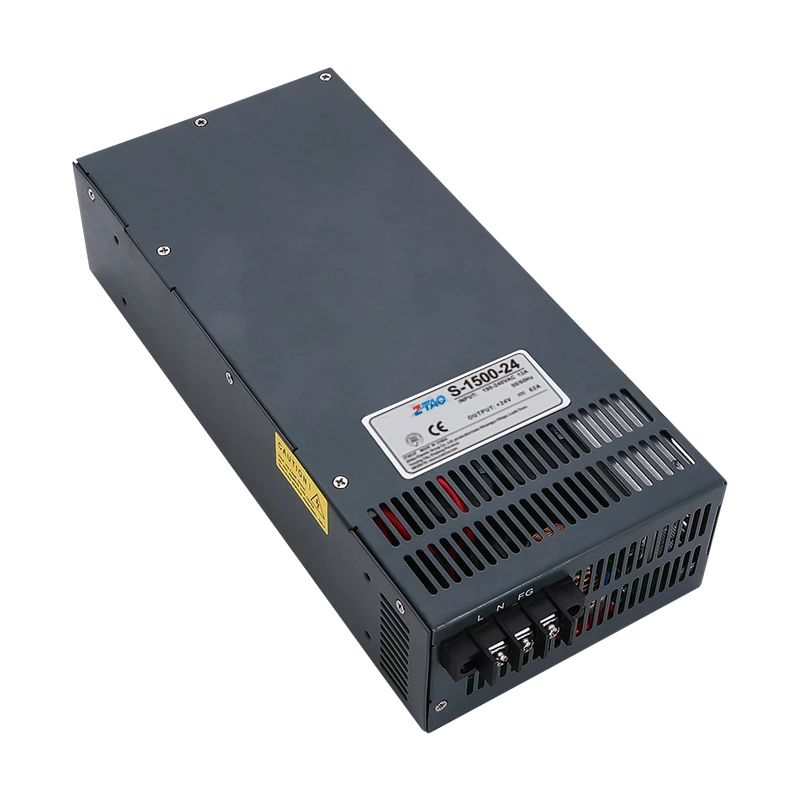

S-1500-24 |
S-1500-36 |
S-1500-48 |
|
OUTPUT |
DC Voltage |
12V |
24V |
36V |
48V |
|
Rated Current |
110A |
62.5A |
41.7A |
31.25A |
|
|
Current range |
0~110A |
0~62.5A |
0~41.7A |
0~31.25A |
|
|
Rated power |
1320W |
1500W |
1501.2W |
1500W |
|
|
Ripple&noise |
200mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
|
|
Voltage ADJ. Range |
12~14V |
24~28V |
36~38V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms, 50ms/230VAC (full load) |
||||
|
Hold up time(typ) |
20ms/230VAC (full load) |
||||
|
INPUT |
Voltage range |
185～264VAC 260～373VDC |
|||
|
Frequency range |
50~60Hz |
||||
|
Efficiency (Typ) |
82% |
83% |
83% |
83% |
|
|
AC current (Typ) |
10.5A 190~230VAC |
||||
|
Inrush current (Typ) |
Cold start: 50A/230VAC |
||||
|
Leakage current |
<6mA/240VAC |
||||
|
PROTECTION |
Over load |
105%~150% in rated output power |
|||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
|||||
|
Over voltage |
15~16.5V |
29~33V |
40~45V |
58~65V |
|
|
Protection mode,tum off output voltage, restart to recover |
|||||
|
FUNCTION |
Fan switch control |
Fan temperature control |
|||
|
RTH3：≥60℃ Fan turn fast ≥90℃ Close the output |
|||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
|||
|
Working humidity |
20%~65% RH non-condensing |
||||
|
Storage TEMP humidity |
-10℃~+65℃. 10%~95% RH |
||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes. Installation in accordance with IEC60068-2-6 |
||||
|
SAFETY |
Safety regulations |
Ul60950-1,CB(IEC60950-1) are certified |
|||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
||||
|
OTHERS |
MRBF |
≥245K hrs.MIL-HDBK-210F(25℃) |
|||
|

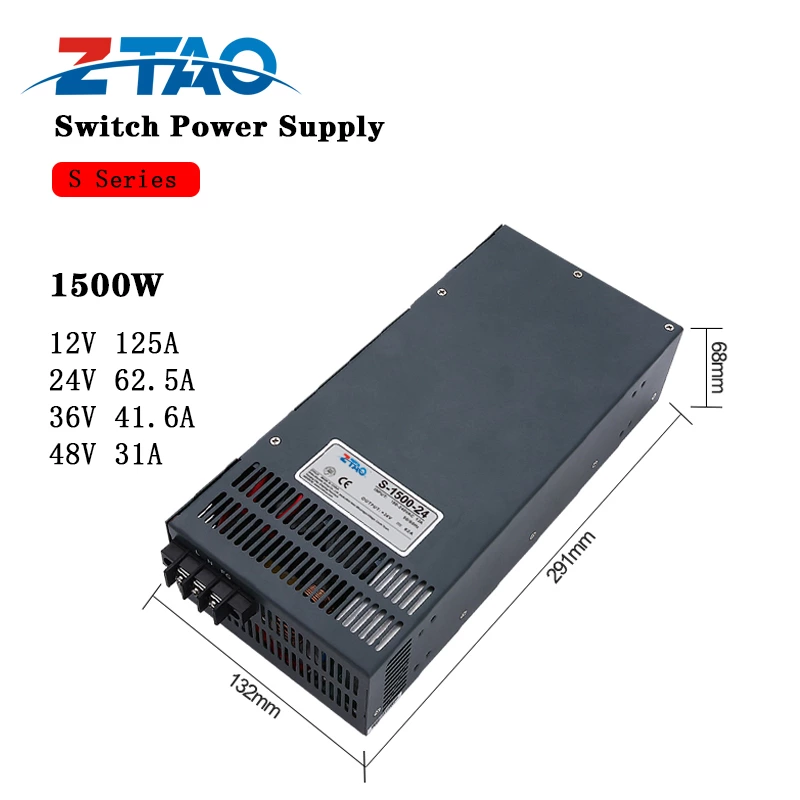

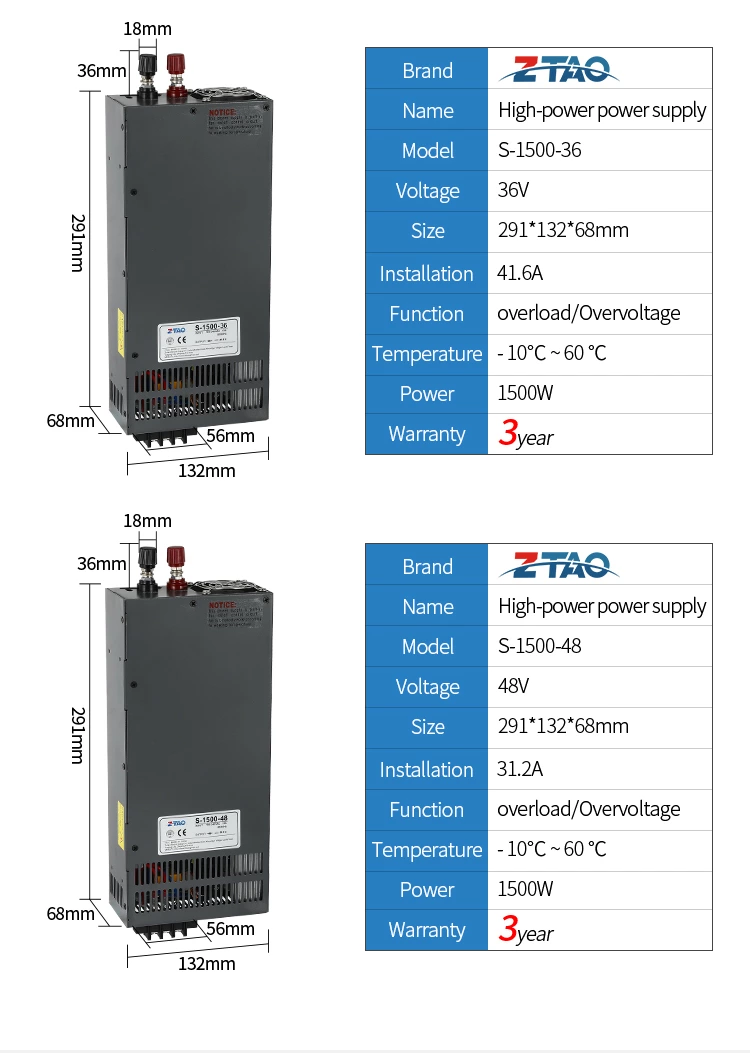

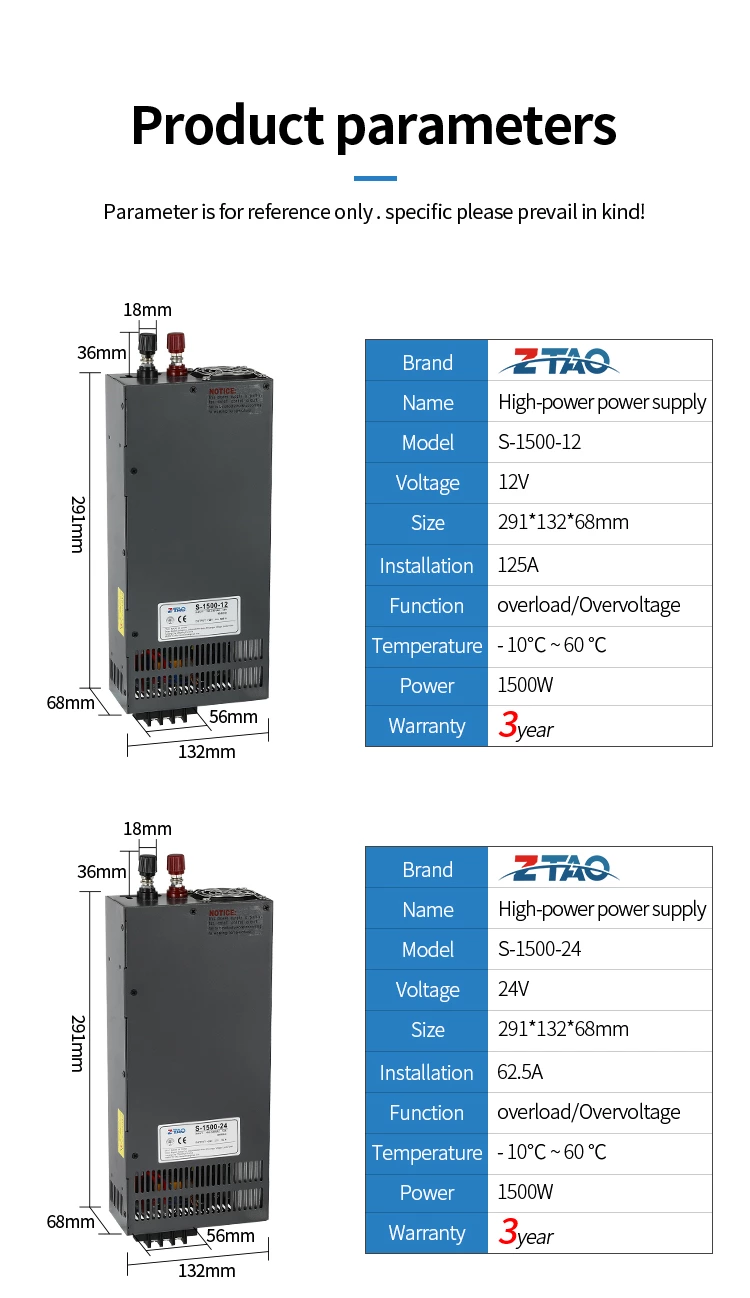

Dimension |
291*132*68mm(L*W"H) |
||||
|
Packing |
2.1Kg:6PCS/13Kg/0.9CUFT |
||||
