MODEL |
|
S-25-5 |
S-25-12 |
S-25-24 |
S-25-36 |
S-25-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
5A |
2A |
1.1A |
0.69A |
0.52A |
|
|
Current range |
0~5A |
0~2A |
0~1.1A |
0~69A |
0~0.52A |
|
|
Rated power |
25W |
24W |
26.4W |
24.84W |
24.96W |
|
|
Ripple&noise(max.) |
50mVp-P |
100mVp-p |
100mVp-p |
120mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
5~7V |
12~14V |
24~28V |
36~38V |
48V~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms, 50ms/230VAC 200ms, 50ms/115VAC(full load) |
|||||
|
Hold up time (Typ) |
20ms/230VAC 18ms/115VAC(full load) |
|||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC） |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
75% |
78% |
80% |
82% |
84% |
|
|
AC current (Typ) |
2.6A/115VAC 1.6A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start:13A/115VAC 25A/230VAC |
|||||
|
Leakage current |
<0.75mA/240VAC |
|||||
|
PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
8~10V |
15-16.5V |
29~33V |
40~45V |
58~65V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃. |
||||
|
Working humidity |
20~65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+60℃，10-95% RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min./1cycle .60min Each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
UL60950-1.CB（IEC60950-1）In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011, EN55011 EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020 |
|||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN1000-6-1 Class A light industry standard |
|||||
|
OTHERS |
MTBF |
≥384K hrs.MIL-HDBK-217F(25℃) |
||||
|

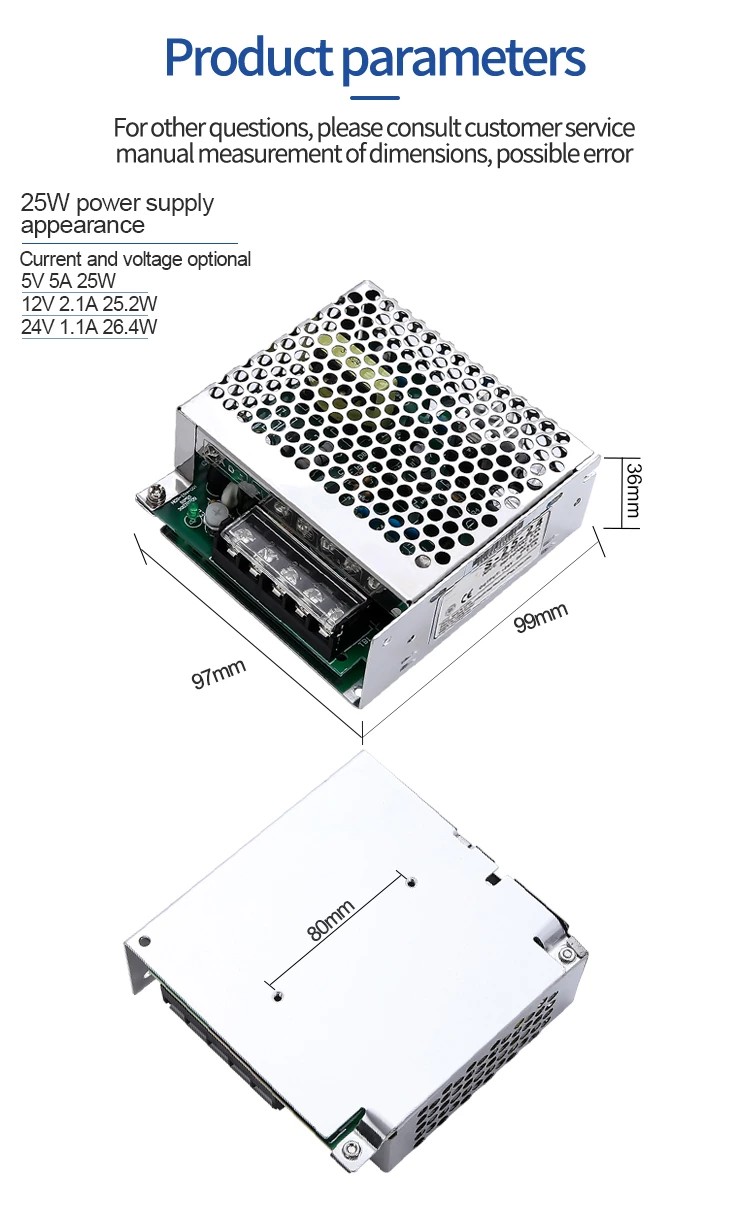

Dimension |
99*97*36mm(L*W*H) |
|||||
|
Packing |
0.32Kg:45pcs/17Kg/0.93CUFT |
|||||
