MODEL |
|
S-50-5 |
S-50-12 |
S-50-24 |
S-50-36 |
S-50-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
10A |
4.2A |
2.1A |
1.4A |
1.1A |
|
|
Current range |
0~10A |
0~4.2A |
0~2.1A |
0~1.4A |
0~1.1A |
|
|
Rated power |
50W |
50.4W |
50.4W |
50.4W |
50.4W |
|
|
Ripple&noise |
75mVp-P |
100mVp-p |
100mVp-p |
120mVp-p |
120mVp-p |
|
|
Voltage ADJ. range |
5~7V |
12~14V |
24~28V |
36~38V |
48V~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms，80ms/230VAC 200ms，85ms/115VAC(full load) |
|||||
|
Hold up time (Typ) |
20ms/230VAC 45ms/115VAC(full load) |
|||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency(Typ) |
78% |
80% |
82% |
82% |
84% |
|
|
AC current(Typ) |
1.2A/115VAC 0.6A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start:20A/115VAC 40A/230VAC |
|||||
|
Leakage current |
<1mA/240VAC |
|||||
|

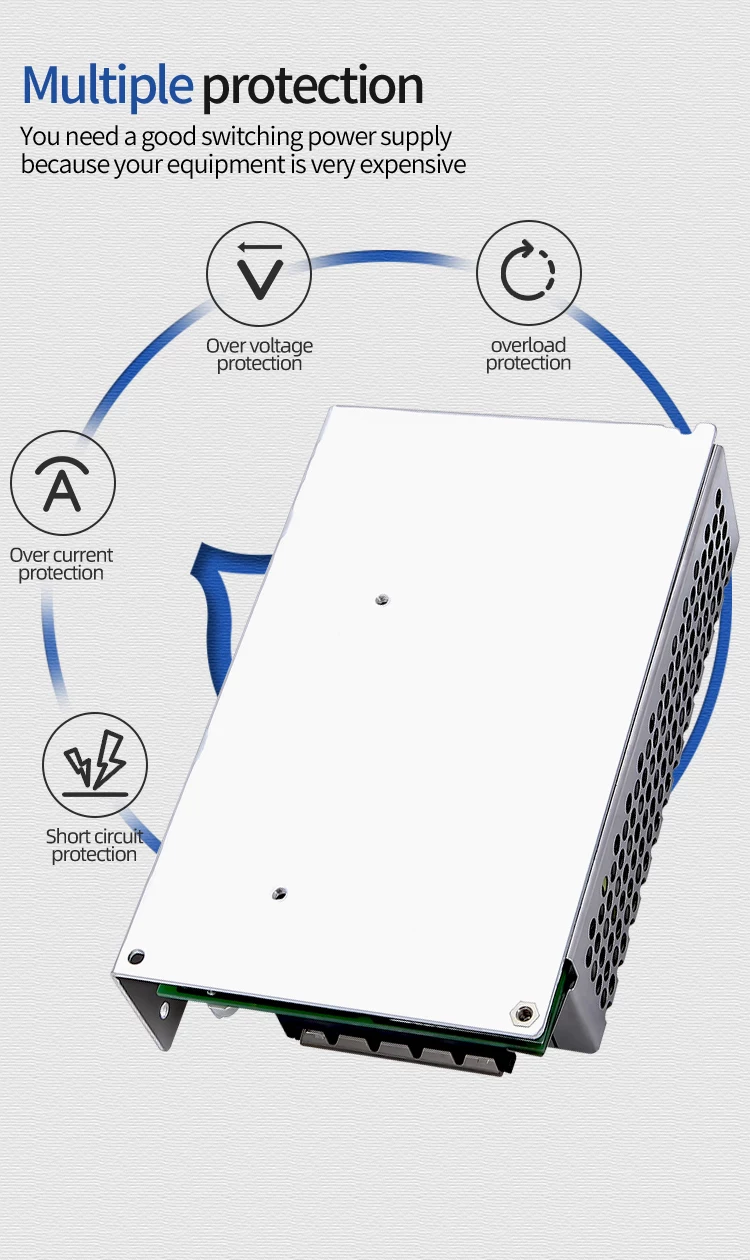

PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
8~10V |
15~16.5V |
29~33V |
40~45V |
58-65V |
|
|
Protection mode,tum off output voltage,restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20~65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+60℃，10~95%RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|||||
|
Vibration |
10-500Hz，2G10min./1cycle, 60min each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
UL60950-1.CB(IEC60950-1)In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55022(CISPR22)CLASS B,EN61000-3-2,-3, |
|||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024. EN1000-6-1 Class A light industry standard |
|||||
|
OTHERS |
MTBF |
≥370K hrs. MIL-HDBK-217F(25℃) |
||||
|

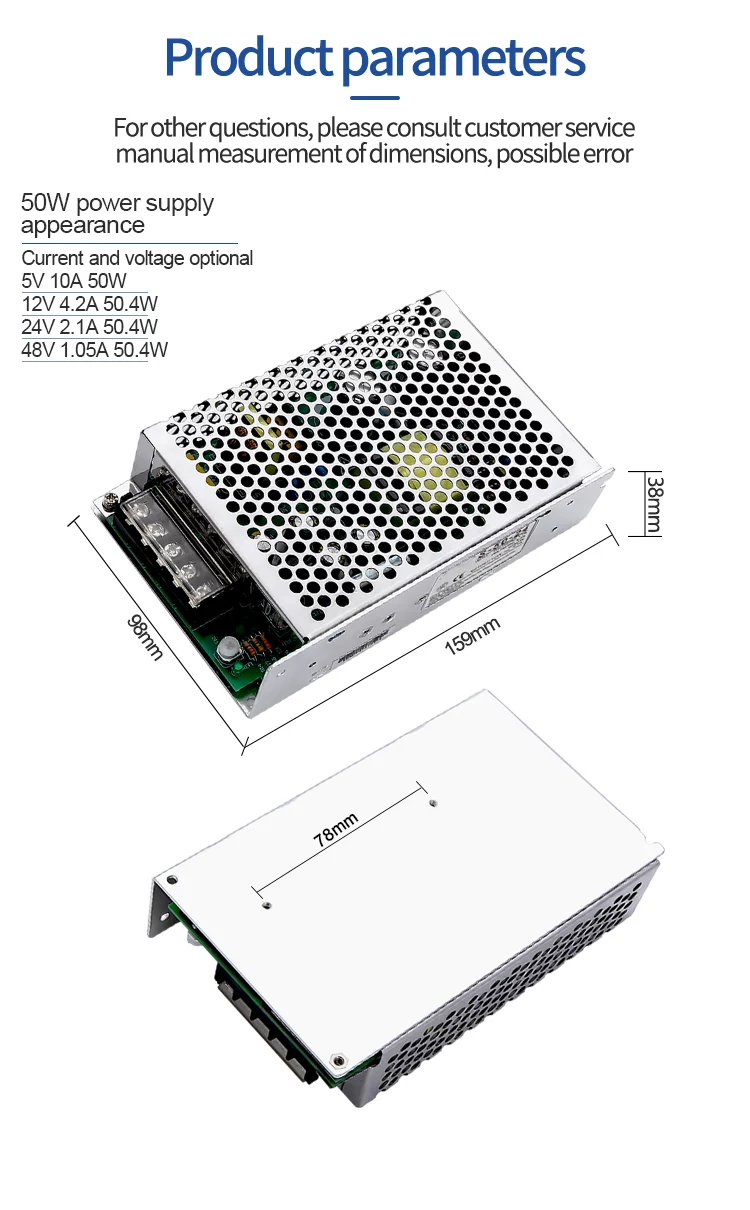

Dimension |
159*98*38mm(L*W*H) |
|||||
|
Packing |
0.45Kg:30PCS/14Kg/0.9CUFT |
|||||
