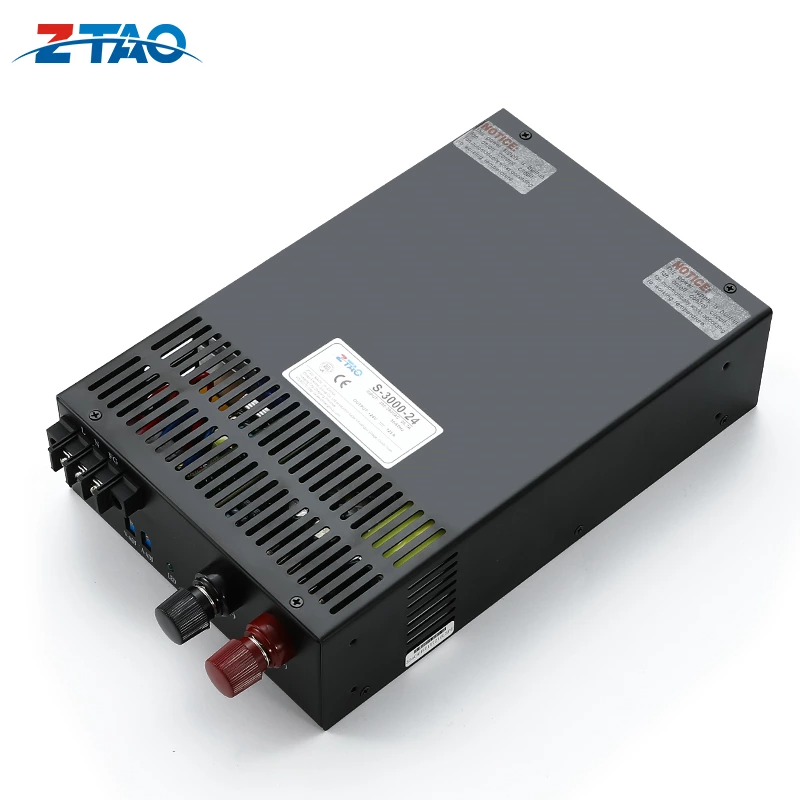

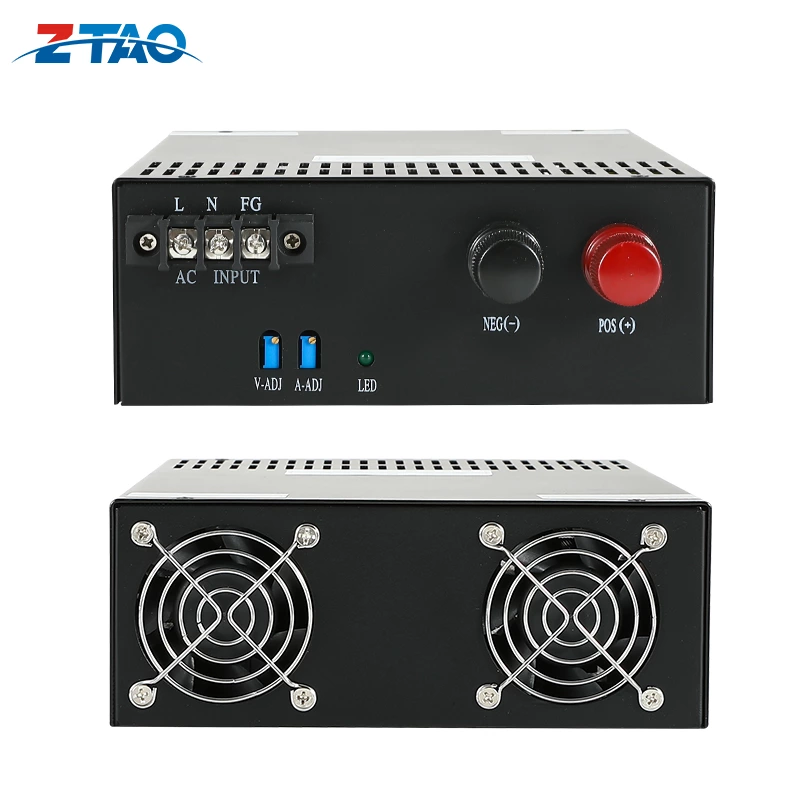

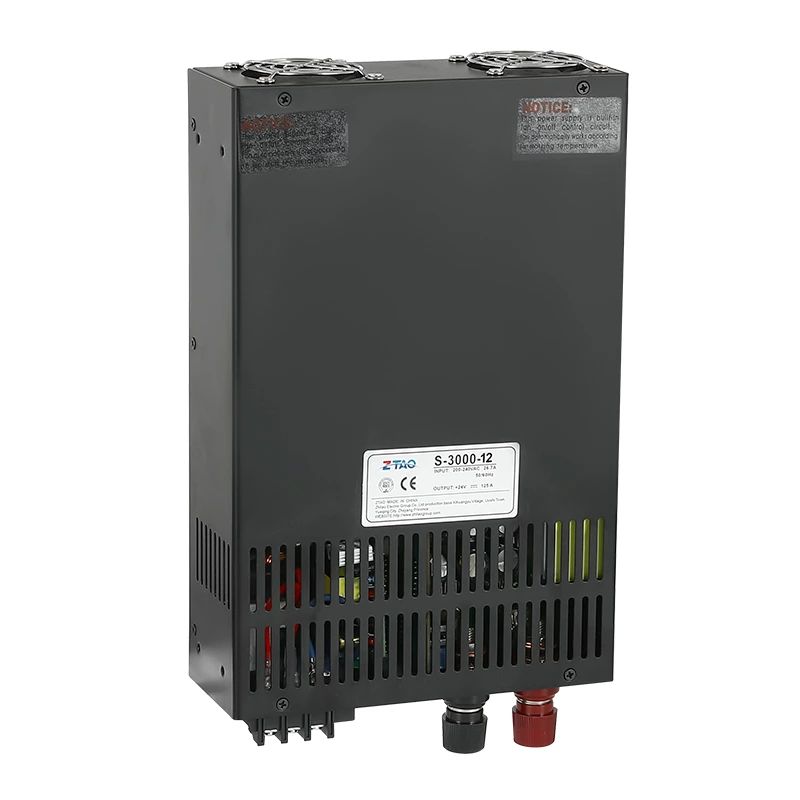

Name: High-power High Voltage Ac Dc Smps 3000w S-3000-12 12v 250A 24V 48V Switching Mode Power Supply
SKU: S-3000-12
Rating: 0 (531 reviews)

High-power High Voltage Ac Dc Smps 3000w S-3000-12 12v 250A 24V 48V Switching Mode Power Supply

MODEL S-3000-12 S-3000-24 S-3000-36 S-3000-48 OUTPUT DC Voltage 12V 24V 36V 48V Rated Current 250A 125A 83A 62.5A Current range 0~250A 0~125A 0~83A 0~62.5A Ra

Place of Origin;

Zhejiang, China

Brand Name:

ZTAO

Model Number:

S-3000-12 S-3000-24 S-3000-48 S-3000-36

Output Type:

Single

Input Voltage:

195~240VAC,273~340VDC

Output Voltage:

12v 24V 48V 36V can be choose (also can be do the customzied )

Output Frequency:

50~60Hz

Output Current:

250A

Output Power

3000w

Efficiency:

78%

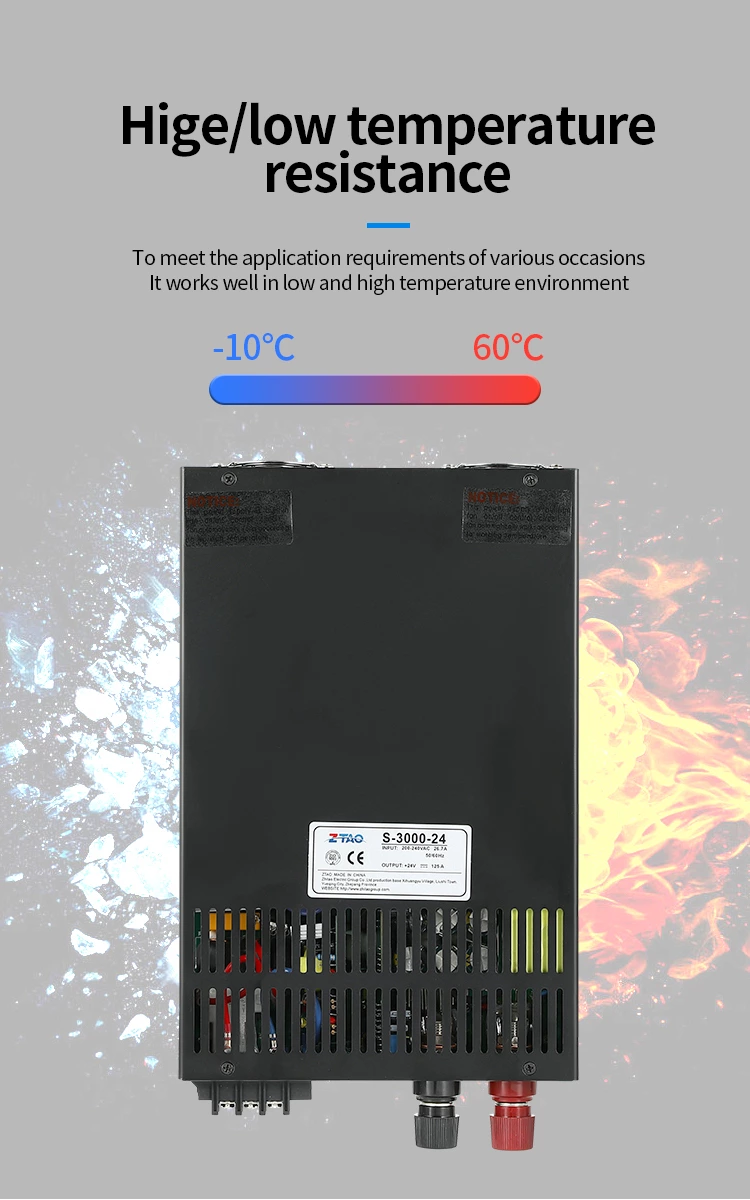

Workig Temperature:

-10℃-60℃

Materail:

Aluminum

Certification:

CE FCC ROHS

Test:

100%Full Load Burn-in Test

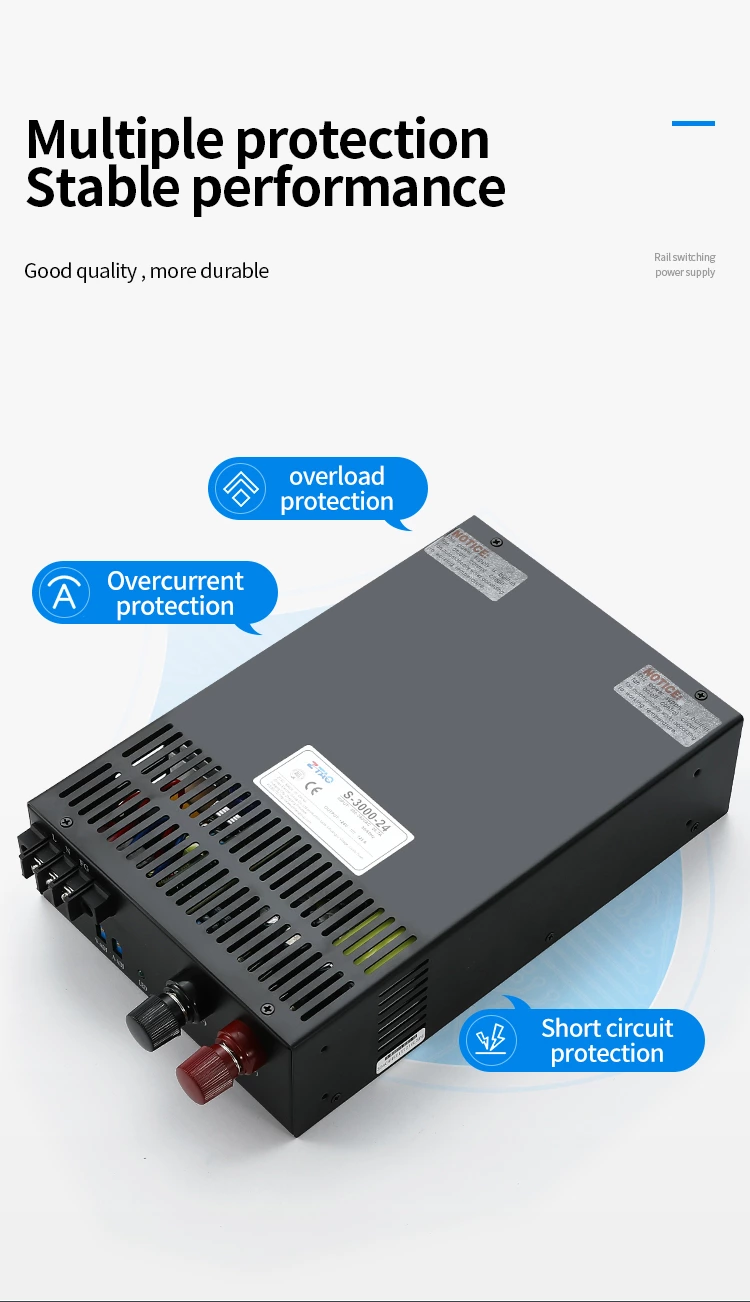

Protection:

Short Circuit Overtemp Overload Overvolt

Warranty

3 Years

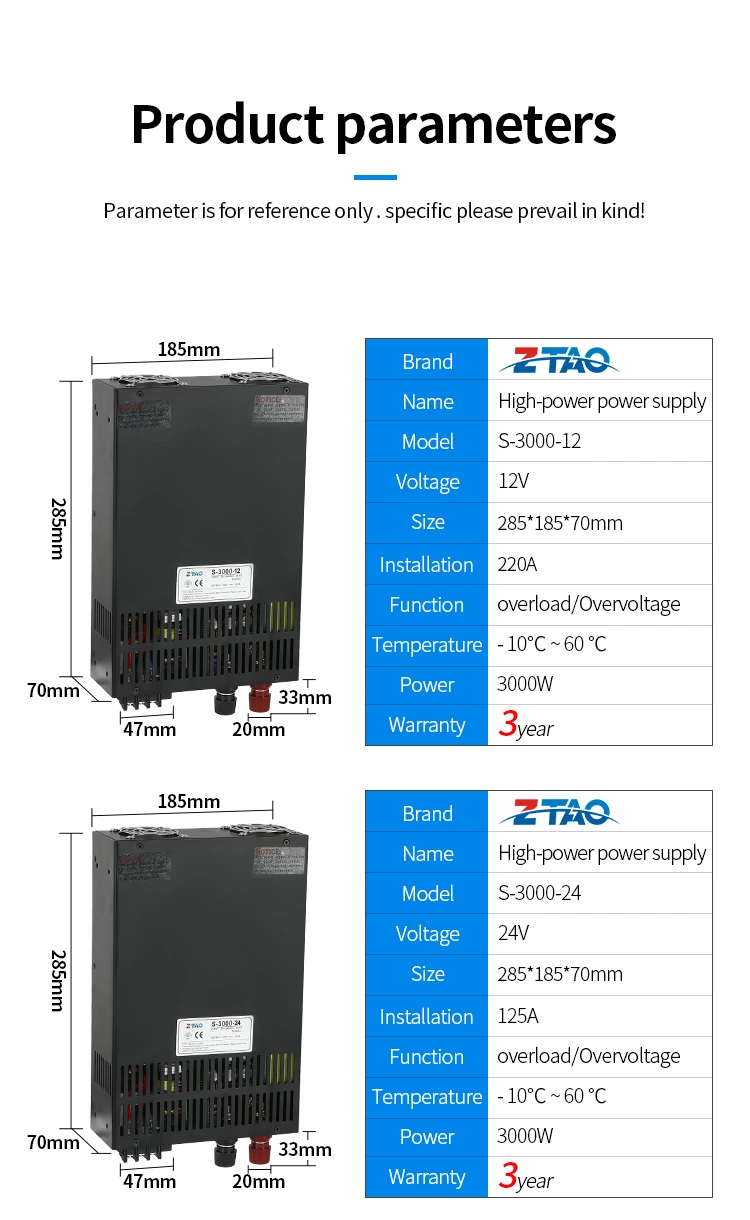

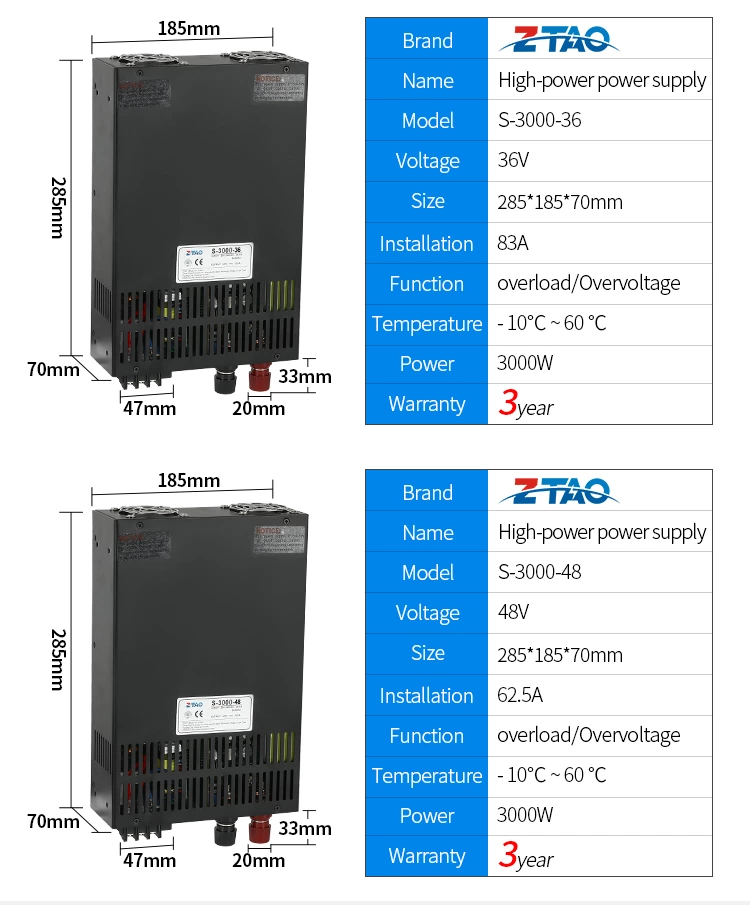

Size

285*185*70mm

High-power High Voltage Ac Dc Smps 3000w S-3000-12 12v 250A 24V 48V Switching Mode Power Supply

MODEL		S-3000-12	S-3000-24	S-3000-36	S-3000-48
OUTPUT	DC Voltage	12V	24V	36V	48V
	Rated Current	250A	125A	83A	62.5A
	Current range	0~250A	0~125A	0~83A	0~62.5A
	Rated power	3000W	3000W	3000W	3000W
	Ripple&noise	300mVp-p	240mVp-p	240mVp-p	240mVp-p
	Voltage ADJ.	12~14V	24~28V	36~38V	48~53V
	Setup,Rise,Time	200ms, 50ms/230VAC (full load)
	Hold up time	20ms/230VAC (full load)
INPUT	Voltage range	195～240VAC 273～340VDC
	Frequency range	50~60Hz
	Efficiency	78%	82%	83%	84%
	AC current	60A 230VAC
