MODLE |
|
S-200-5 |
S-200-12 |
S-200-24 |
S-200-36 |
S-200-48 |
|
OUTPUT |
DC voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated current |
40A |
16.7A |
8.3A |
5.6A |
4.2A |
|
|
Current range |
0~40A |
0~16.7A |
0~8.3A |
0~5.6A |
0~4.2A |
|
|
Rated power |
200W |
200.4W |
200.16W |
201.6W |
201.6W |
|
|
Ripple & noise(max.) |
100mVp-p |
150mVp-p |
150mVp-p |
160mVp-p |
160mVm-p |
|
|
Voltage ADJ.range |
5~8V |
12~14V |
24~28V |
36~38v |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms, 100ms/230VAC 200ms, 100ms/115VAC(full load) |
|||||
|
Hold up time (Typ) |
20ms/230VAC 45ms/115VAC(full load) |
|||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on230VAC） |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency(Typ) |
78% |
80% |
83% |
84% |
84% |
|
|
AC current (Typ） |
3.2A/115VAC 1.8A/230VAC |
|||||
|
Inrush current(Typ) |
Cold start:35A/115VAC 70A/230VAC |
|||||
|
Leakage current |
<3.6A/240VAC |
|||||
|
PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
8~10V |
15~16.5V |
29~33V |
40~45V |
58~65V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
working humidity |
20-65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+65℃,10~95%RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|||||
|
Vibration |
10~500Hz， 2G 10min./1cycle , 60min each along X,Y,Z axes Install in accordance with IEC60068-2-6 |
|||||
|
SAFETY |
Safety regulations |
UL60950-1,CB(IEC60950-1) In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1 .5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55022(CISPR22)CL ASS B,EN61000-3-2,-3, |
|||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3.4,5,6,8,11,EN55024. EN1000-6-2 Class A heavy industry standard |
|||||
|
OTHERS |
MTBF |
≥260K hrs. MIL-HDBK-217F(25C) |
||||
|
Dimension |

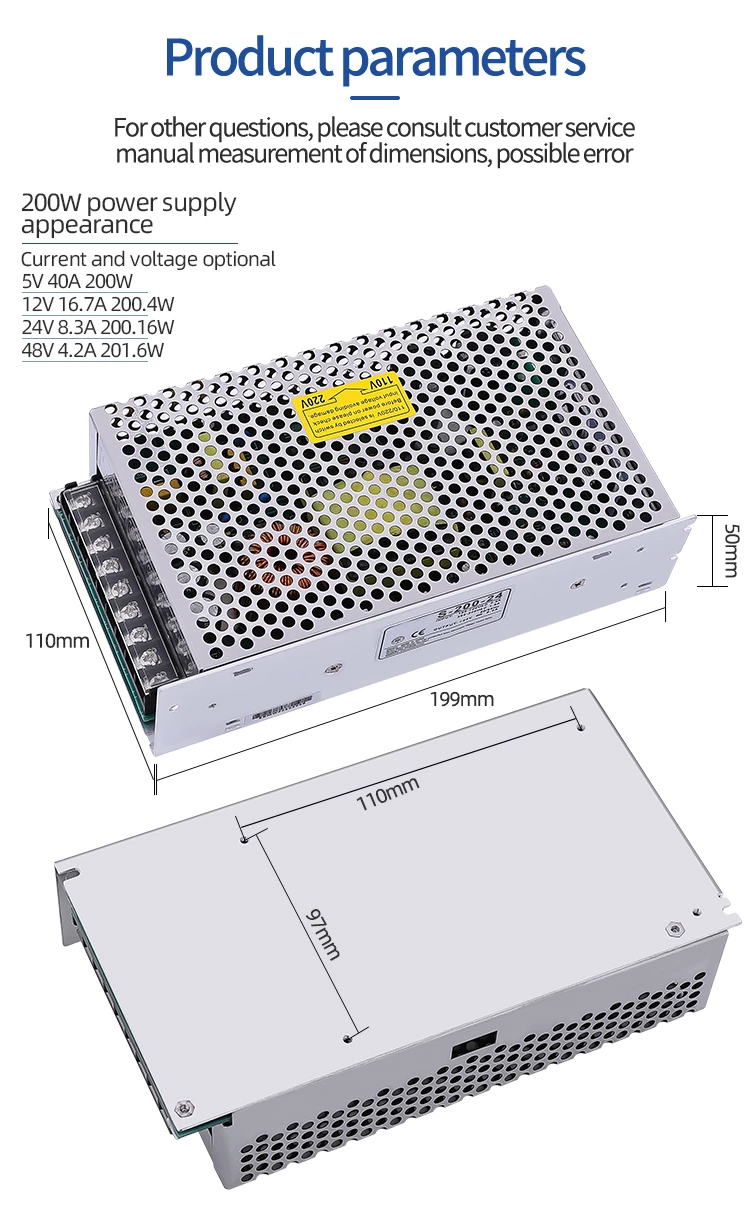

199*110*50mm(L*W*H) |
|||||
|
Packing |
0.88Kg:20PCS/20Kg/1.0CUFT |
|||||
