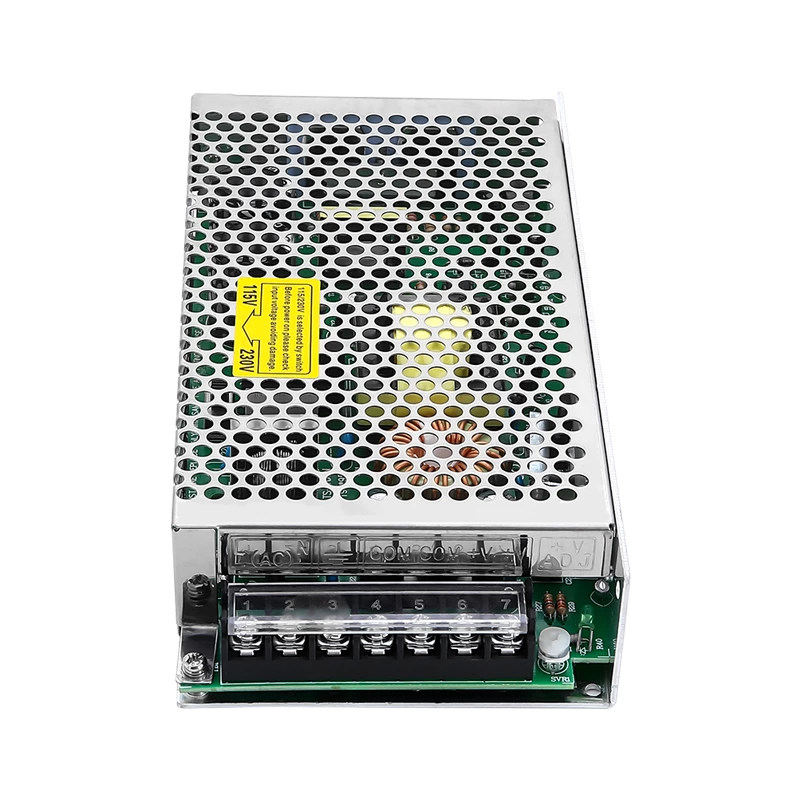

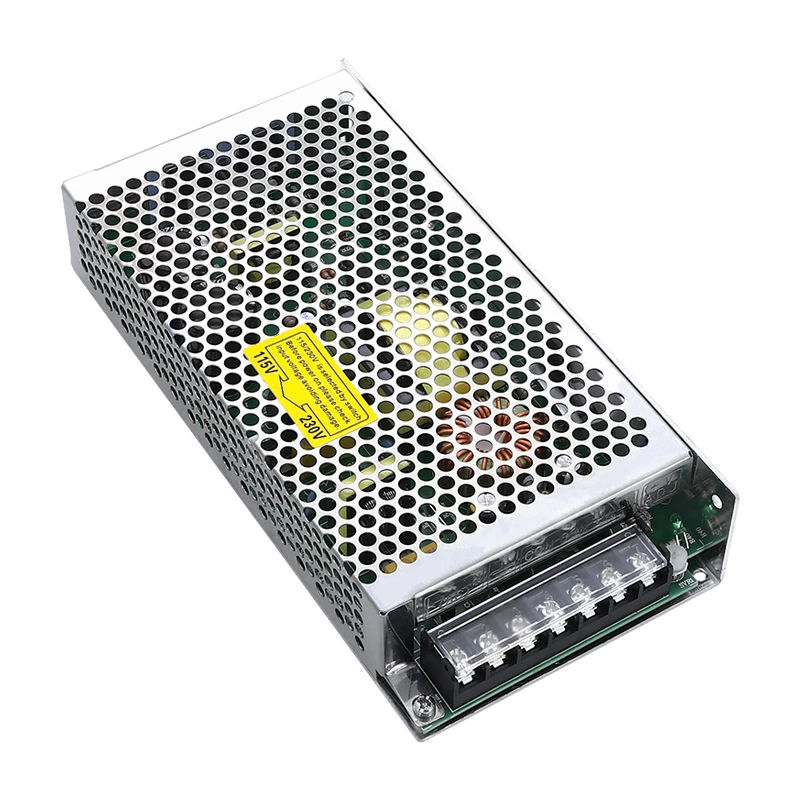

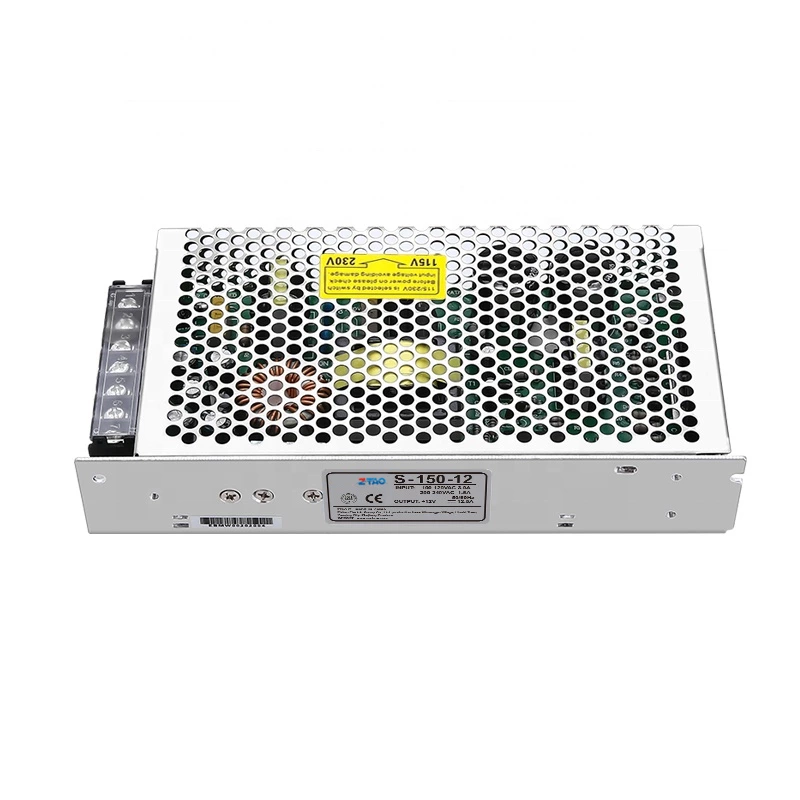

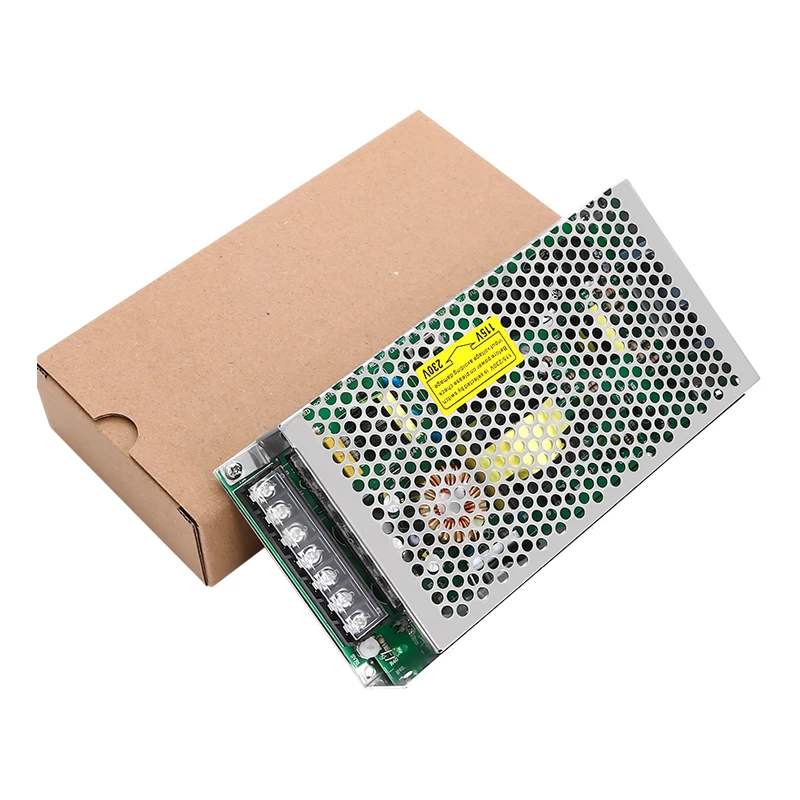

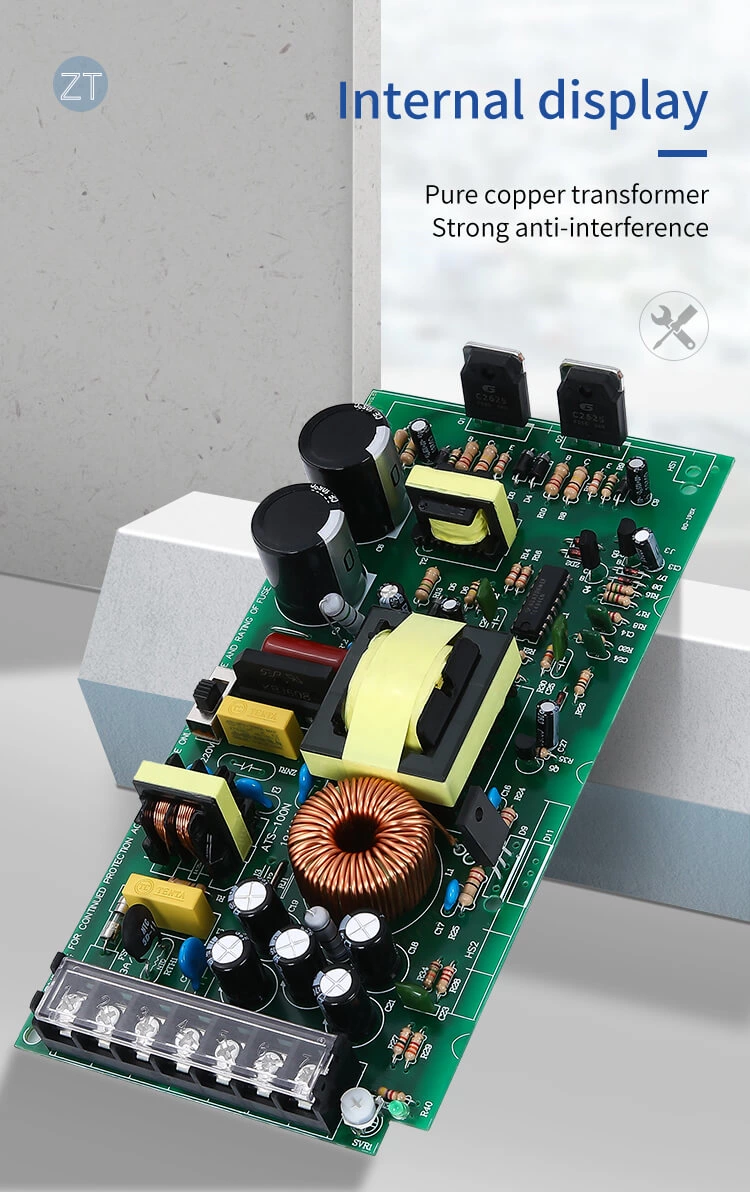

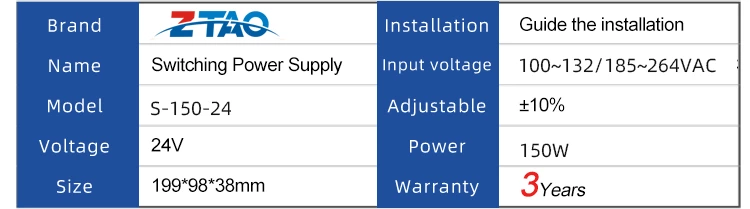

MODEL |
|
S-150-5 |
S-150-12 |
S-150-24 |
S-150-36 |
S-150-48 |
|
|
OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
|
Rated Current |
26A |
12.5A |
6.5A |
4.2A |
3.2A |
||
|
Current range |
0~26A |
0~12.5A |
0~6.5A |
0~4.2A |
0~3.2A |
||
|
Rated power |
130W |
150W |
156W |
151.2W |
153.6W |
||
|
Ripple&noise(max.) |
80mVp-p |
120mVp-p |
120mVp-p |
200mVp-p |
200mVp-p |
||
|
Voltage ADJ. range |
5~7V |
12~14V |
24~28V |
36~38V |
48V~53V |
||
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
||
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
||
|
Setup,Rise,Time |
100ms, 50ms/230VAC 100ms，60ms/115VAC(full load) |
||||||
|
Hold up time(typ) |
25ms/230VAC 50ms/115VAC(full load) |
||||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC） |
|||||
|
Frequency range |
50~60Hz |
||||||
|
Efficiency (Typ) |
78% |
80% |
81% |
82% |
82% |
||
|
AC current (Typ) |
3.0A/115VAC 1.6A/230VAC |
||||||
|
Inrush current (Typ) |
Cold start:35A/115VAC 70A/230VAC |
||||||
|
Leakage current |
<3.5mA/240VAC |
||||||
|

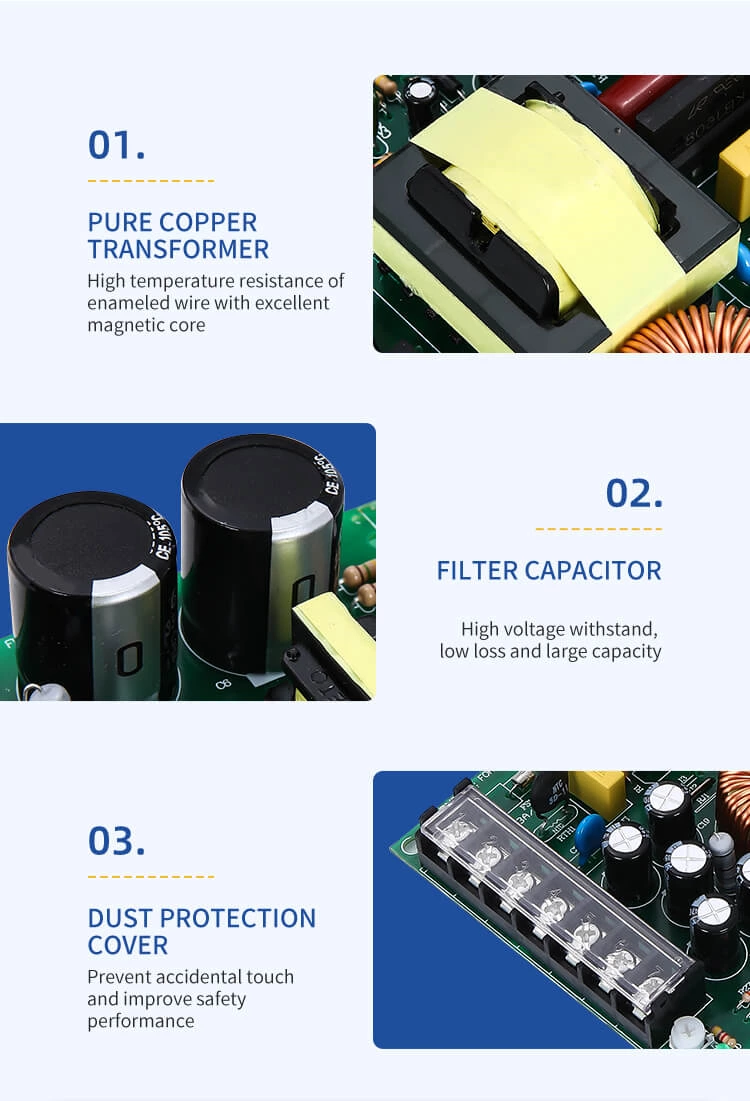

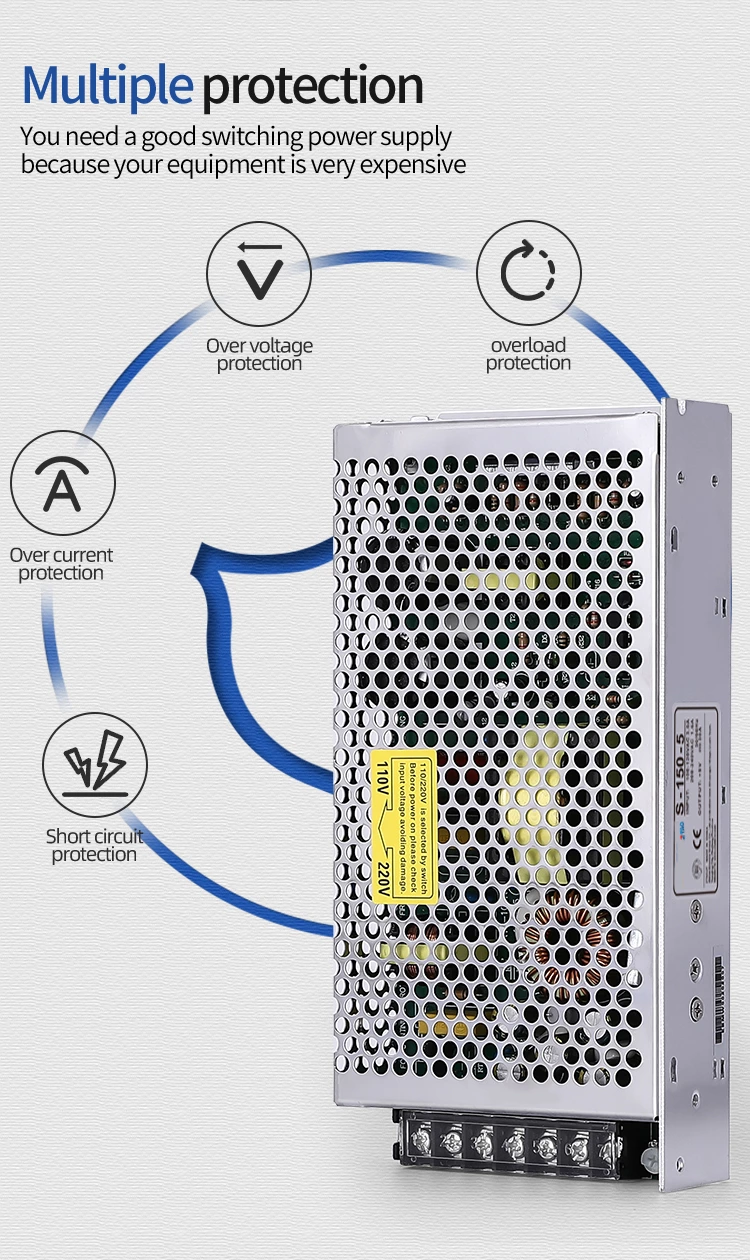

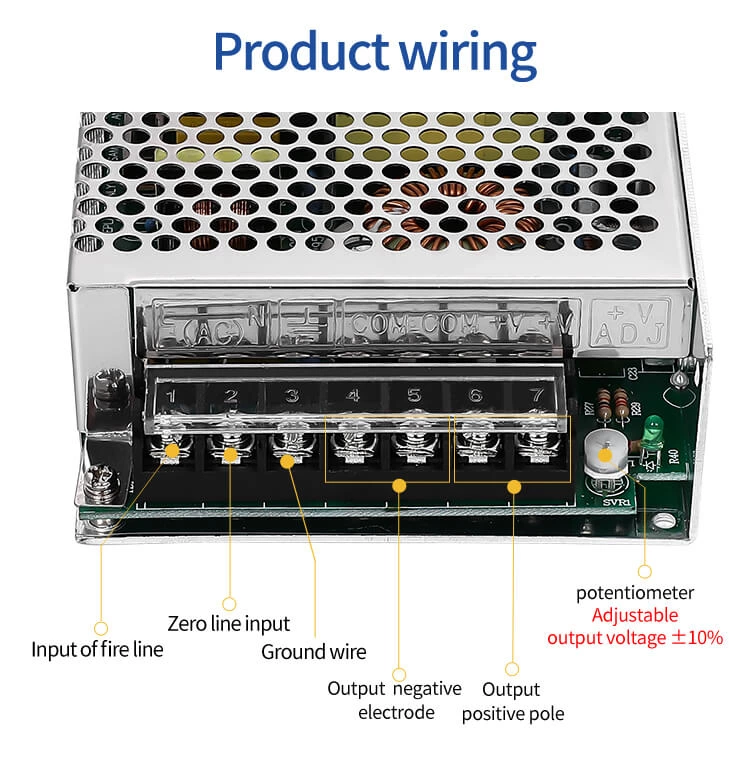

PROTECTION |
Over load |
105%~150% in rated output power |
|||||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
|||||||
|
Over voltage |
8~10V |
15~16.5V |
29~33V |
40~45V |
58-65V |
||
|
Protection mode,tum off output voltage, restart to recover |
|||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
|||||
|
Working humidity |
20%~65% RH non-condensing |
||||||
|
Storage TEMP humidity |
-10℃~+65℃. 10%~95% RH |
||||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
||||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install in accordance with IEC60068-2-6 |
||||||
|
SAFETY |
Safety regulations |
UL60950-1,CB(IEC60950-1).In line with the certification |
|||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
||||||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC |
||||||
|
Electromagnetic compatible emission |
Compliance toEN55022(CISPR22)CLASS B,EN61000-3-2,-3, |
||||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2,Class A heavy industry standard |
||||||
|
OTHERS |
MTBF |
≥260K hrs.MIL-HDBK-217F(25℃) |
|||||
|

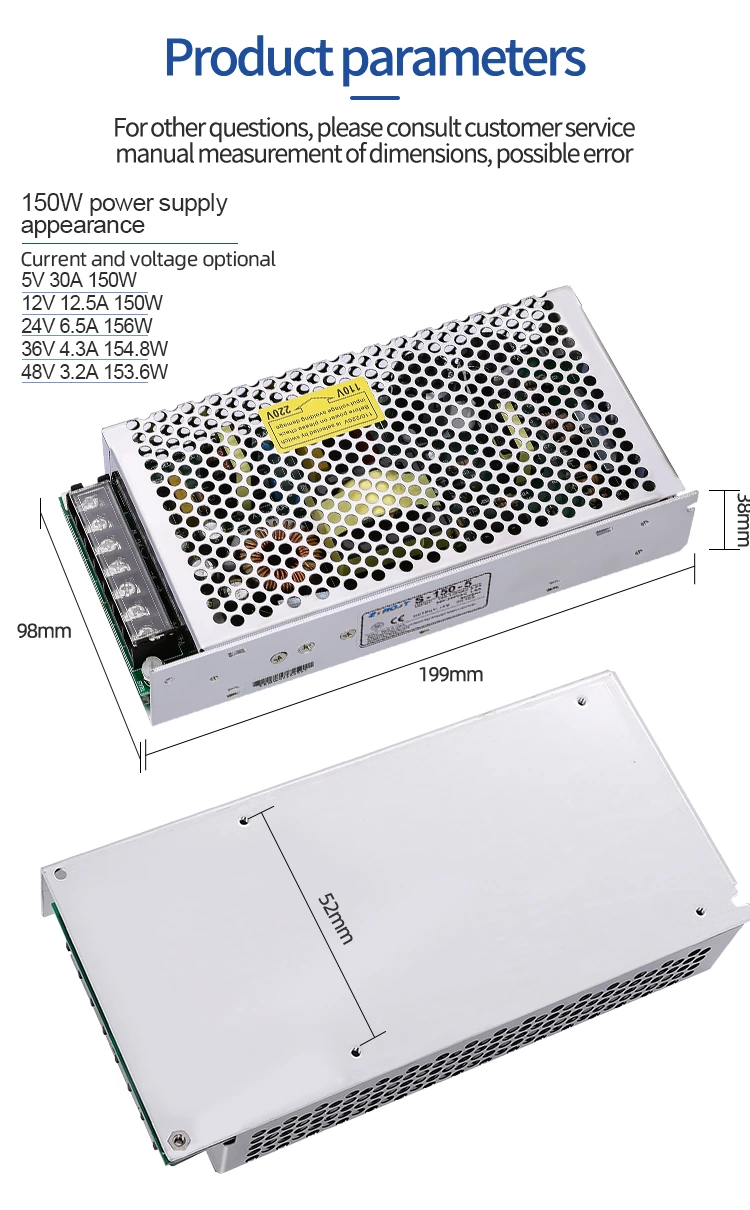

Dimension |
199*98*38mm(L*W"H) |
||||||
|
Packing |
0.58Kg:30PCS/18Kg/0.95CUFT |
||||||
