MODEL |
|
NES-50-5 |
NES-50-12 |
NES-50-24 |
NES-50-36 |
NES-50-48 |
|
DC OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
10A |
4.2A |
2.1A |
1.4A |
1.1A |
|
|
Current range |
0~10A |
0~4.2A |
0~2.1A |
0~1.4A |
0~1.1A |
|
|
Rated power |
50W |
50.4W |
50.4W |
50.4W |
52.8W |
|
|
Ripple&noise(max.) |
80mVp-p |
120mVp-p |
200mVp-p |
200mVp-p |
240mVp-p |
|
|
Voltage ADJ. range |
4.75~5.5V |
10.8~13.2V |
21.6~26.4V |
36~38V |
43.2~53V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Setup,Rise Time |
500ms，30ms/230VAC 1200ms,30ms/115VAC （full load） |
|||||
|
AC INPUT |
Hold up time (Typ) |
50ms/230VAC 10ms/115VAC （full load） |
||||
|
Voltage range |
100~264VAC 140~373VDC |
|||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
79% |
82% |
83% |
83% |
84% |
|
|
AC current (Typ) |
0.75A/115VAC 0.5A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start：15A/115VAC 25A/230VAC |
|||||
|
Leakage current |
<2mA/240VAC |
|||||
|

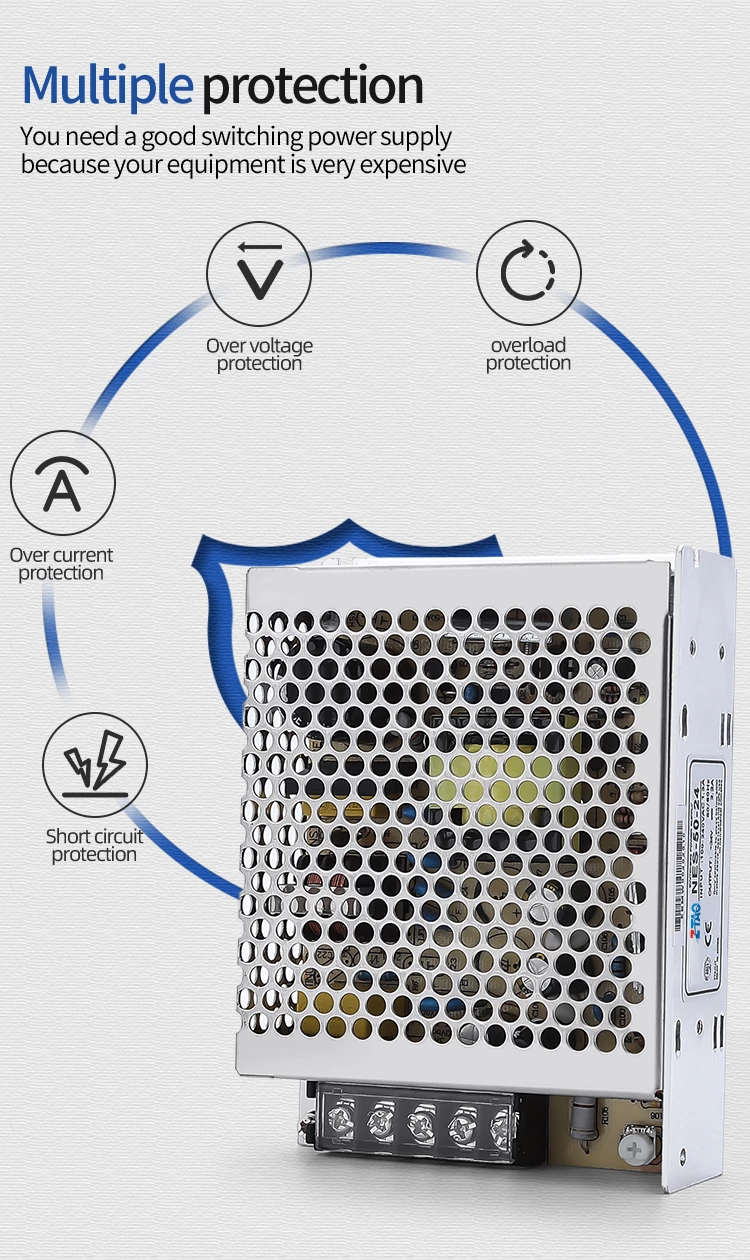

PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
5.75~6.75V |
13.8~16.2V |
27.6~32.4V |
37.2~38.6V |
55~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
ENVIRONMENT |
-10~+60℃ |
|||||
|
20~65% RH non-condensing |
||||||
|
Storage TEMP humidity |
-10~+60℃，10~95%RH |
|||||
|
TEMP coefficient |
±0.03%℃（0~50℃） |
|||||
|
Vibration |
10~500Hz，2G 10min/1 cycle . 60min Each along X,Y,Z axes, install accord with IEC60068-2-6 |
|||||
|
SAFETY |
Safety regulations |
UL60950-1，CB(IEC60950-1) In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032（CISPR32）CLASS B，EN61000-3-2，-3 EAC TP TC 020 |
|||||
|
EMC immunity |
Compliance to EN61000-4-2.3,4,5,6,8,11，EN55024，EN1000-6-1, Class A light industry standard |
|||||
|
OTHERS |
MRBF |
≥374K hrs.MIL-HDBK-217F（25℃） |
||||
|

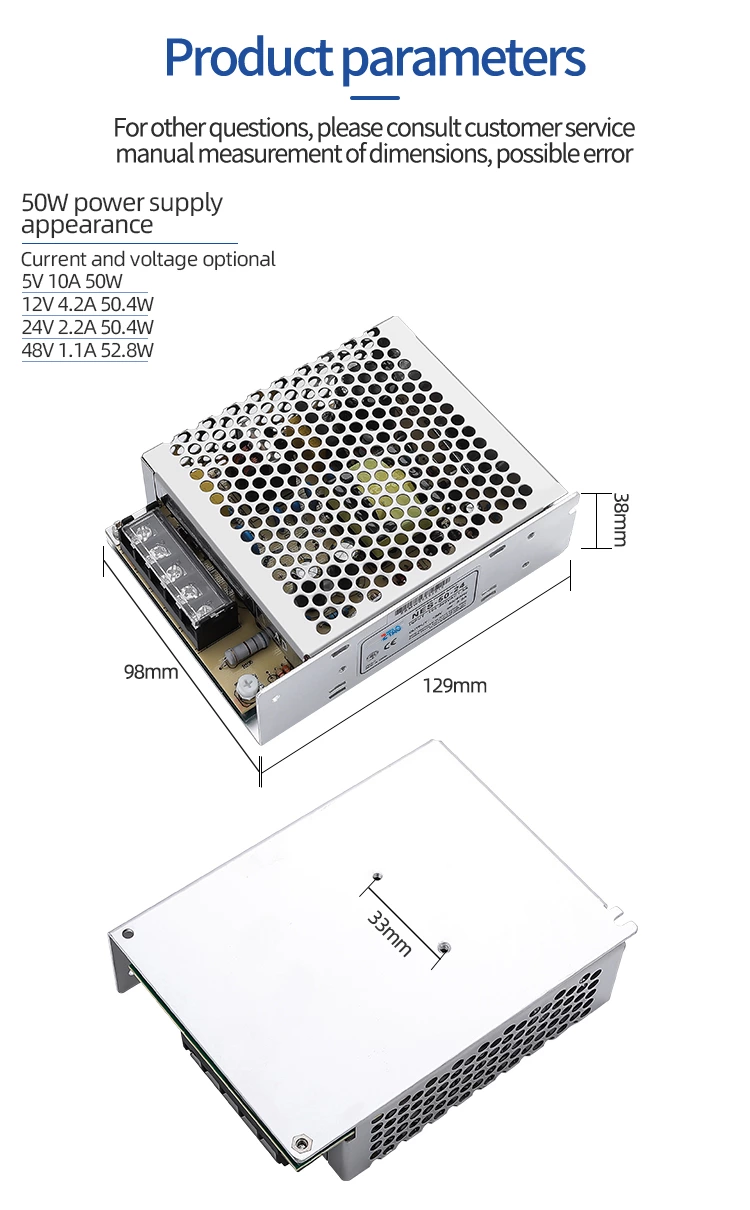

Dimension |
129*98*38mm（L*W*H） |
|||||
|
Packing |
0.4Kg：30PCS/13Kg/0.73CUFT |
|||||
