MODEL |
|
NES-350-5 |
NES-350-12 |
NES-350-24 |
NES-350-36 |
NES-350-48 |
|
DC OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
60A |
29A |
14.6A |
9.7A |
7.3A |
|
|
Current range |
0~60A |
0~29A |
0~14.6A |
0~9.7A |
0~7.3A |
|
|
Rated power |
300W |
348W |
350.4W |
349.2W |
350.4W |
|
|
Ripple&noise |
150mVp-p |
150mVp-p |
150mVp-p |
240mVp-p |
240mVp-p |
|
|

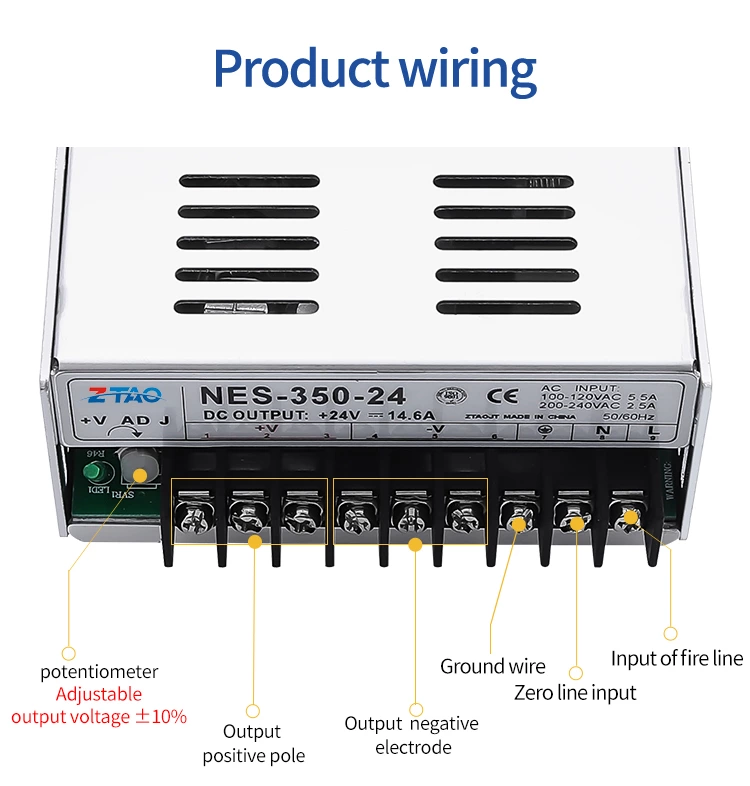

Voltage ADJ. range |
4.75~5.5V |
10.8~13.2V |
21.6~26.4V |
36~38V |
43.2~53V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Setup,Rise Time |
1000ms，50ms/230VAC 1000ms,50ms/115VAC （full load） |
|||||
|
AC INPUT |
Hold up time (Typ) |
20ms/230VAC 16ms/115VAC （full load） |
||||
|
Voltage range |

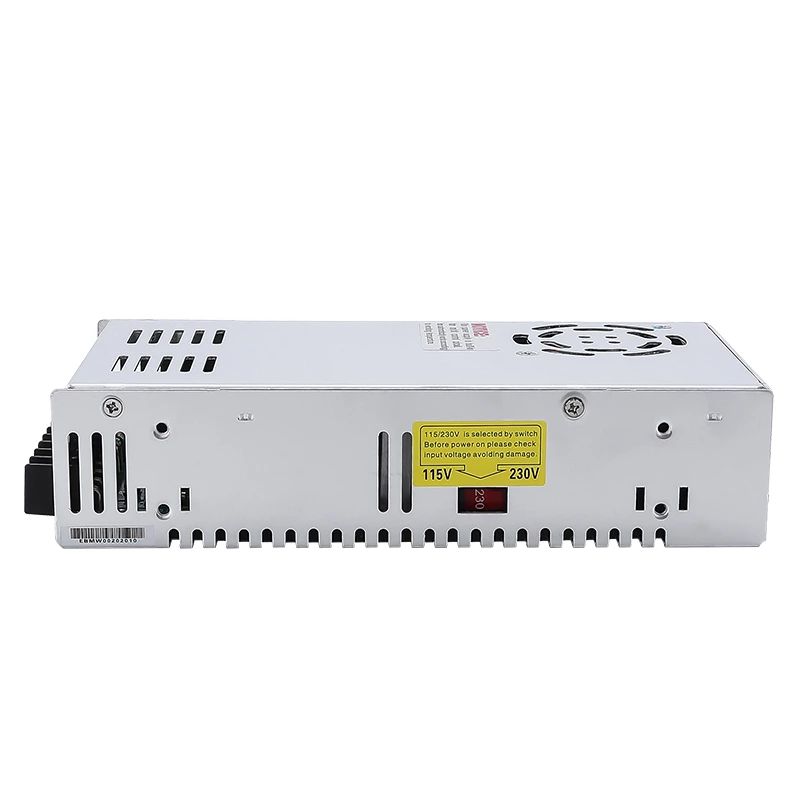

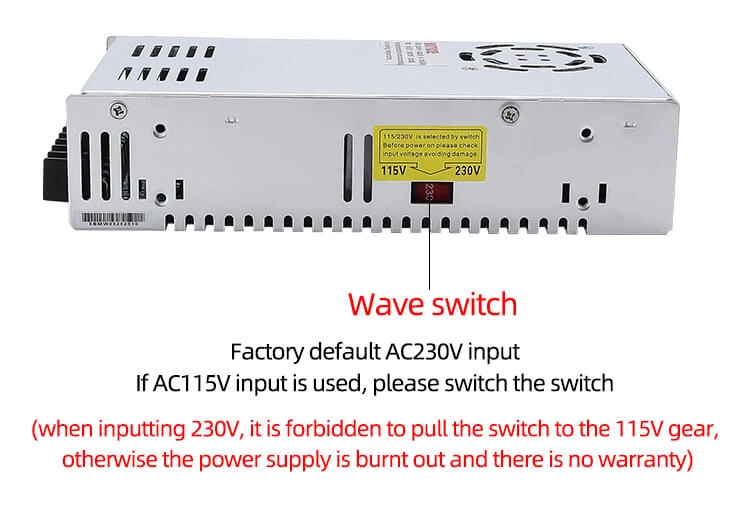

100～132VAC/185～264VAC 260～370VDC（switch on230VAC） |
|||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
78% |
83% |
86% |
87% |
87.5% |
|
|
AC current (Typ) |
7A/115VAC 4A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start：40A/115VAC 60A/230VAC |
|||||
|
Leakage current |
<3.5mA/240VAC |
|||||
|

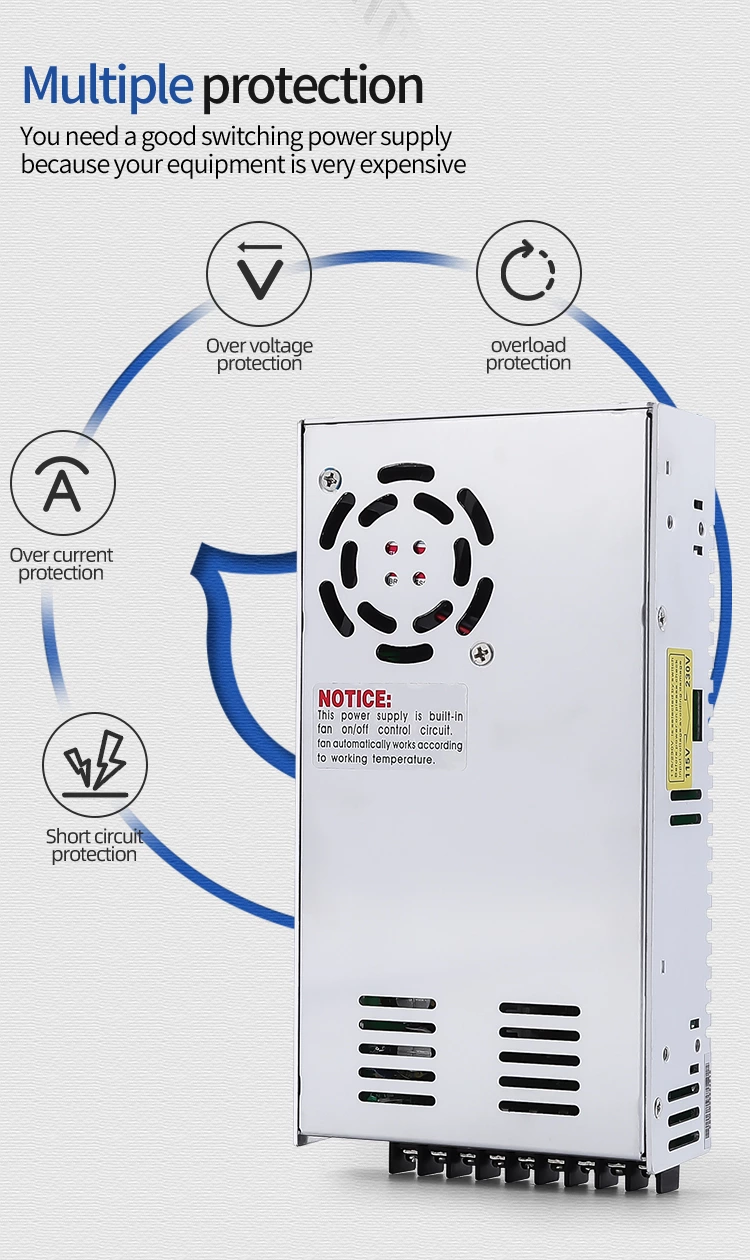

PROTECTION |
Over load |
105%~150% rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
5.75~6.75V |
13.8~16.2V |
27.6~32.4V |
37.2~38.6V |
55~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
-10~+60℃ |
||||||
|
20~65% RH non-condensing |
||||||
|
FUNCTION |

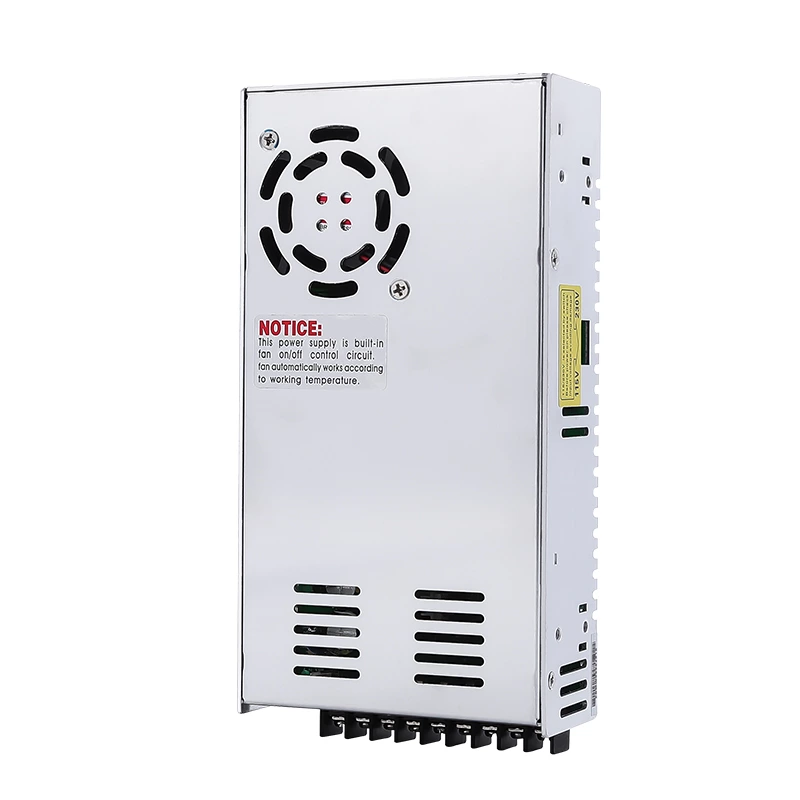

Fan switch control |
RTH2: ≥50℃ Open the fan, ≤45℃ Close the fan |
||||
|
RTH2: ≥50℃ Open the fan, ≤50℃ Close the fan |
||||||
|
ENVIRONMENT |
Storage TEMP humidity |
-10~+65℃，10~95%RH |
||||
|
TEMP coefficient |
±0.03%℃（0~50℃） |
|||||
|
Vibration |
10~500Hz，2G 10min./1 cycle . 60min Each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
UL60950-1，CB(IEC60950-1) In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032（CISPR32）CLASS B，EN61000-3-2,-3, EAC TP TC 020 |
|||||
|
EMC immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11，EN55024，EN1000-6-1, Class A light industry standard |
|||||
|
OTHERS |
MRBF |
≥234.3K hrs.MIL-HDBK-217F（25℃） |
||||
|
Dimension |

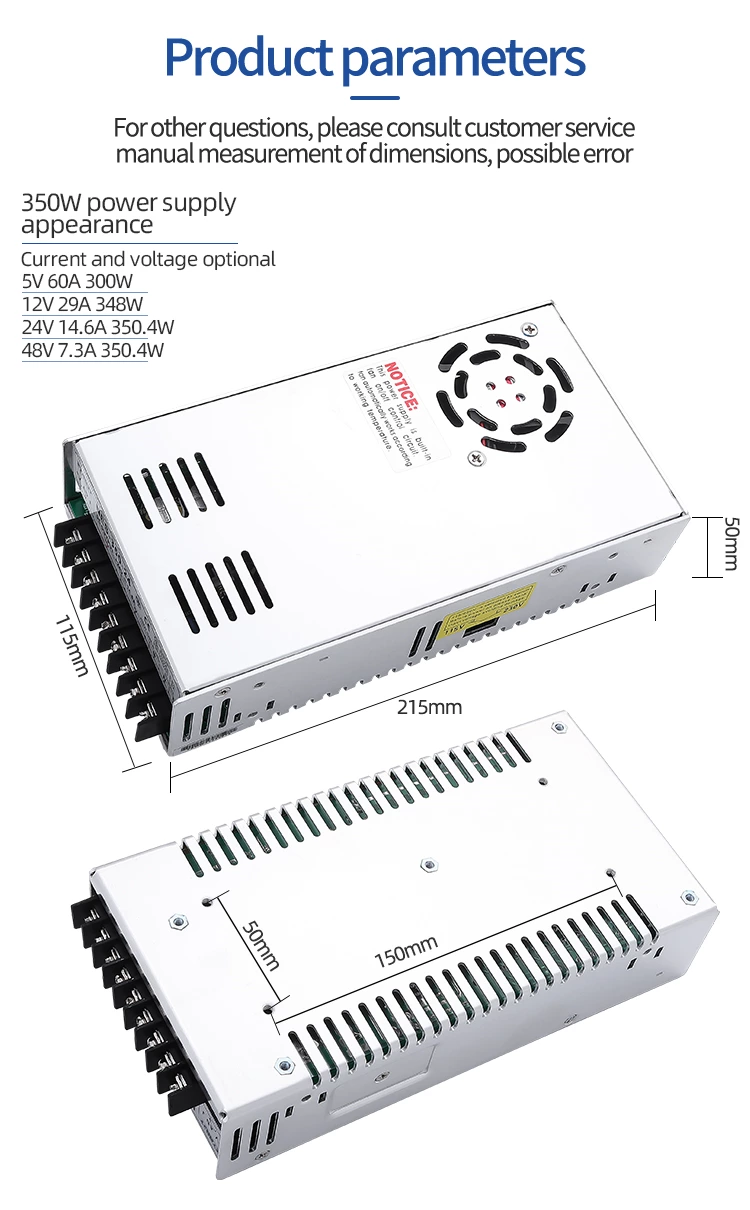

215*115*50mm（L*W*H） |
|||||
|
Packing |
1.0Kg：20PCS/21Kg/0.92CUFT |
|||||
