MODEL |
|
NDR-240-24 |
NDR-240-48 |
|
OUTPUT |
DC Voltage |
24V |
48V |
|
Rated Current |
10A |
5A |
|
|
Current range |
0~10A |
0~5A |
|
|
Rated power |
240W |
240W |
|
|
Ripple&noise(max.) |
150mVp-p |
80mVp-p |
|
|
Voltage ADJ. range |
24~28V |
48~55V |
|
|
Voltage tolerance |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
1500ms, 100ms/230VAC 3000ms，100ms/115VAC(full load) |
||
|
Hold up time(typ) |
28ms/230VAC 22ms/115VAC(full load) |
||
|
INPUT |
Voltage range |
100～264VAC 140～370VDC |
|
|
Frequency range |
50~60Hz |
||
|
Power factor |
PF>0.98/115VAC. PF>0.95/230VAC at full load |
||
|
Efficiency (Typ) |
88.2% |
90.2% |
|
|
AC current (Typ) |
2.5A/115VAC 1.3A/230VAC |
||
|
Inrush current (Typ) |
Cold start: 20A/115VAC 35A/230VAC |
||
|
Leakage current |
<1.5mA/240VAC |
||
|
PROTECTION |
Over load |
105%~150% in rated output power |
|
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over voltage |
29~33V |
56~65V |
|
|
Protected mode: turn off the output and restore the normal output after the power is restarted |
|||
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal |
|||
|
Environment |
Working TEMP |
-10℃~+60℃ |
|
|
Working humidity |
20%-90% RH non-condensing |
||
|
Storage TEMP humidity |
-20℃~+75℃. 10%~95% RH |
||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes. Install conform to IEC60068-2-6 |
||
|
SAFETY |
Safety regulations |
CE FCC ROHS Certified UL508, UL60950-1 TUV EN60950-1,EAC TPTC 004, In line with the certification |
|
|
Withstand voltage |
I/P-O/P:1.2KVAC I/P-FG:1.2KVA O/P-FG:0.5KVAC |
||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032 (CISPR32), Class B, EN61000-3-2,-3, EAC TP TC 020 |
||
|
Compliance.to.EN61000-4-2.3.4.5,6,8,11,EN55024. EN1000-6-2. (EN50082-2) Class A heavy industry standard EAC TP TC 020 |
|||
|
OTHERS |
MTBF |
≥230.2K hrs.MIL-HDBK-217F(25℃) |
|
|

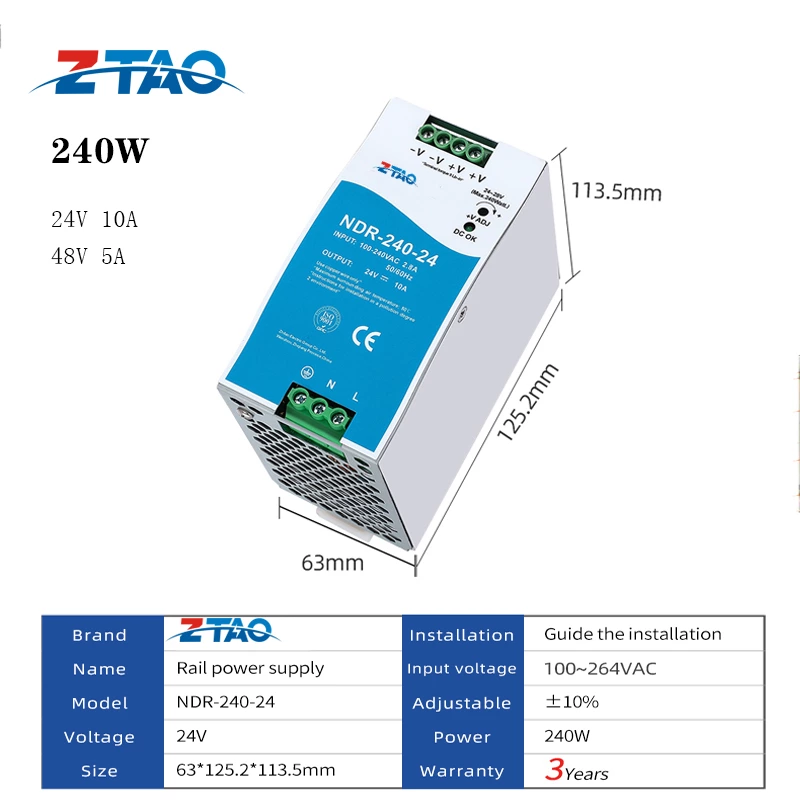

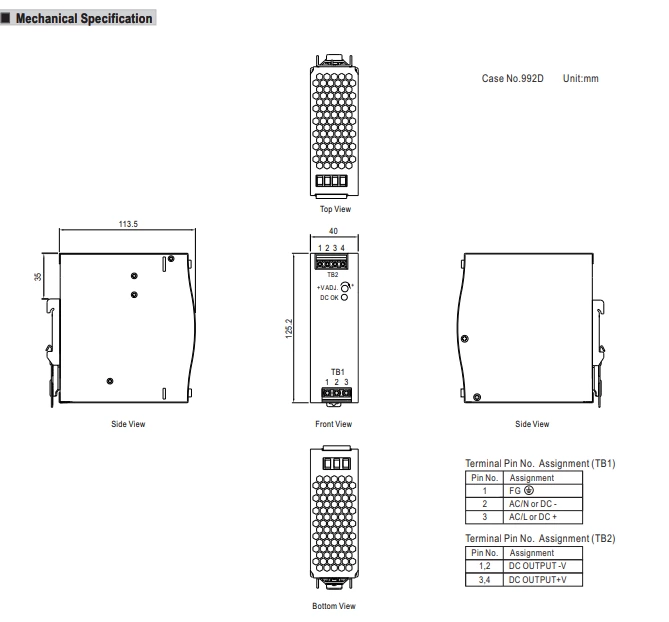

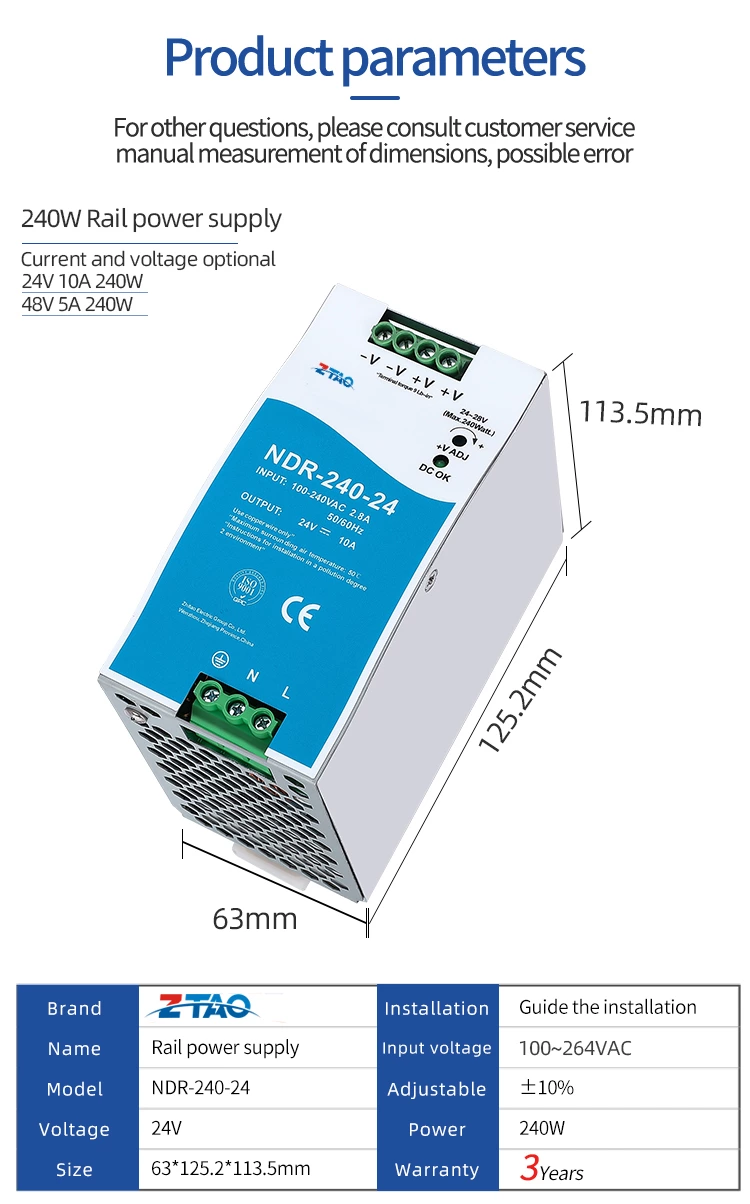

Dimension |
63*125.2*113.5mm(W*H*D) |
||
|
Packing |
1.1Kg:12PCS/13Kg 1.1CUFT |
||
