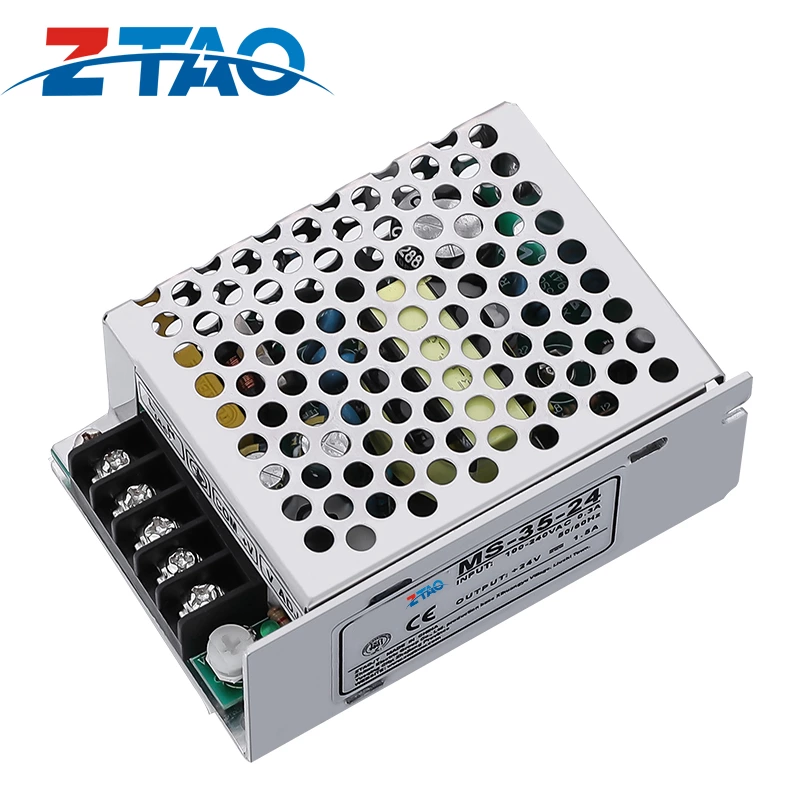

MODEL |
|
MS-35-5 |
MS-35-12 |
MS-35-15 |
MS-35-24 |
MS-35-36 |
MS-35-48 |
|
DC OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
6A |
3A |
2.4A |
1.5A |
1A |
0.75A |
|
|
Current range |
0~6A |
0~3A |
0~2.4A |
0~1.5A |
0~1A |
0~0.75A |
|
|
Rated power |
30W |
36W |
36W |
36W |
36W |
36W |
|
|
Ripple&noise |
100mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
240mVp-p |
|
|

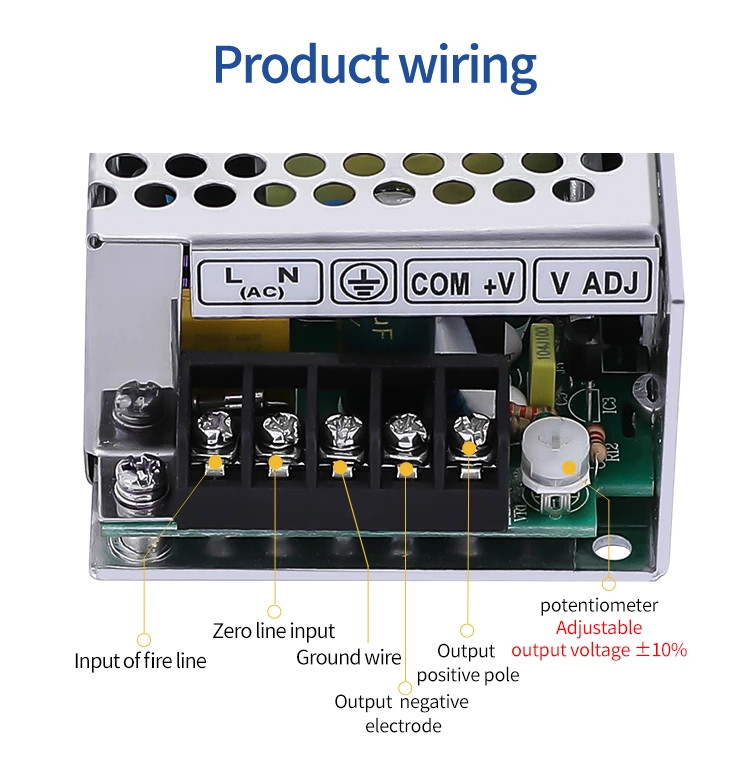

Voltage ADJ. range |
4.5~5.5V |
10.2~13.8V |
13.5~18V |
24~28V |
32.4~39.6V |
43.2~52.8V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±0.5% |
±1.0% |
±0.5% |
±0.5% |
|
|
Setup,Rise Time |
1000ms，30ms/230VAC 1000ms,30ms/115VAC （full load） |
||||||
|
AC INPUT |
Hold up time (Typ) |
30ms/230VAC 12ms/115VAC （full load） |
|||||
|
Voltage range |
100~264VAC 140~373VDC |
||||||
|
Frequency range |
50~60Hz |
||||||
|
Efficiency (Typ) |
75% |
80% |
81% |
84% |
85% |
85% |
|
|
AC current (Typ) |
0.2A/100~264VAC |
||||||
|
Inrush current (Typ) |
Cold start：35A/230VAC |
||||||
|
Leakage current |
<2mA/240VAC |
||||||
|

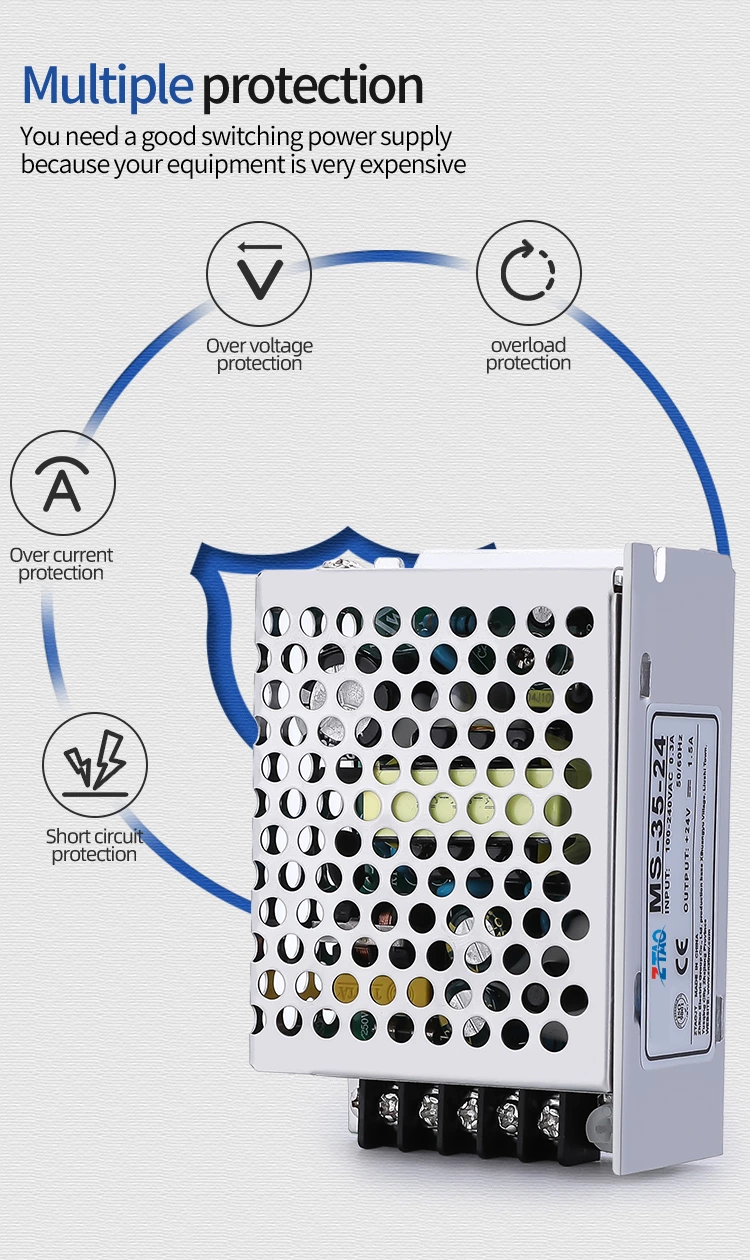

PROTECTION |
Over load |
115%~150% in rated output power |
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
18.75~21.75V |
28.8~33.6V |
41.4~48.6V |
55.2~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
|||||||
|
ENVIRONMENT |
operating TEMP |
-10~+60℃ |
|||||
|
20~65%RH non-condensing |
|||||||
|
Storage TEMP humidity |
-10~+60℃，10~95%RH |
||||||
|
TEMP coefficient |
±0.03%℃（0~50℃） |
||||||
|
Vibration |
10~500Hz，5G 10min/cycle 60min Each along X,Y,Z axes |
||||||
|
SAFETY |
Safety regulations |
UL60950-1，TUV EN60750-1 In line with the certification |
|||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC |
||||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG :100M Ohms/500VDC |
||||||
|
Electromagnetic compatible emission |
Compliance to EN55032（CISPR32）CLASS B，EN61000-3-2，-3 EAC TP TC 020 |
||||||
|
EMC immunity
|
Compliance to EN61000-4-2,3,4,5,6,8,11，EN55024，EN1000-6-1 |
||||||
|
OTHERS |

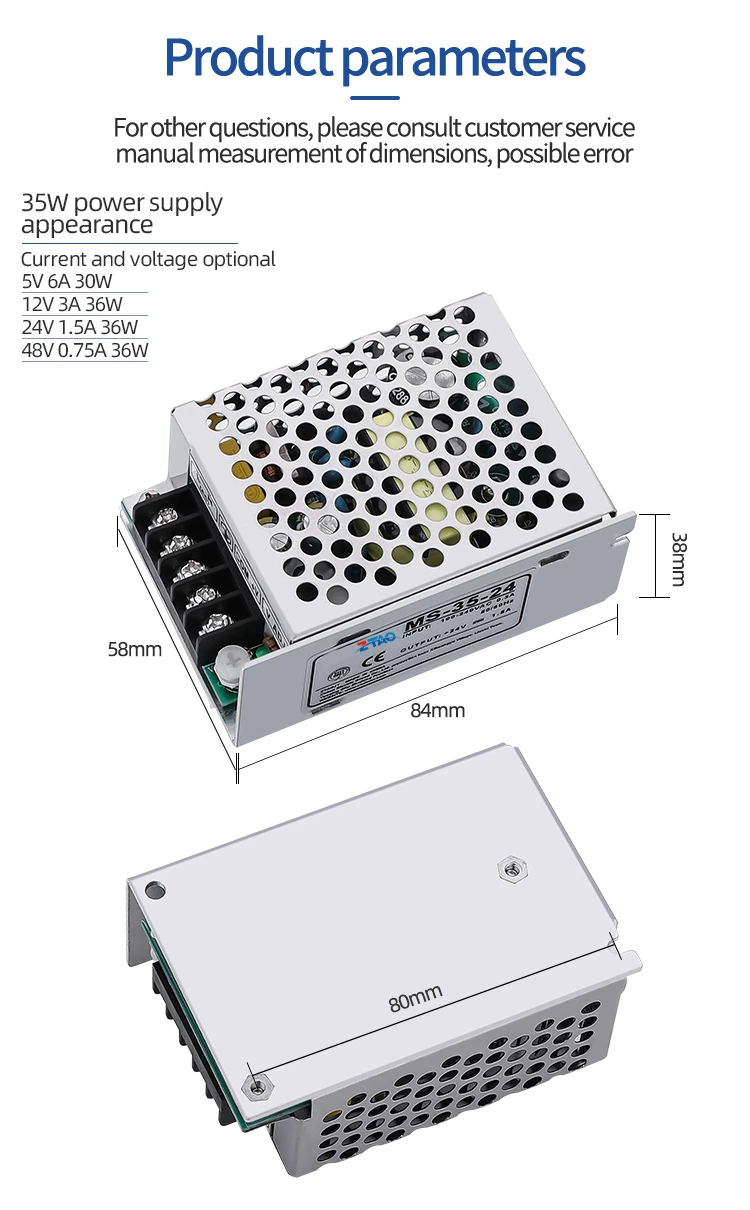

Dimension |
84*58*38mm（L*W*H） |
|||||
|
Packing |
0.15Kg：50PCS/10Kg/0.185CUFT |
||||||
