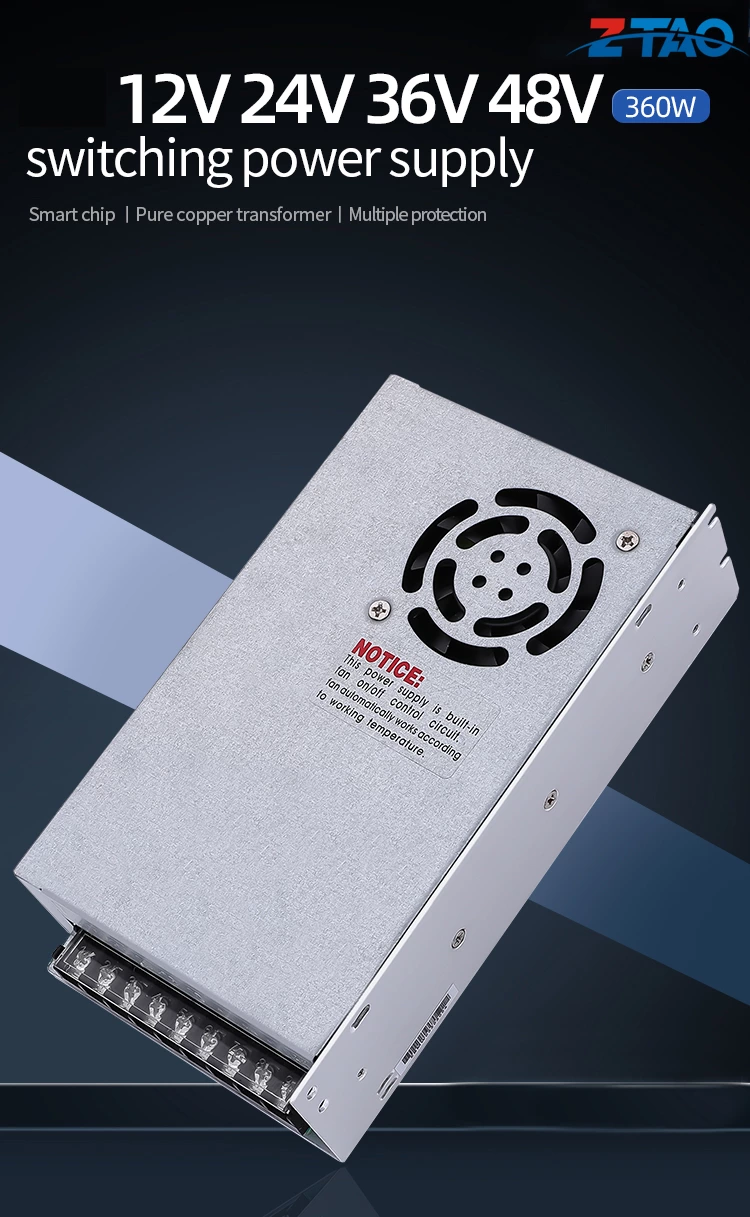

MODEL |
|
MS-360-12 |
MS-360-24 |
MS-360-36 |
MS-360-48 |
|
|
DC OUTPUT |
DC Voltage |
12V |
24V |
36V |
48V |
|
|
|
Rated Current |
30A |
15A |
10A |
7.5A |
|
|
|
Current range |
0~30A |
0~15A |
0~10A |
0~7.5A |
|
|
|
Rated power |
360W |
360W |
360W |
360W |
|
|
|
Ripple&noise(max.) |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
|
Voltage ADJ. range |
12~14V |
24~28V |
36~38V |
48~53V |
|
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
|
Setup,Rise Time |
200ms，50ms/230VAC 200ms，50ms/115VAC （full load） |
||||
|
AC INPUT |
Hold up time (Typ) |
20ms/230VAC 20ms/115VAC （full load） |
||||
|
|
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC） |
||||
|
|
Frequency range |
50~60Hz |
||||
|
|
Efficiency (Typ) |
82% |
83% |
85% |
85% |
|
|
|
AC current (Typ) |
4.5A/115VAC 2.5A/230VAC |
||||
|
|
Inrush current (Typ) |
Cold start :50A/230VAC |
||||
|
|
Leakage current |
<3.5mA/240VAC |
||||
|

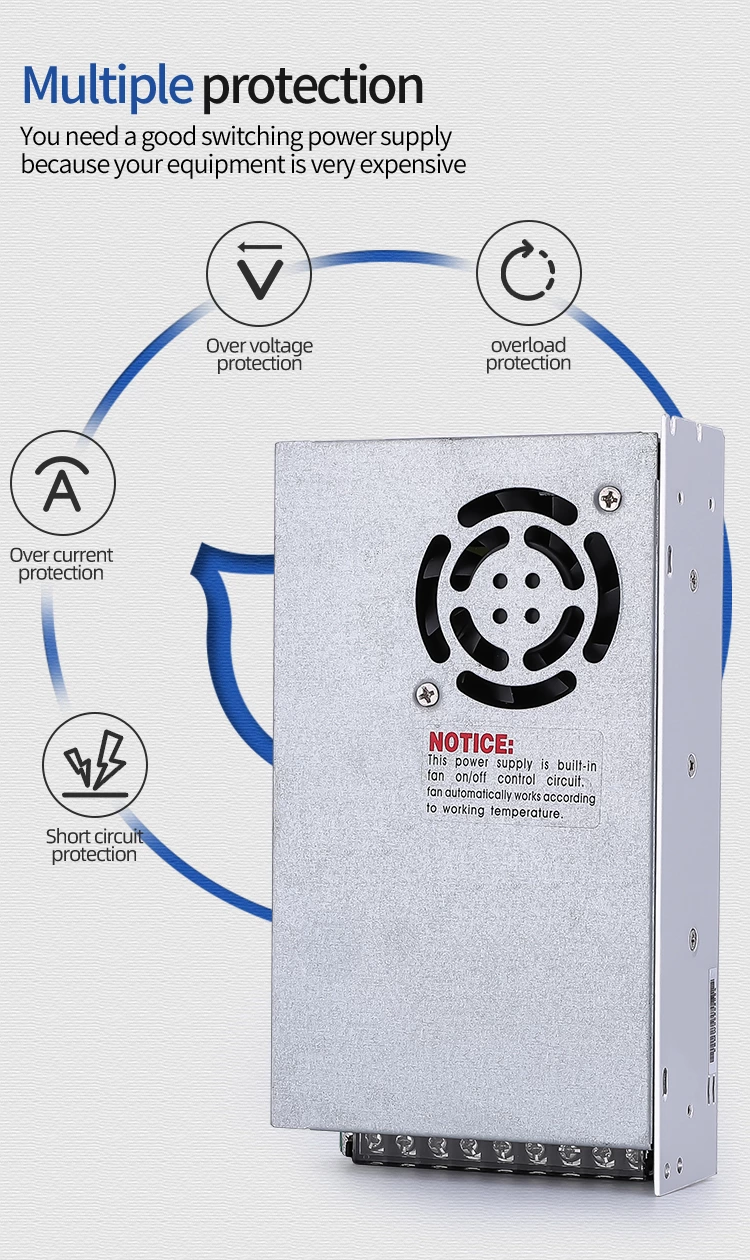

PROTECTION |
Over load |
115%~150% in rated output power |
||||
|
|
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
|
Over voltage |
15~16.5V |
29~33V |
40~45V |
58~65V |
|
|
|
|
Protection mode, tum off output voltage, restart to recover |
||||
|
FUNCTION |

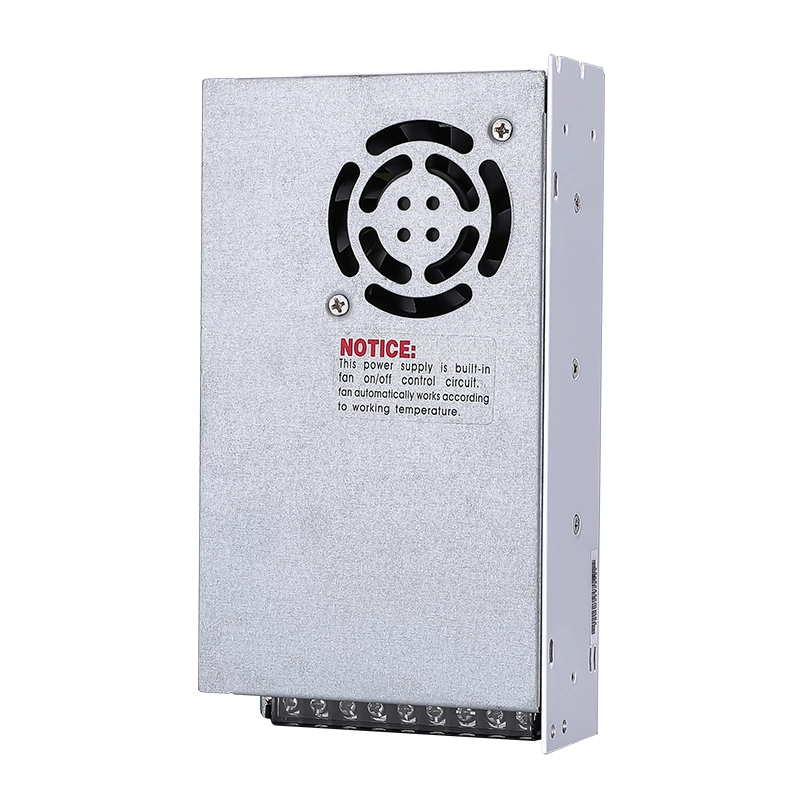

Fan switch control |
Fan temperature control |
||||
|
|
|
|||||
|
ENVIRONMENT |
-10~+60℃ |
|||||
|
|
20~65%RH non-condensing |
|||||
|
|
Storage TEMP humidity |
-10~+65℃，10~95%RH |
||||
|
|
TEMP coefficient |
±0.03%℃（0~50℃） |
||||
|
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install in accordance with IEC60068-2-6 |
||||
|
SAFETY |
Safety regulations |
Ul60950-1,CB(IEC60950-1) are certified |
||||
|
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
||||
|
OTHERS |

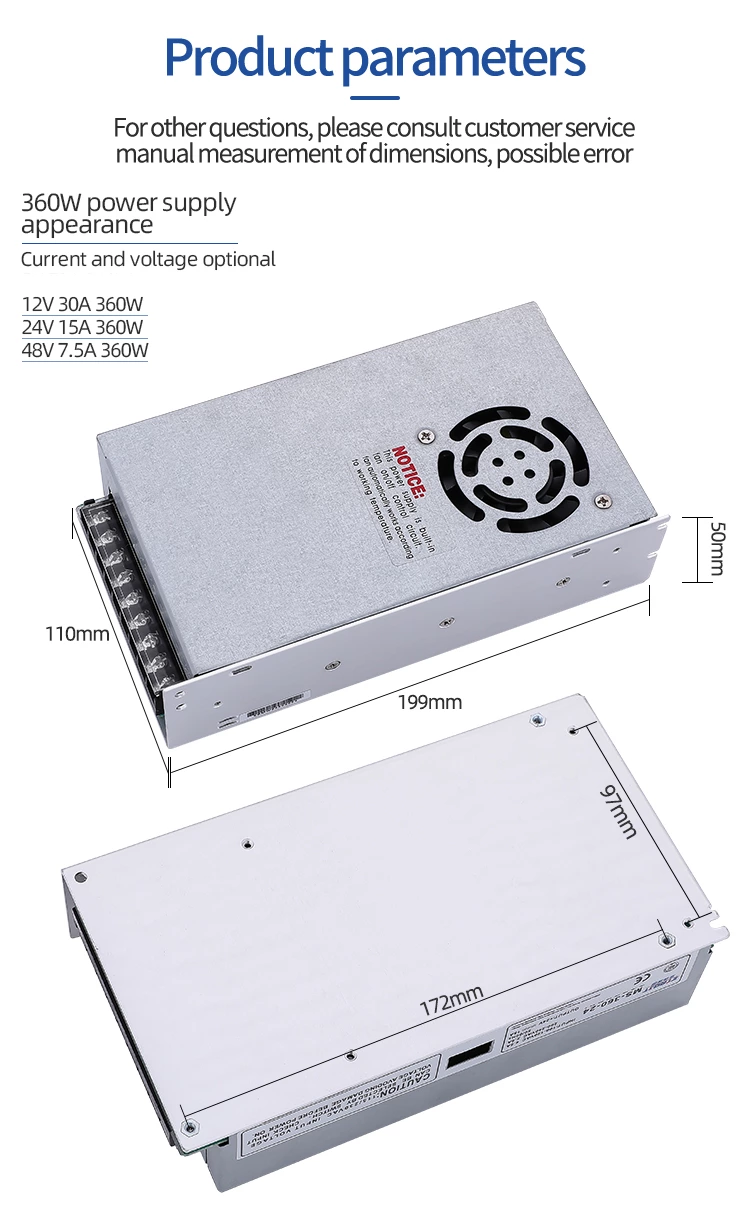

Dimension |
199*110*50mm（L*W*H） |
||||
|
|
Packing |
1Kg:20PCS/22Kg/1CUFT |
||||
