MODEL |
|
MS-15-5 |
MS-15-12 |
MS-15-24 |
MS-15-48 |
|
OUTPUTV |
DC Voltage |
5V |
12V |
24V |
48V |
|
Rated Current |
3A |
1.25A |
0.63A |
0.32A |
|
|
Current range |
0~3A |
0~1.25A |
0~0.63A |
0~0.32A |
|
|
Rated power |
15W |
15W |
15.12W |
15.36W |
|
|
Ripple&noise |
80mVp-p |
100mVp-p |
120mVp-p |
150mVp-p |
|
|
Voltage ADJ. |
4.5~5.5V |
10.2~13.8V |
24~28V |
43.2V-52.8V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
1000ms, 30ms/230VAC 1000ms，30ms/115VAC(full load) |
||||
|
Hold up time(TYP) |
30ms/230VAC 12ms/115VAC(full load) |
||||
|
INPUT |
Voltage range |
100~264VAC or 140~373VDC |
|||
|
Frequency range |
50~60Hz |
||||
|
Efficiency(Typ) |
75% |
78% |
80% |
82% |
|
|
AC current(Typ) |
0.9A/100~264VAC |
||||
|
Inrush current(Typ) |
Cold start 30A/230VAC |
||||
|
Leakage current |
<0.9mA240VAC |
||||
|
PROTECTION |
Over load |
105%~150% in rated output power |
|||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
28.8~33.6V |
55.2~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
|||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
|||
|
Working humidity |
20~65%RH non-condensing |
||||
|
Storage TEMP humidity |
-10~+60℃，10~95%RH |
||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
||||
|
Vibration |
10~500Hz，5G 10min./1cycle,60min each along X,Y,Z axes |
||||
|
SAFETY |
Safety regulations |
,UL60950-1,TUV EN60750-1,In line with the certification |
|||
|
Withstand voltage |
I/P-0/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC |
||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
||||
|
Electromagnetic compatible emission |
Compliance to EN55032(CISPR32)CLASS B, EN61000-3-2,3,EAC TP TC 020 |
||||
|
EMC Immunity |
Compliance to EN61000-4-2, 3.4.5.6.8.11, EN55024.EN1000-6-1Class A heavy industry standard |
||||
|
OTHERS |
MTBF |
≥760K hrs.MIL-HDBK-217F(25℃) |
|||
|

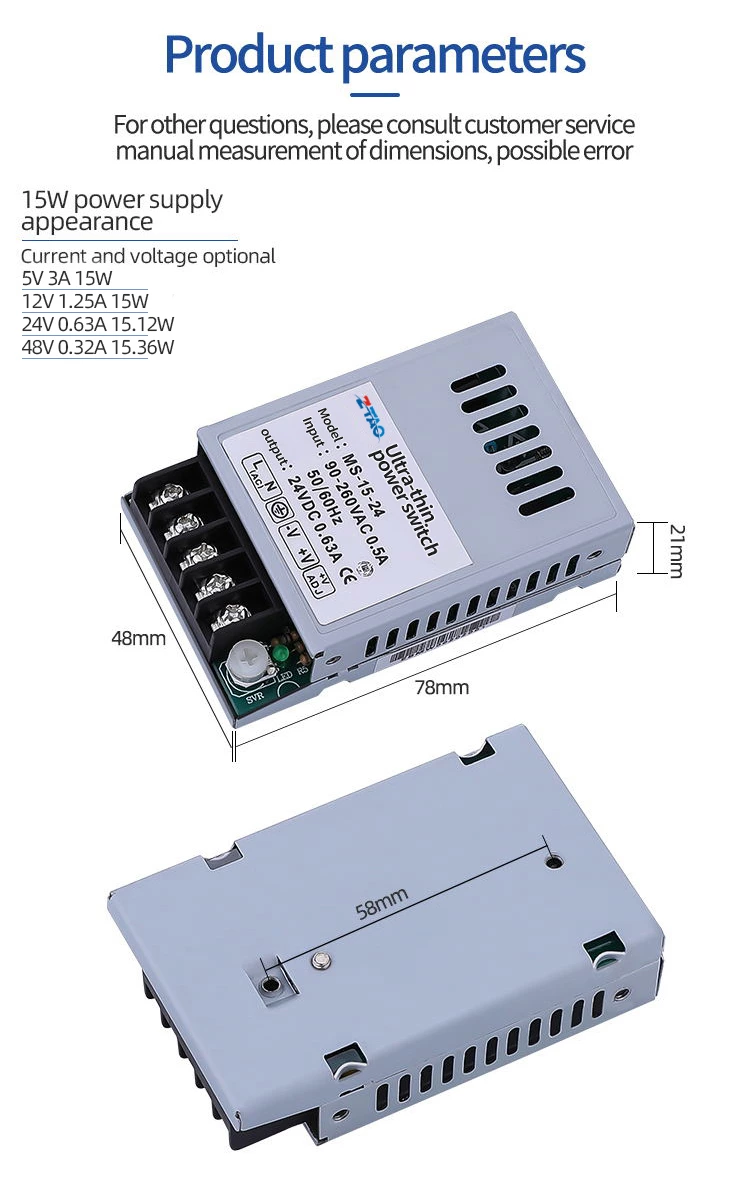

Dimension |
78*48*21mm(L*W*H) |
||||
|
Packing |
0.3Kg:60PCS/19Kg/0.34CUFT |
||||
