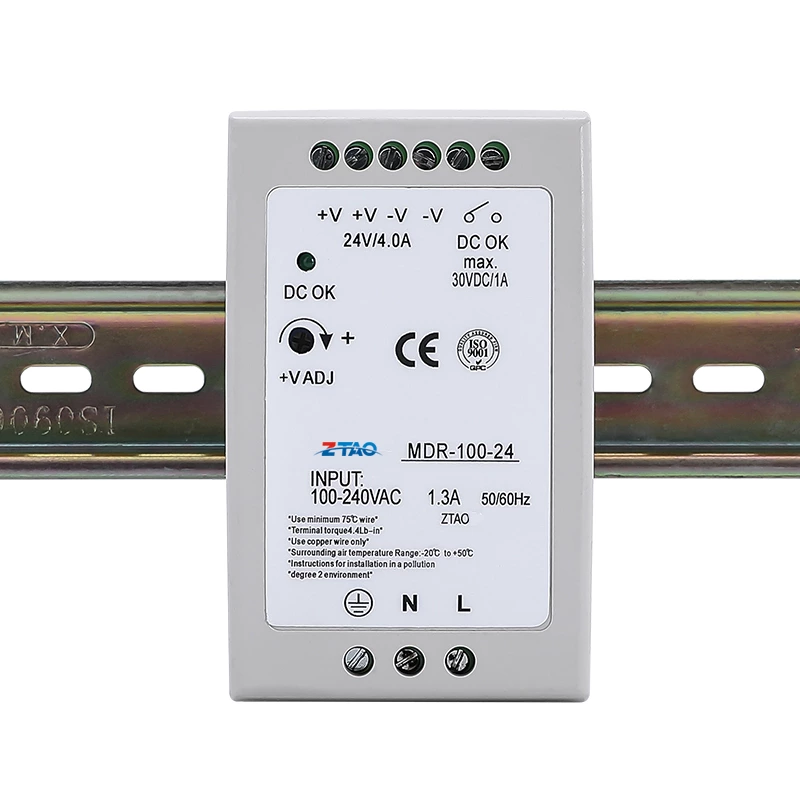

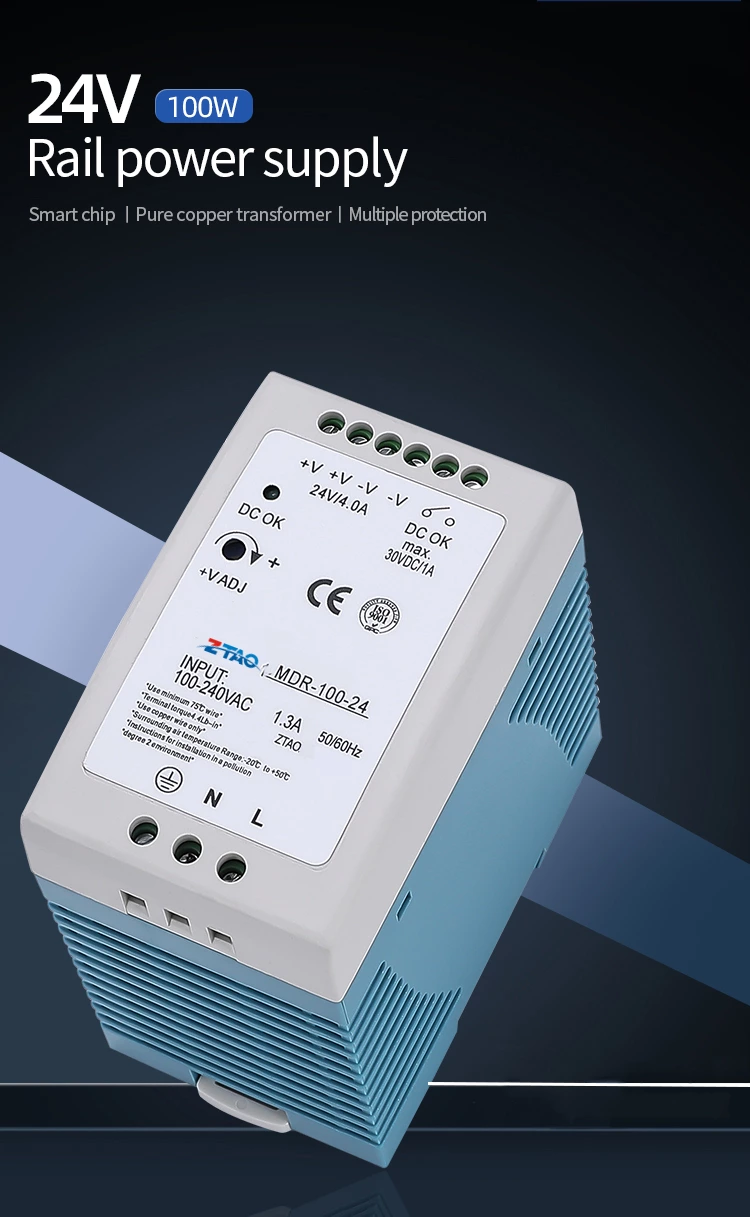

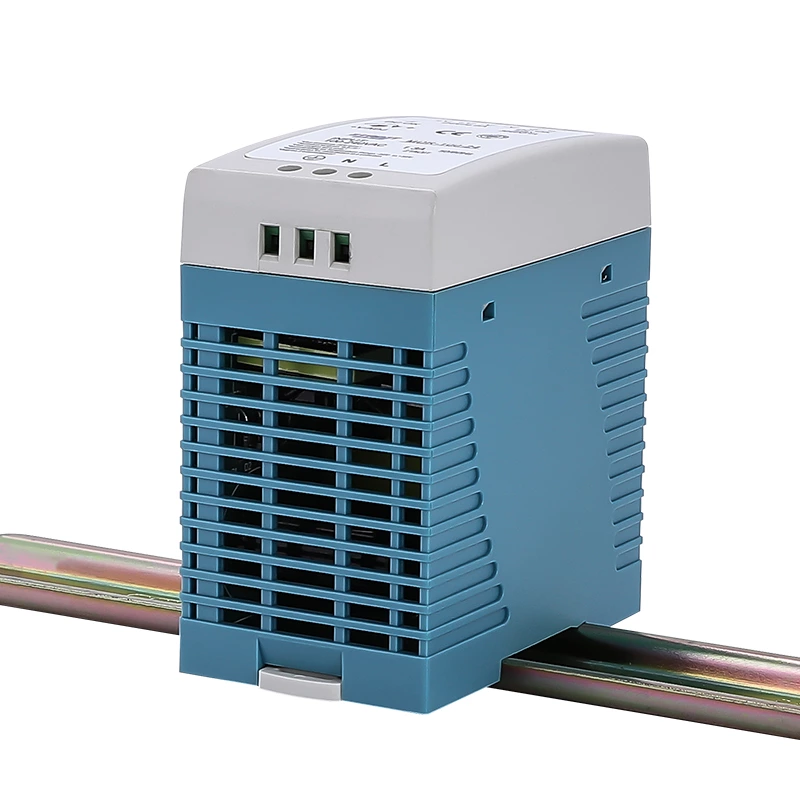

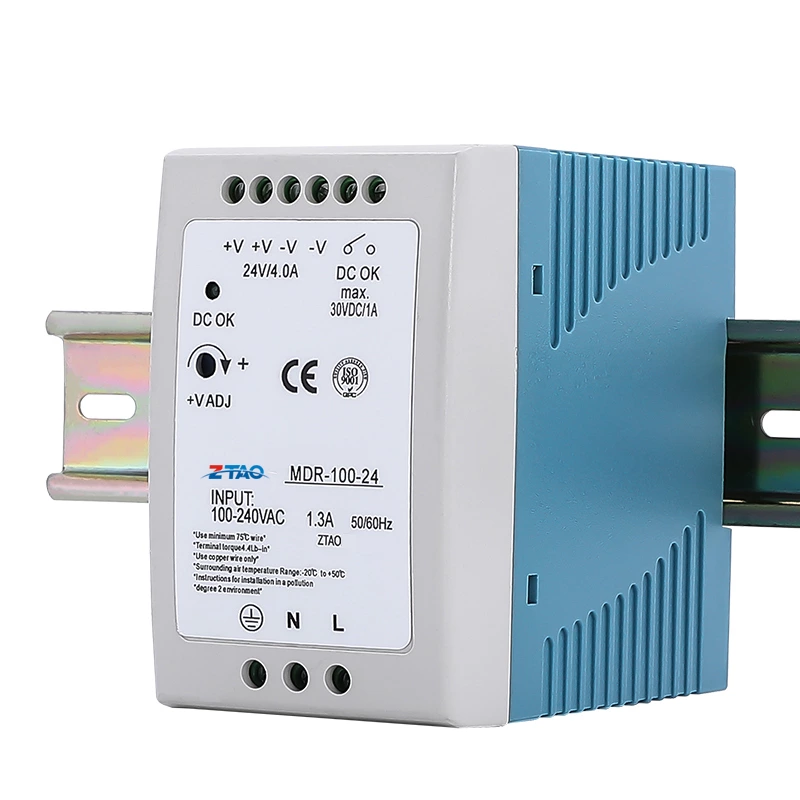

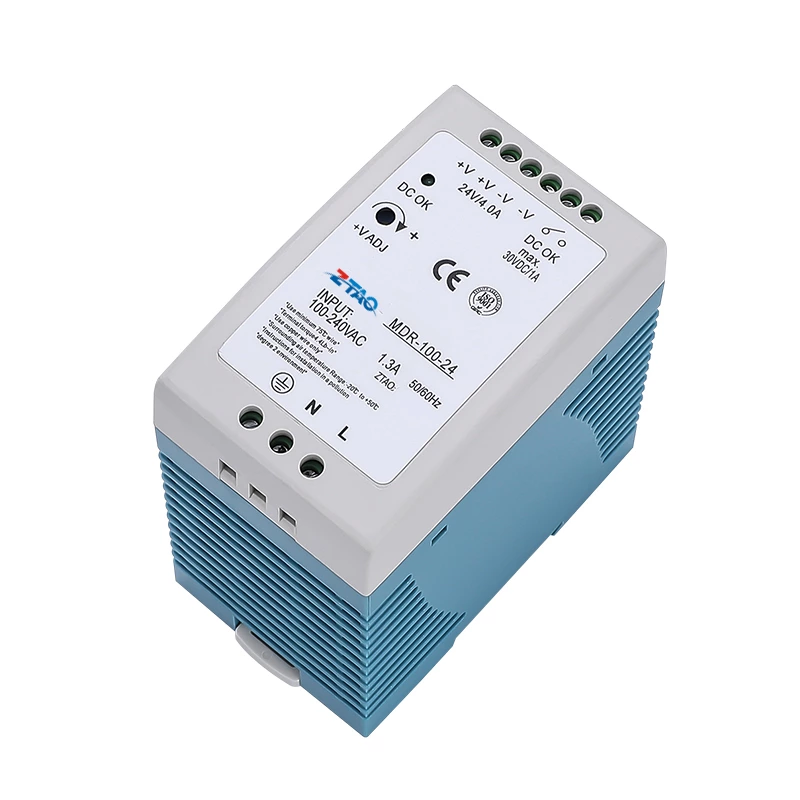

MODEL |
|
MDR-100-12 |
MDR-100-24 |
MDR-100-48 |
||
|
OUTPUT |
DC Voltage |
12V |
24V |
48V |
||
|
Rated Current |
7.5A |
4A |
2A |
|||
|
Current range |
0~7.5A |
0~4A |
0~2A |
|||
|
Rated power |
90W |
96W |
96W |
|||
|
Ripple&noise |
120mVp-p |
150mVp-p |
200mVp-p |
|||
|
Voltage ADJ. range |
12~14V |
24~28V |
48~53V |
|||
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
|||
|
Line regulation |
±1.0% |
±1.0% |
±1.0% |
|||
|
Load regulation |
±1.5% |
±1.0% |
±1.0% |
|||
|
Setup,Rise,Time |
3000ms, 50ms/230VAC 3000ms，50ms/115VAC(full load) |
|||||
|
Hold up time(typ) |
50ms/230VAC 22ms/115VAC(full load) |
|||||
|

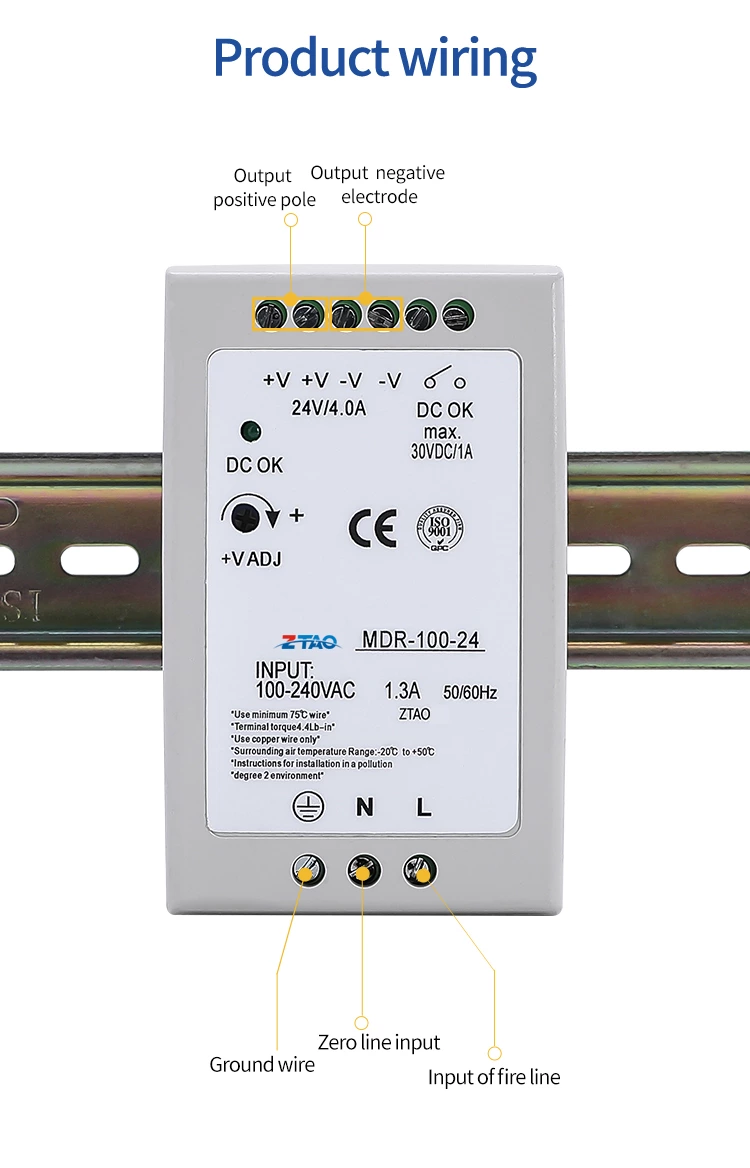

INPUT |
Voltage range |
|
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
82% |
84% |
85% |
|||
|
AC current (Typ) |
1.3A/115VAC 0.8A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start: 30A/115VAC 60A/230VAC |
|||||
|
Leakage current |
<1mA/240VAC |
|||||
|

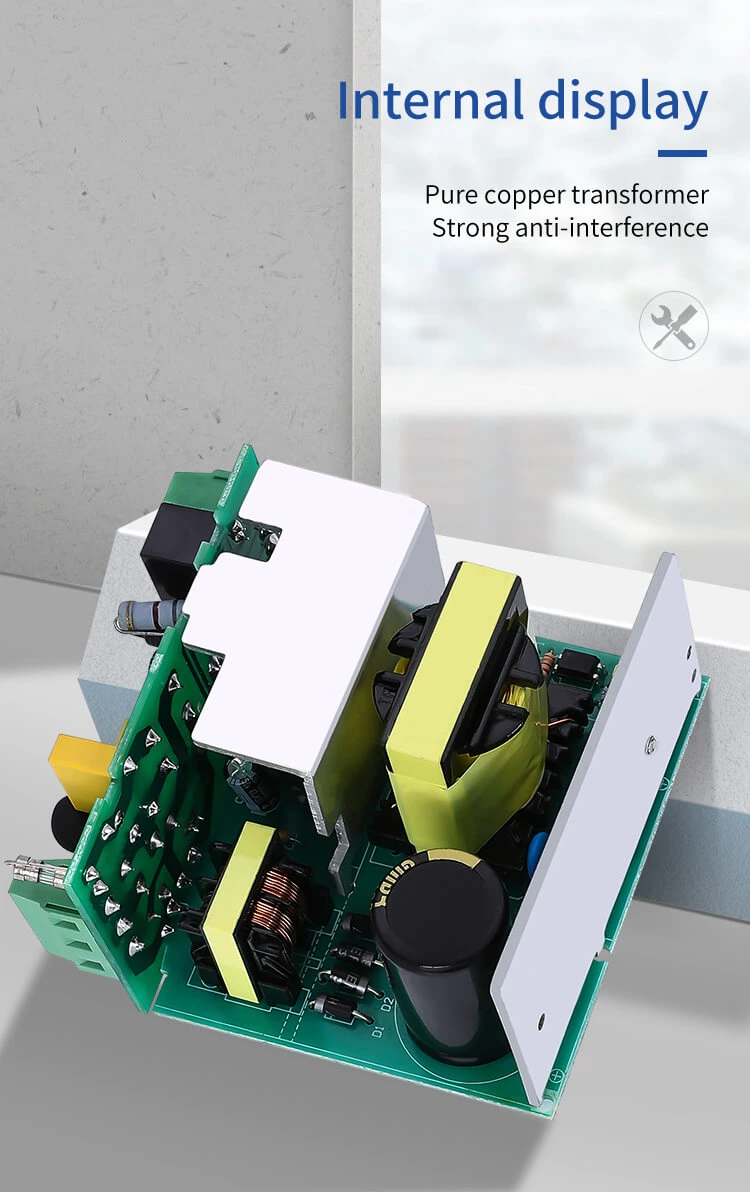

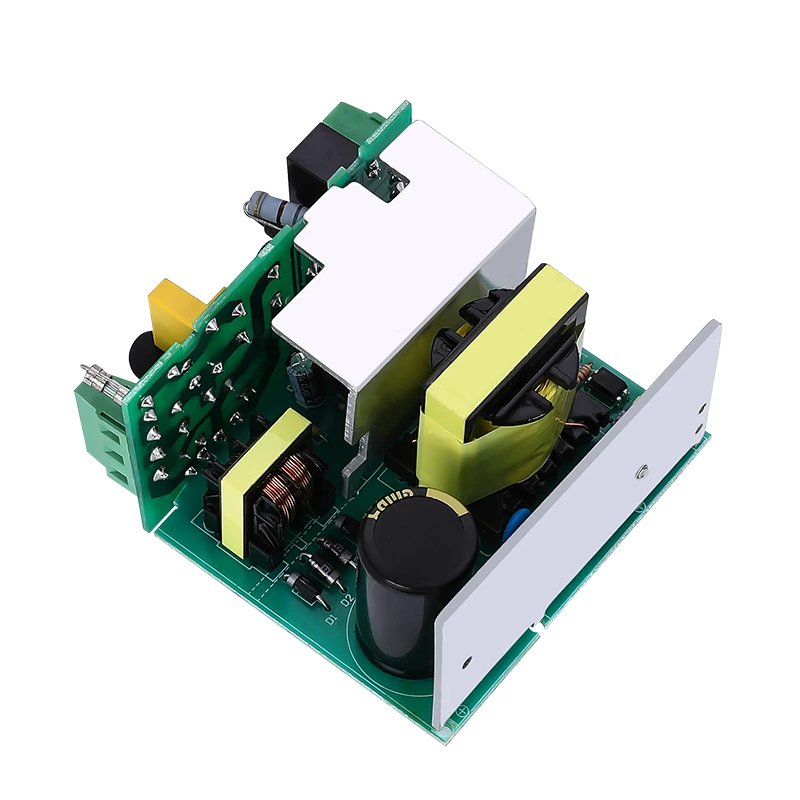

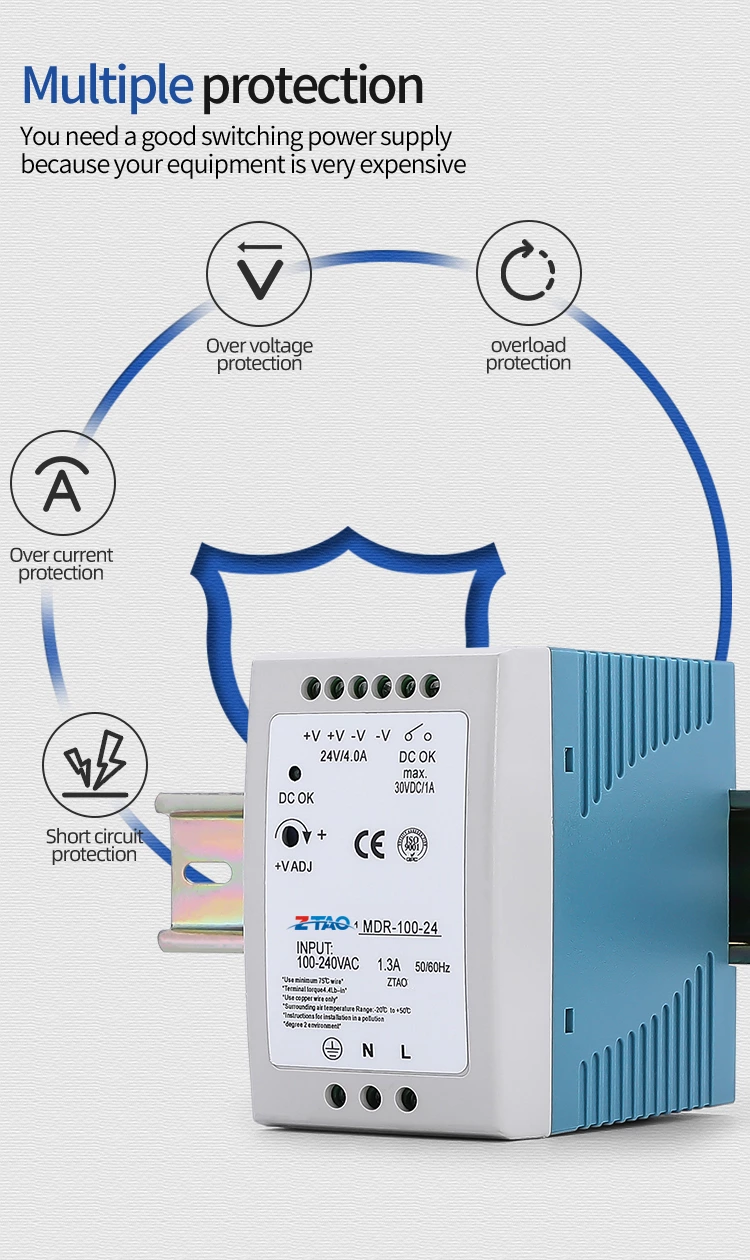

PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
||||||
|
Over voltage |
15~18V |
31~36V |
58~65V |
|||
|
Protected mode: turn off the output and restore the normal output after the power is restarted |
||||||
|
85℃±5℃（TSW1） |
90℃±5℃（TSW1） |
90℃±5℃（TSW1） |
||||
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal |
||||||
|
FUNCTION |
DC OK The signal value |
Relay contact (Max): 30V/1A resistive load |
||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20%-90% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+60℃. 10%~95% RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes .Install conform to IEC60068-2-6 |
|||||
|
SAFETY |
Safety regulations |
UL508, UL60950-1,TUV EN60950-1 EAC TPTC 004 In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032 (CISPR32),CLASS B, EN61000-3 -2 .-3. EAC TP TC 020 |
|||||
|
Compliance to EN61000-4-2.3.4.5,6,8,11,EN55024. EN1000-6-2. (EN50082-2) Class A heavy industry standard |
||||||
|
OTHERS |
MTBF |
≥301.7K hrs.MIL-HDBK-217F(25℃) |
||||
|

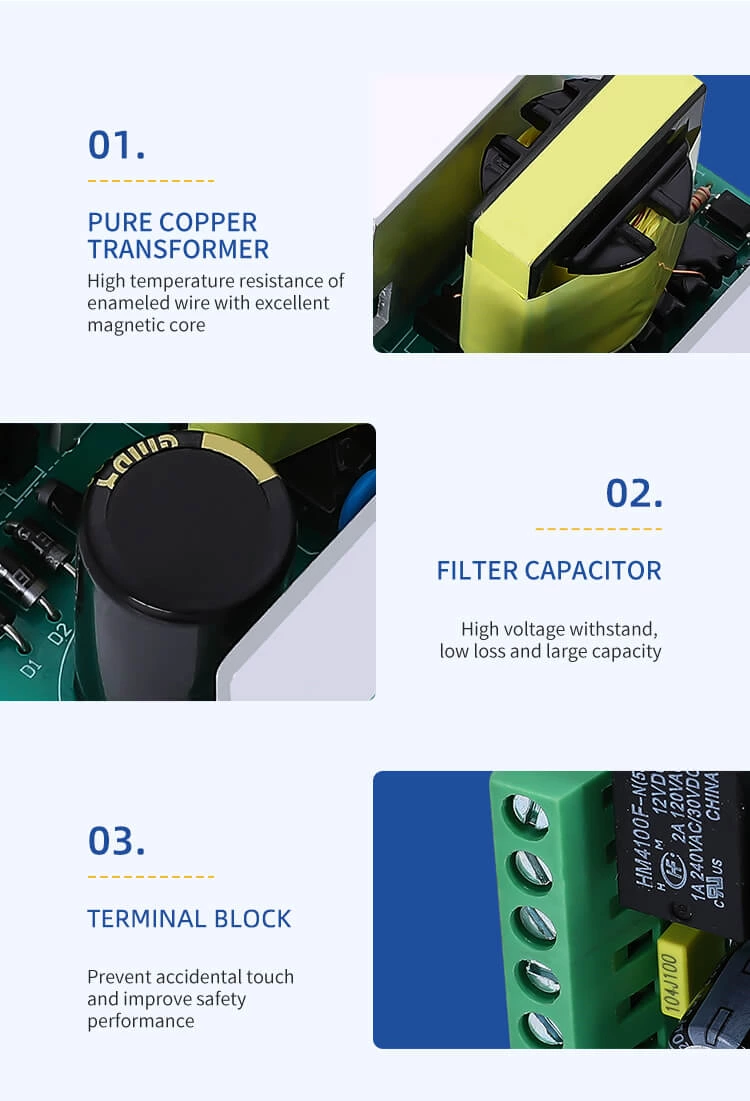

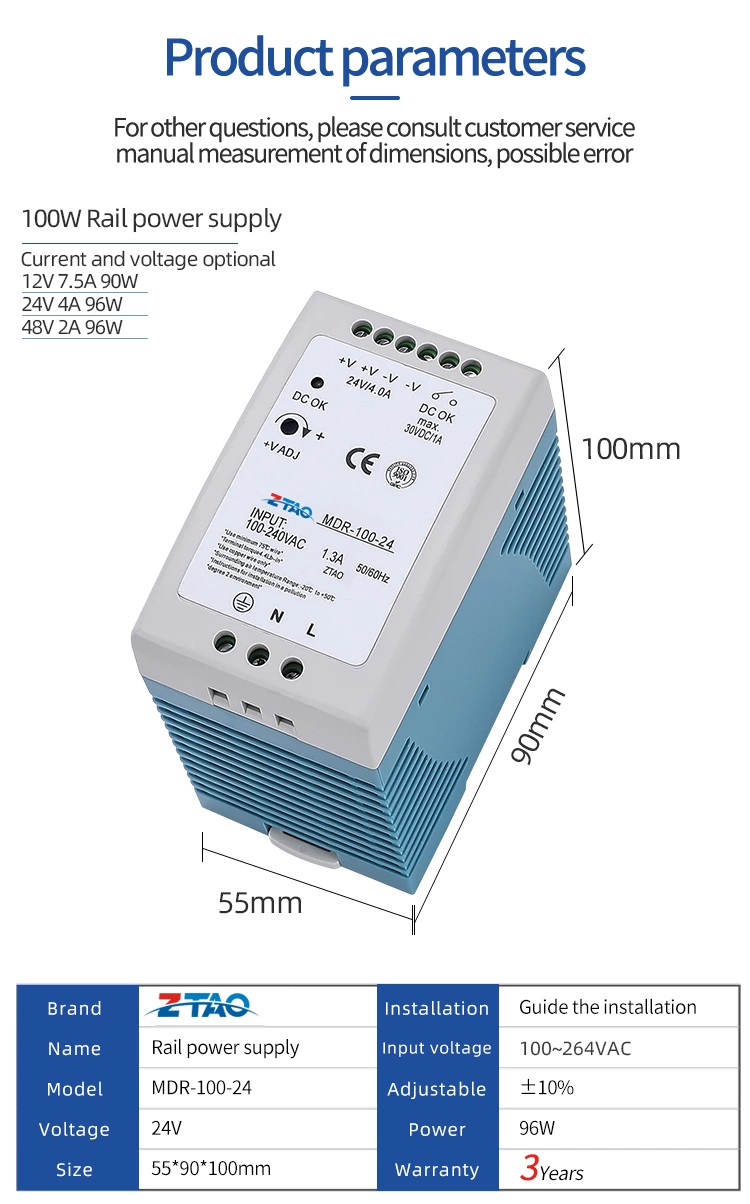

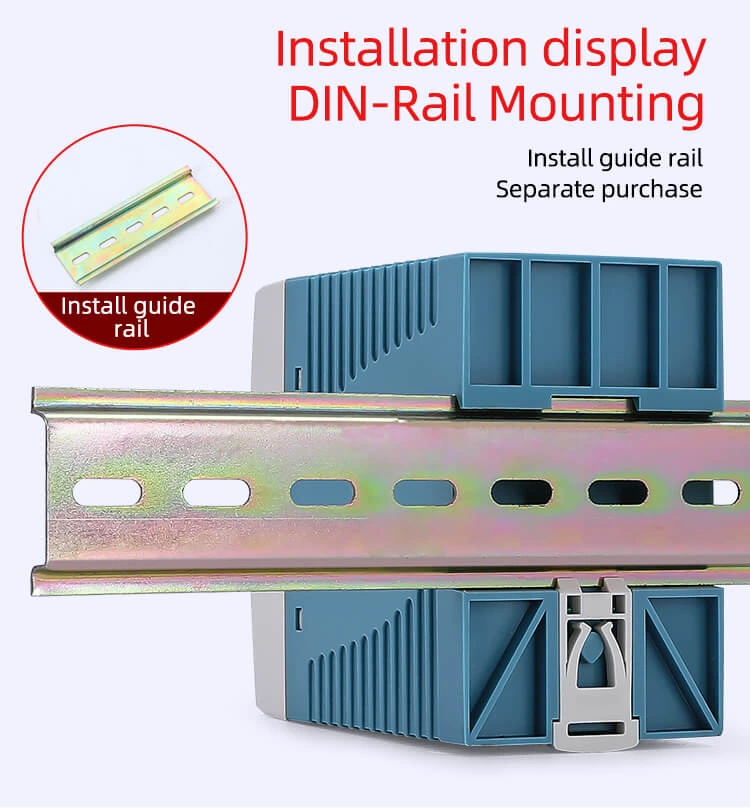

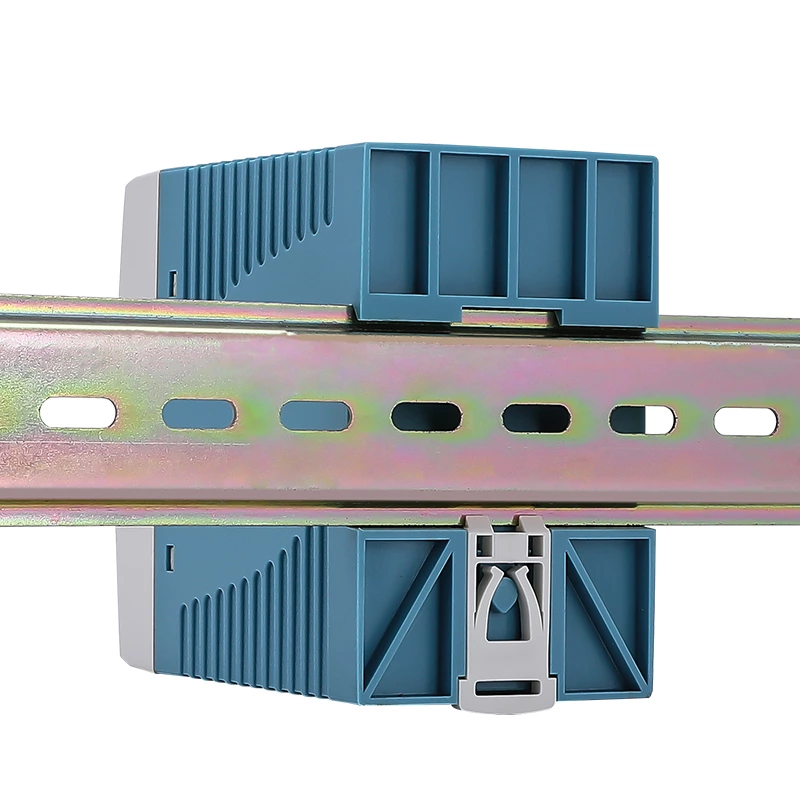

Dimension |
55*90*100mm(W*H*D) |
|||||
|
Packing |
0.42Kg:30PCS/14Kg 0.82CUFT |
|||||
