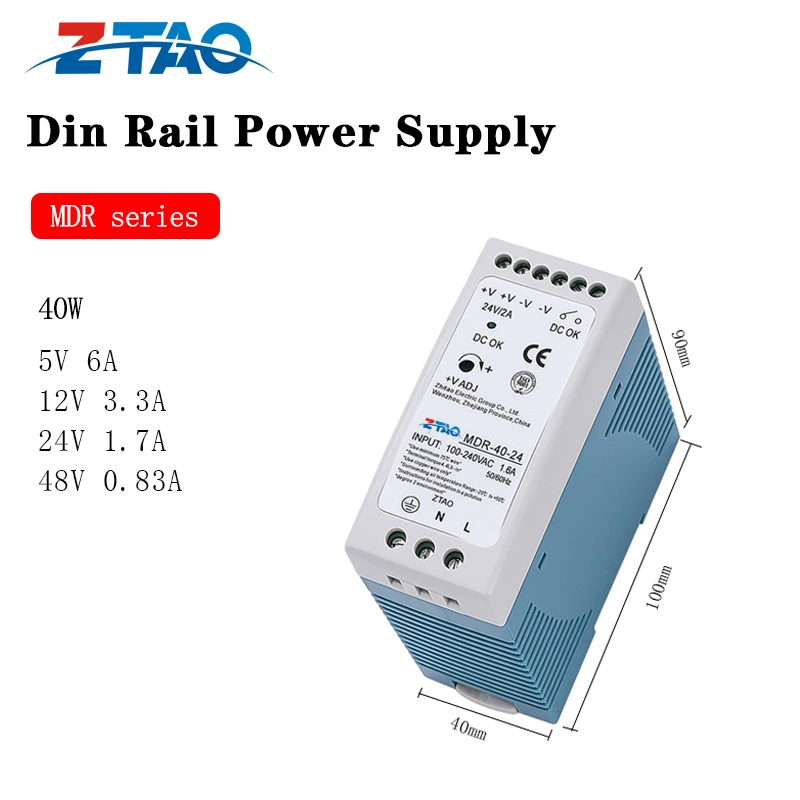

MODEL |
|
MDR-40-12 |
MDR-40-24 |
MDR-40-48 |
|
OUTPUT |
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
3.33A |
1.7A |
0.83A |
|
|
Current range |
0~3.33A |
0~1.7A |
0~0.83A |
|
|
Rated power |
40W |
40.8W |
39.8W |
|
|
Ripple&noise |
120mVp-p |
150mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
12~14V |
24~28V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±1.0% |
±1.0% |
±1.0% |
|
|
Load regulation |
±1.5% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
500ms, 30ms/230VAC 500ms，30ms/115VAC(full load) |
|||
|
Hold up time |
50ms/230VAC 22ms/115VAC(full load) |
|||
|
INPUT |
Voltage range |
100～264VAC 140～370VDC |
||
|
Frequency range |
50~60Hz |
|||
|
Efficiency |
84% |
85% |
86% |
|
|
AC current |
1.8A/115VAC 1A/230VAC |
|||
|
Inrush current |
Cold start: 30A/115VAC 60A/230VAC |
|||
|
Leakage current |
<1mA/240VAC |
|||
|
PROTECTION |
Over load |
105%~150% In rated output power |
||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
||||
|
Over voltage |
15~18V |
31~36V |
58~65V |
|
|
Protected mode: turn off the output and restore the normal output after the power is restarted |
||||
|
85℃±5℃(TWS1) |
90℃±5℃(TWS1) |
90℃±5℃（TSW1） |
||
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal |
||||
|
FUNCTION |
DC OK The signal value |
Relay contact (Max): 30V/1A resistive load |
||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||
|
Working humidity |
20%~90% RH non-condensing |
|||
|
Storage TEMP humidity |
-10℃~+60℃. 10%~95% RH |
|||
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes，Install conform to IEC60068-2-6 |
|||
|
SAFETY |
Safety regulations |
UL508, UL60950-1, TUV EN60950-1. EAC TPTC 004 Certified |
||
|
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.4KVAC |
|||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||
|
Electromagnetic compatible emission |
Compliance to EN55011, EN55032 (CISPR32), Class B, EN61000-3-2,-3, EAC TP TC 020 |
|||
|
Compliance.to.EN61000-4-2.3.4.5,6,8,11,EN55024.EN1000-6-2. （EN50082-2）Class A heavy industry standard |
||||
|
OTHERS |
MTBF |
≥301.7K hrs.MIL-HDBK-217F(25℃) |
||
|

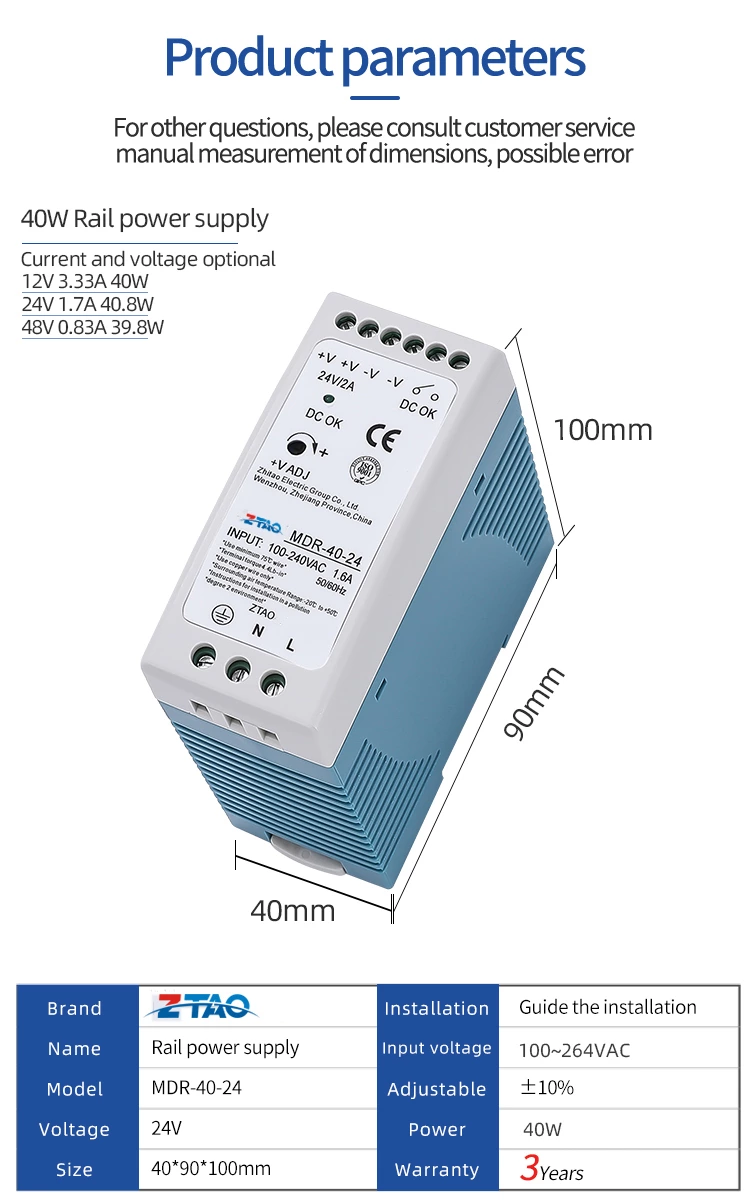

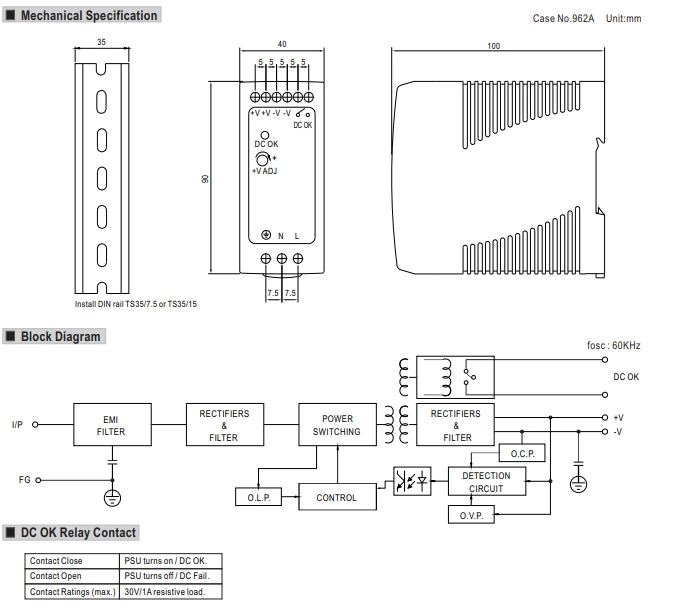

Dimension |
40*90*100mm(W*H*D) |
|||
|
Packing |
0.3Kg:42PCS/14.6Kg 0.82CUFT |
|||
