MODEL |
|
LRS-350-5 |
LRS-350-12 |
LRS-350-15 |
LRS-350-24 |
LRS-350-36 |
LRS-350-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|
|
Rated Current |
60A |
29A |
23.8A |
14.6A |
9.7A |
7.3A |
|
|
Current range |
0~60A |
0~29A |
0~23.8A |
0~14.6A |
0~9.7A |
0~7.3A |
|
|
Rated power |
300W |
348W |
348W |
350.4W |
349.2W |
350.4W |
|
|
Ripple&noise |
150mVp-P |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
4.5~5.5V |
10.2~13.8V |
13.5~18V |
24~28V |
32.4~39.6V |
43.2~52.8V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±0.5% |
±1.0% |
±0.5% |
±0.5% |
|
|
Setup,Rise,Time |
1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load |
|||||
|
|
Hold up time (Typ) |
16ms/230VAC 12ms/115VAC at full load |
|||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC） |
|||||
|
|
Frequency range |
50~60Hz |
|||||
|
|
Efficiency (Typ) |
83.5% |
85% |
86% |
87% |
87% |
88% |
|
89 |
AC current (Typ) |
6.8A/115VAC 3.4A/230VAC |
|||||
|
|
Inrush current (Typ) |
Cold start: 60A/115VAC 60A/230VAC |
|||||
|
|
Leakage current |
<2mA/240VAC |
|||||
|

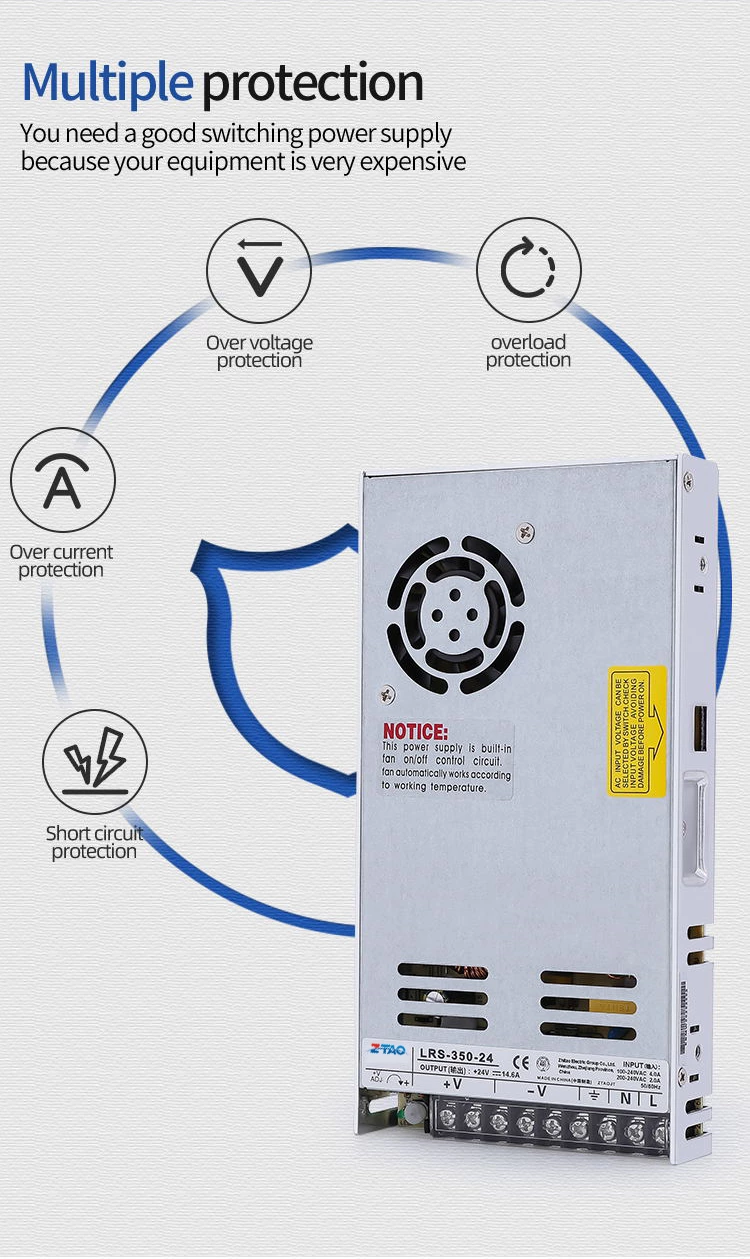

PROTECTION |
Over load |
110%~140% in rated output power |
|||||
|
|
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
18.75~21.75V |
28.8~33.6V |
41.4~48.6V |
55.2~64.8V |
|
|
|
Protection mode, tum off output voltage, restart to recover |
|||||
|
FUNCTION |

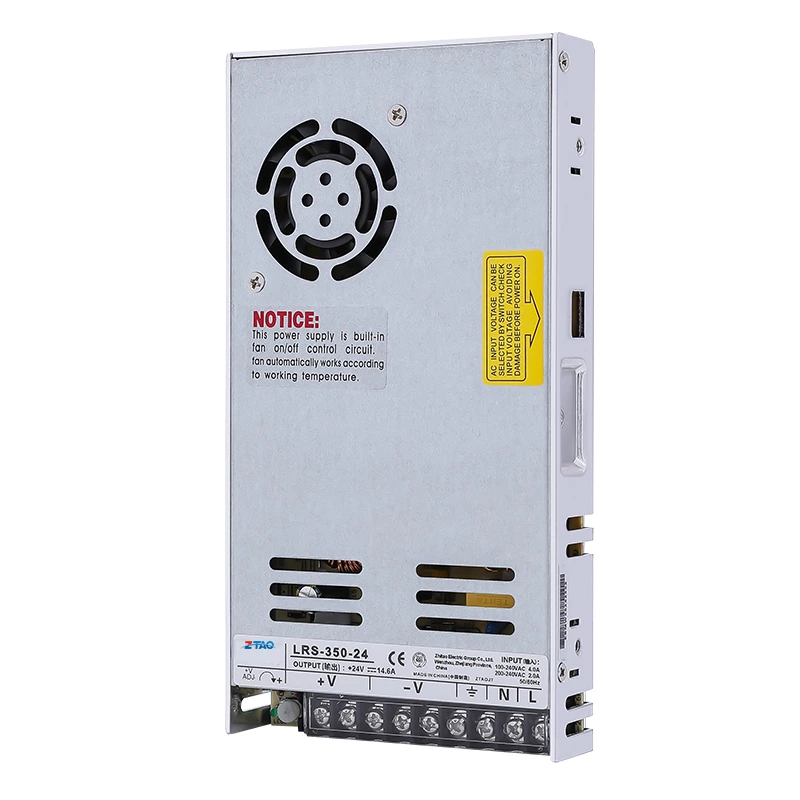

Fan on/off control (TYP) |
RTH3≥50℃ Open the fan ≤40℃ Fan closed |
|||||
|
Environment |
Working TEMP |
-10℃~+60℃. |
|||||
|
|
Working humidity |
20~65% RH non-condensing |
|||||
|
|
Storage TEMP humidity |
-10℃~+60℃，10~95% RH non-condensing |
|||||
|
|
TEMP.coefficient |
±0.03%℃ (0~50℃) |
|||||
|
|
Vibration |
10~500Hz，5G 10min./1 cycle . 60min Each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
UL60950-1,TUV EN60750-1 Certified |
|||||
|
|
Withstand voltage |
I/P-O/P:4KVAC I/P-FG:2KVA O/P-FG:1.25KVAC |
|||||
|
|
Insolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
|
|
Electromagnetic compatible emission |
Compliance to BSMI CNS13438 EAC TP TC 020 |
|||||
|
|
EMC immunity requirements |
Compliance to EAC TP TC 020 |
|||||
|
OTHERS |
MTBF |
≥320K hrs.MIL-HDBK-217F(25℃) |
|||||
|
|

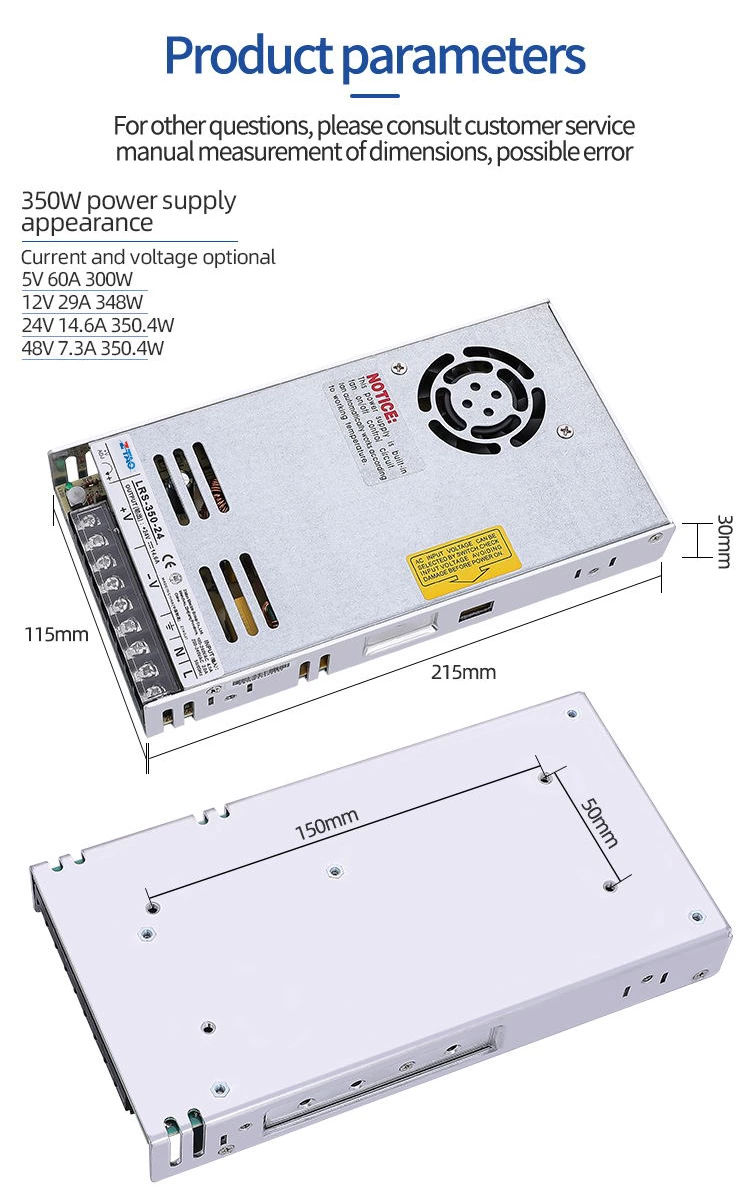

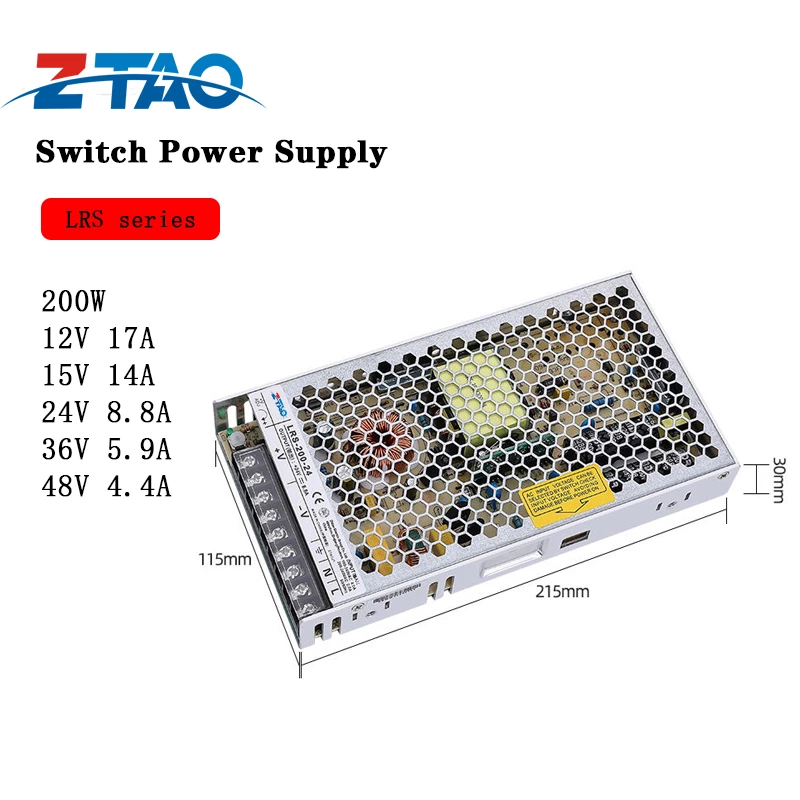

Dimension |
215*115*30mm(L*W*H) |
|||||
|
|
Packing |
0.75Kg:20PCS/16Kg/0.78CUFT |
|||||
