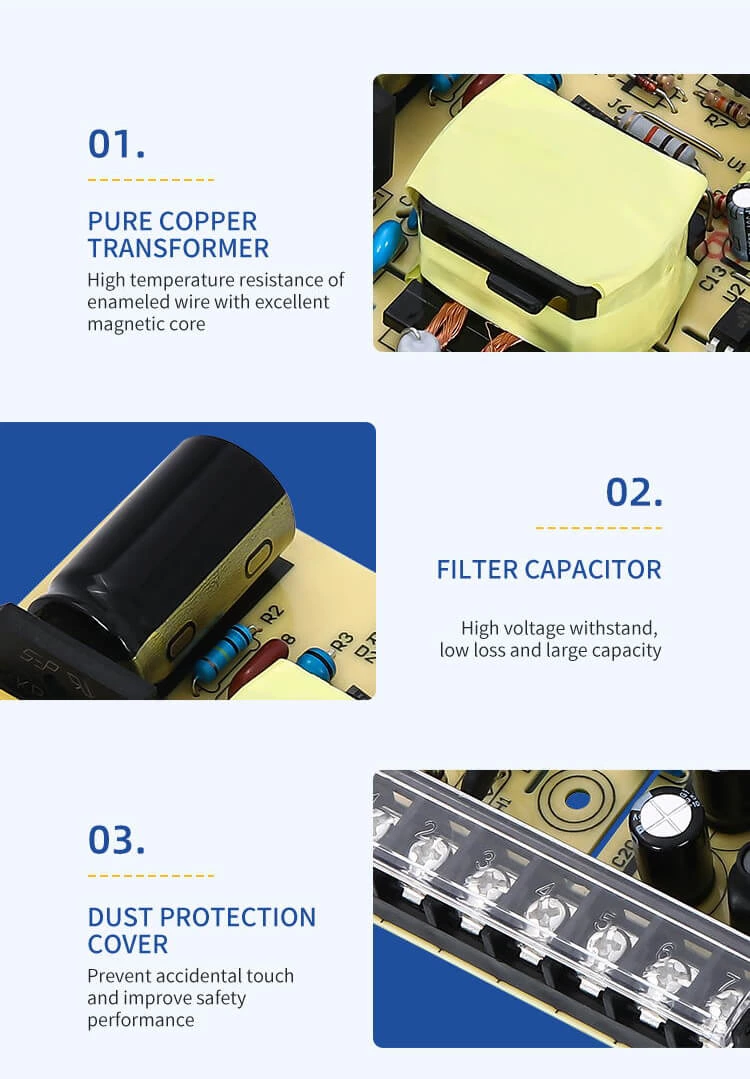

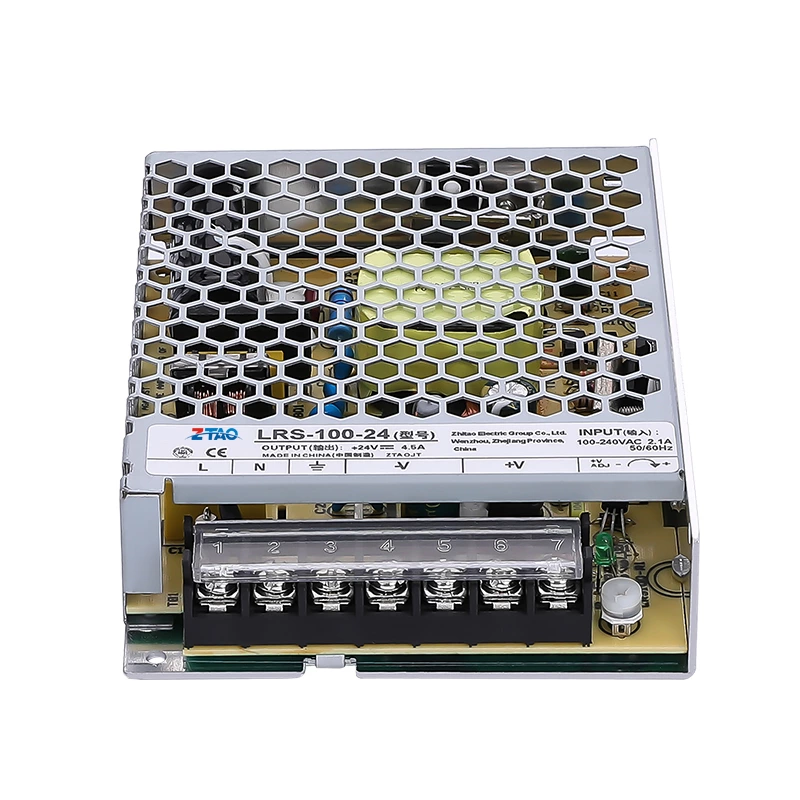

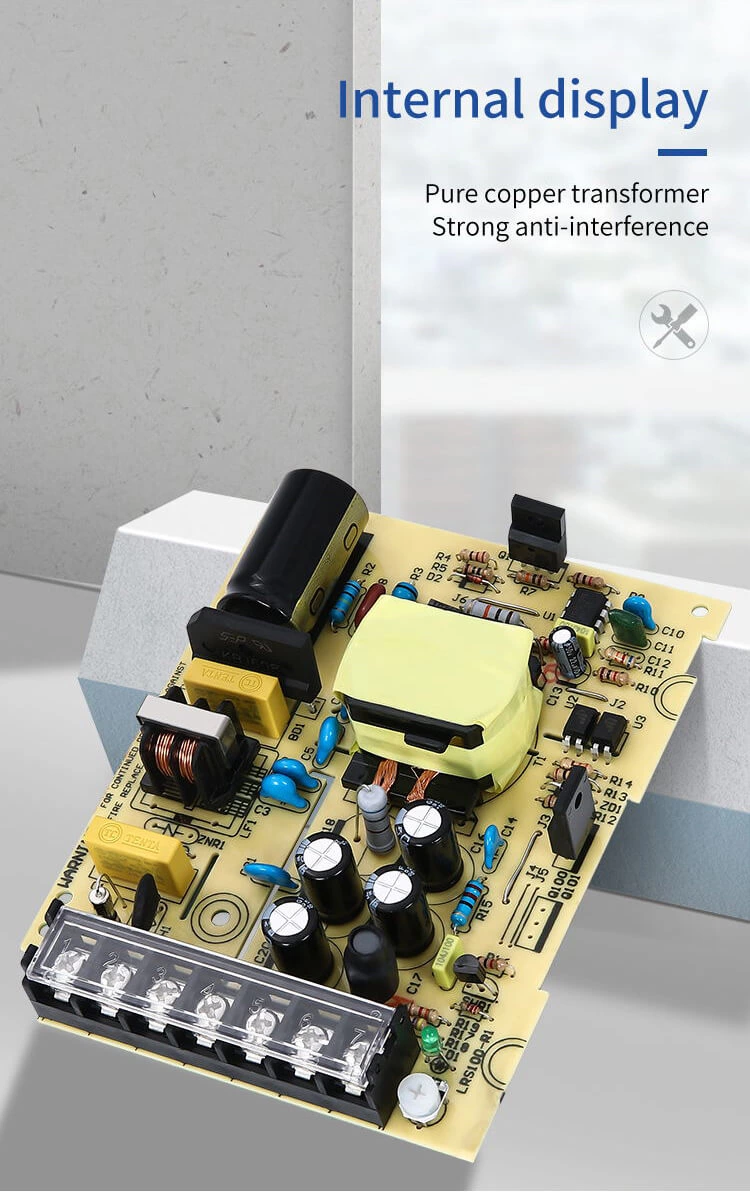

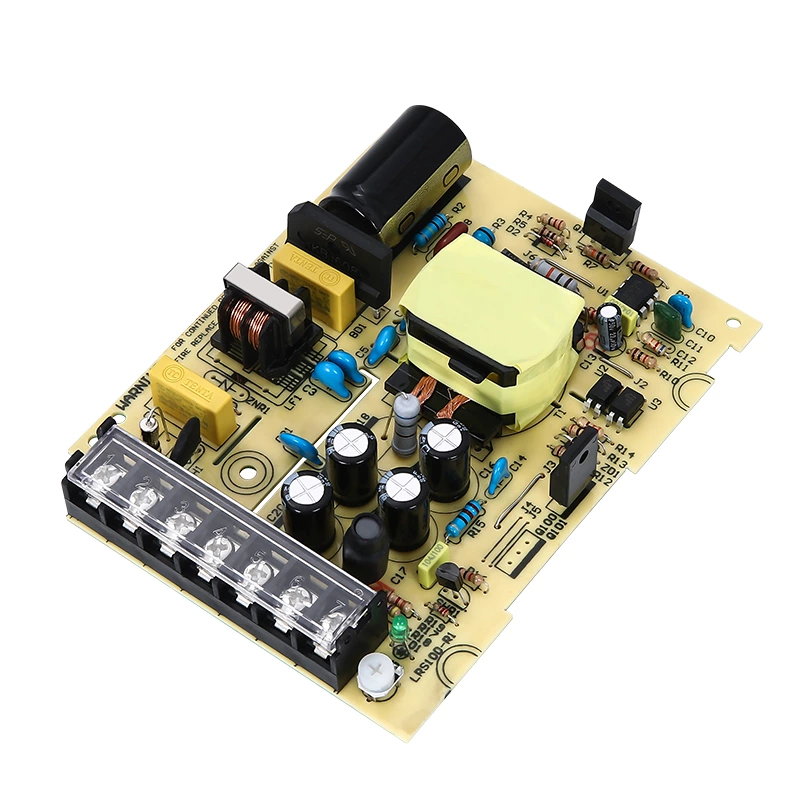

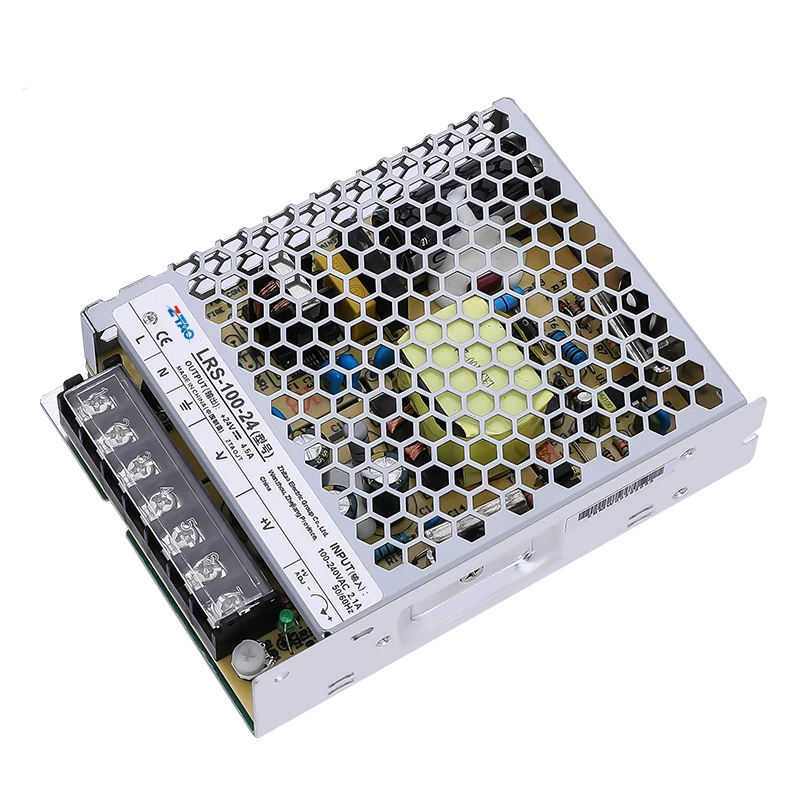

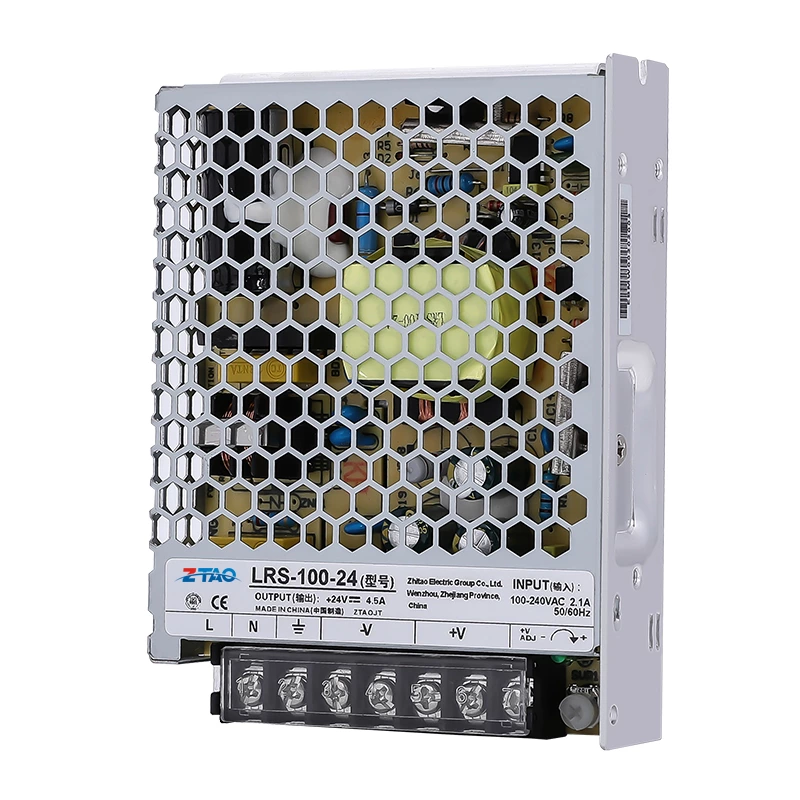

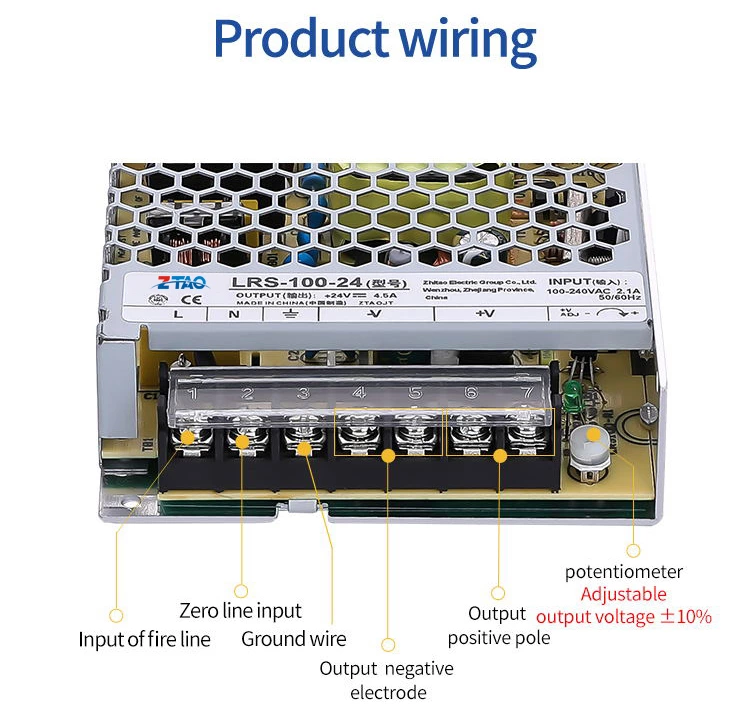

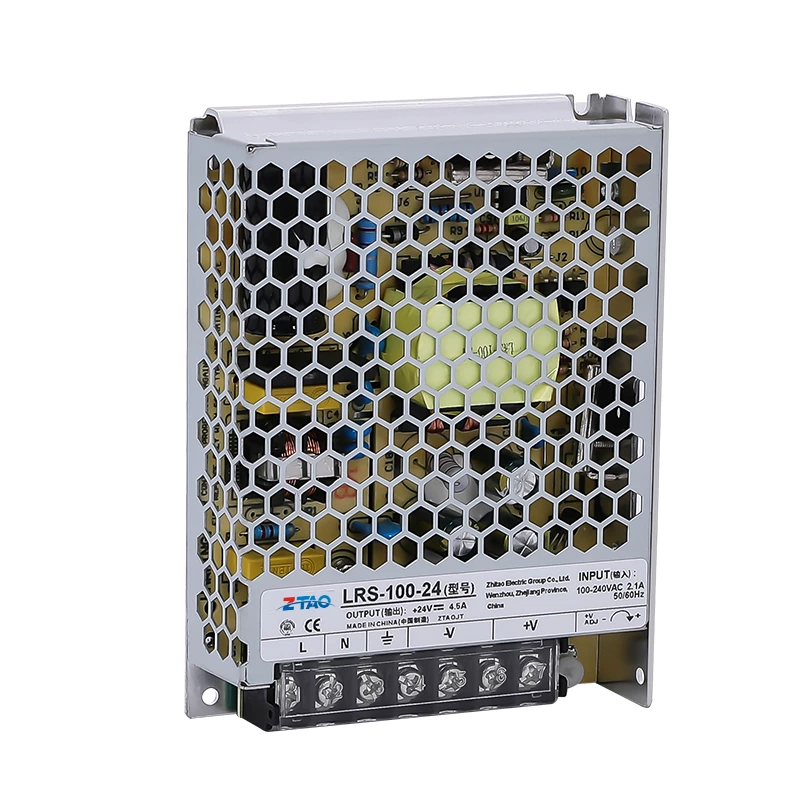

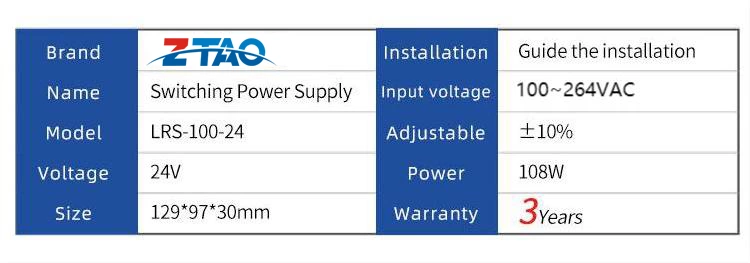

MODEL |
|
LRS-100-5 |
LRS-100-12 |
LRS-100-15 |
LRS-100-24 |
LRS-100-36 |
LRS-100-48 |
||
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
||
|
Rated Current |
18A |
8.5A |
7A |
4.5A |
2.8A |
2.3A |
|||
|
Current range |
0~18A |
0~8.5A |
0~7A |
0~4.5A |
0~2.8A |
0~2.3A |
|||
|
Rated power |
90W |
102W |
105W |
108W |
100.8W |
110.4W |
|||
|
Ripple&noise |
100mVp-P |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|||
|
Voltage ADJ. range |
4.5~5.5V |
10.2~13.8V |
13.5~18V |
24~28V |
32.4~39.6V |
43.2~52.8V |
|||
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|||
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|||
|
Load regulation |
±1.0% |
±1.0% |
±0.5% |
±1.0% |
±0.5% |
±0.5% |
|||
|
Setup,Rise,Time |
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
||||||||
|
Hold up time |
55ms/230VAC 10ms/115VAC at full load |
||||||||
|
INPUT |
Voltage range |
100~264VAC 140~373VDC |
|||||||
| Frequency range |
50~60Hz |
||||||||
|
Efficiency (Typ) |
86% |
89% |
89% |
90% |
91.5% |
91.5% |
|||
| AC current (Typ) |
1.9A/115VAC 1.2A/230VAC |
||||||||
|
Inrush current |
Cold start: 50A/230VAC |
||||||||
|
Leakage current |
<0.75mA/240VAC |
||||||||
|

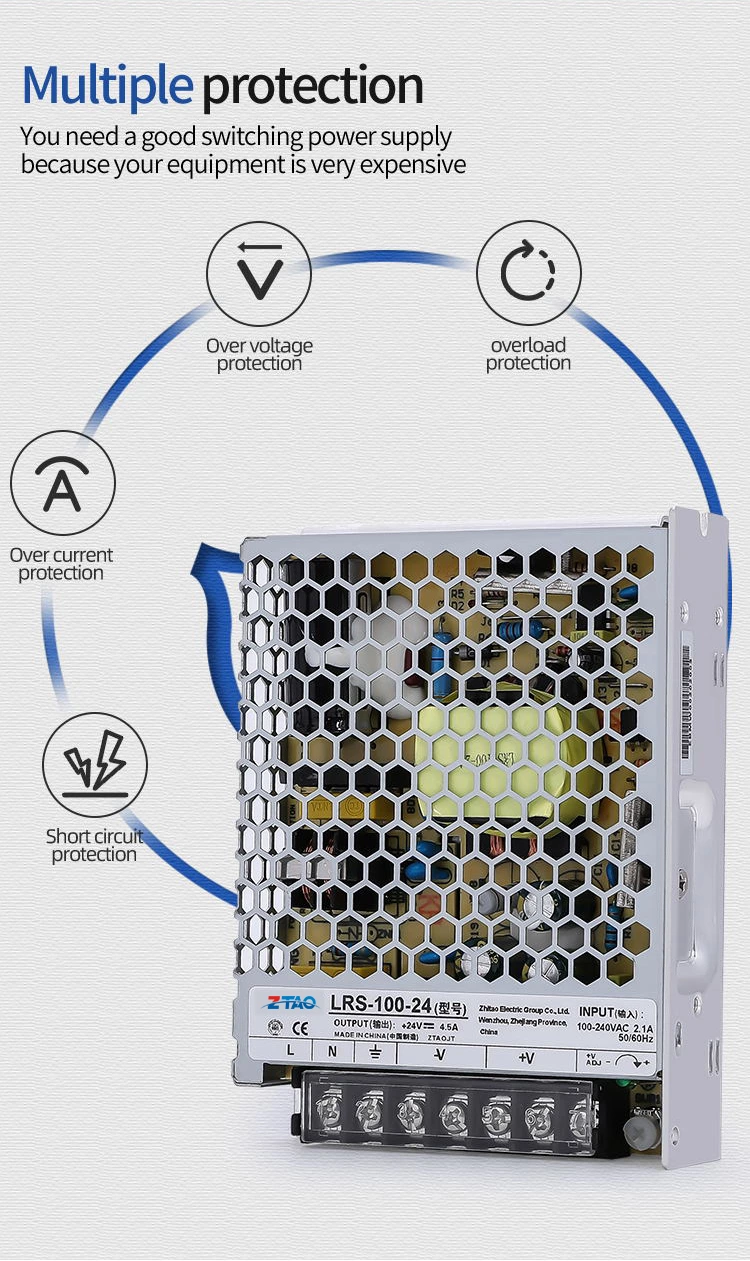

PROTECTION |
Over load |
115%~150% in rated output power |
|||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||||||
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
18.75~21.75V |
28.8~33.6V |
41.4~48.6V |
55.2~64.8V |
|||
|
Protection mode, tum off output voltage, restart to recover |
|||||||||
|

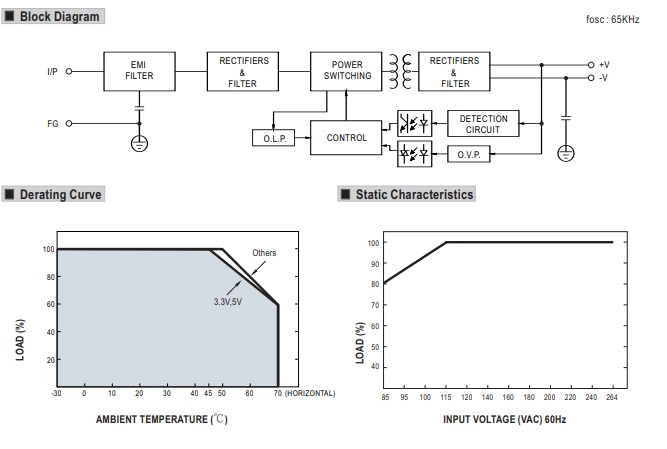

Environment |
Working TEMP |
-10℃~+60℃. |
|||||||
|
Working humidity |
20~65% RH non-condensing |
||||||||
|
Storage TEMP humidity |
-10℃~+65℃，10~95% RH non-condensing |
||||||||
|
TEMP.coefficient |
±0.03%℃ (0~50℃) |
||||||||
|
Vibration |
10~500Hz，5G 10min./1 cycle . 60min Each along X,Y,Z axes |
||||||||
|
SAFETY |
Safety regulations |
UL60950-1, TUV EN60750-1 Certified |
|||||||
|
Withstand voltage |
I/P-O/P:4KVAC I/P-FG:2KVA O/P-FG:1.25KVAC |
||||||||
|
Insolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||||||
|
Electromagnetic compatible emission |
Compliance to EN55032(CISPR32 )Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN1000-6-1,Class A heavy and light industry standard |
||||||||
|
OTHERS |
MTBF |
≥760K hrs.MIL-HDBK-217F(25℃) |
|||||||
|

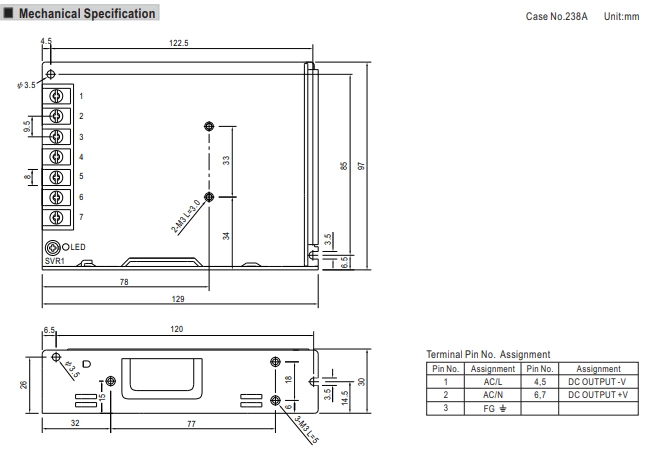

Dimension |

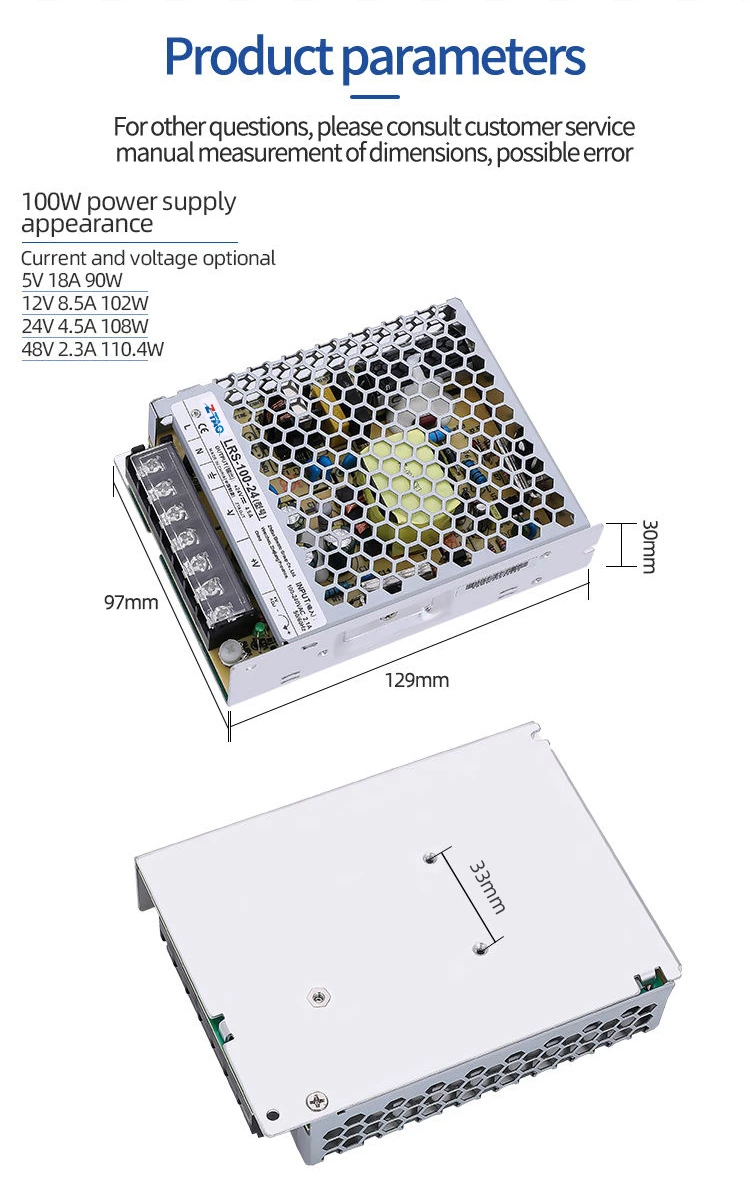

129*97*30mm(L*W*H) |
||||||||
|
Packing |
0.3Kg:40PCS/13Kg/0.9CUFT |
||||||||
