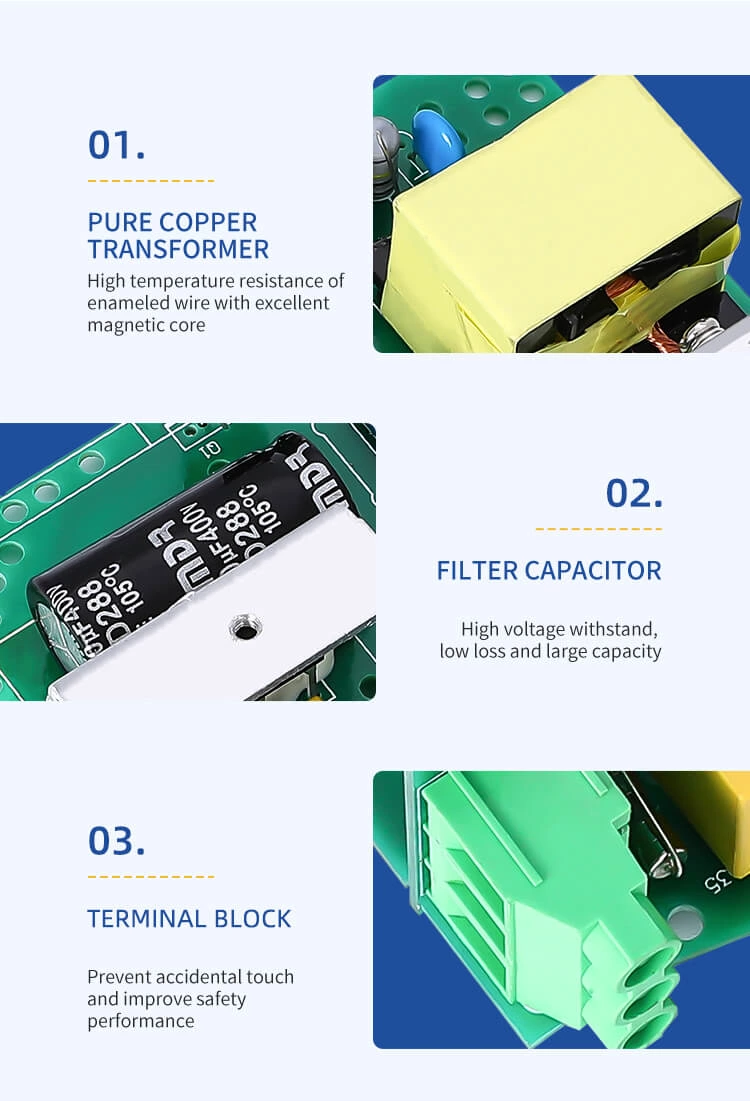

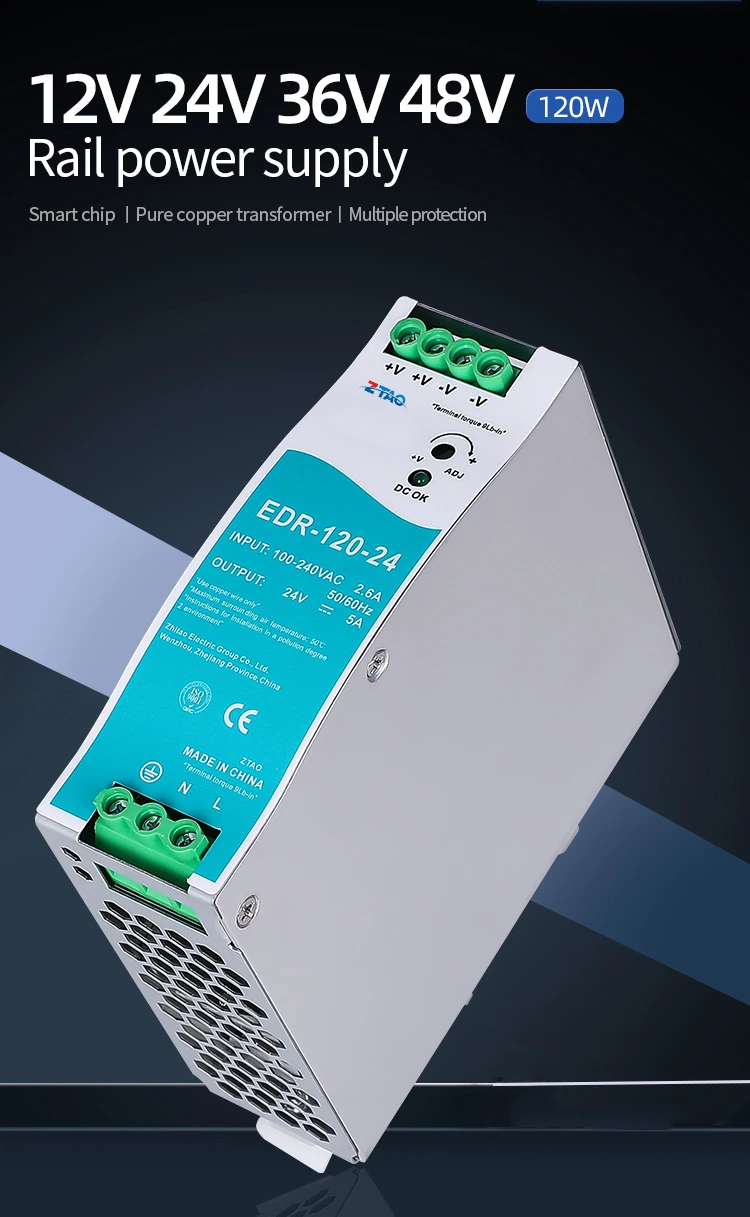

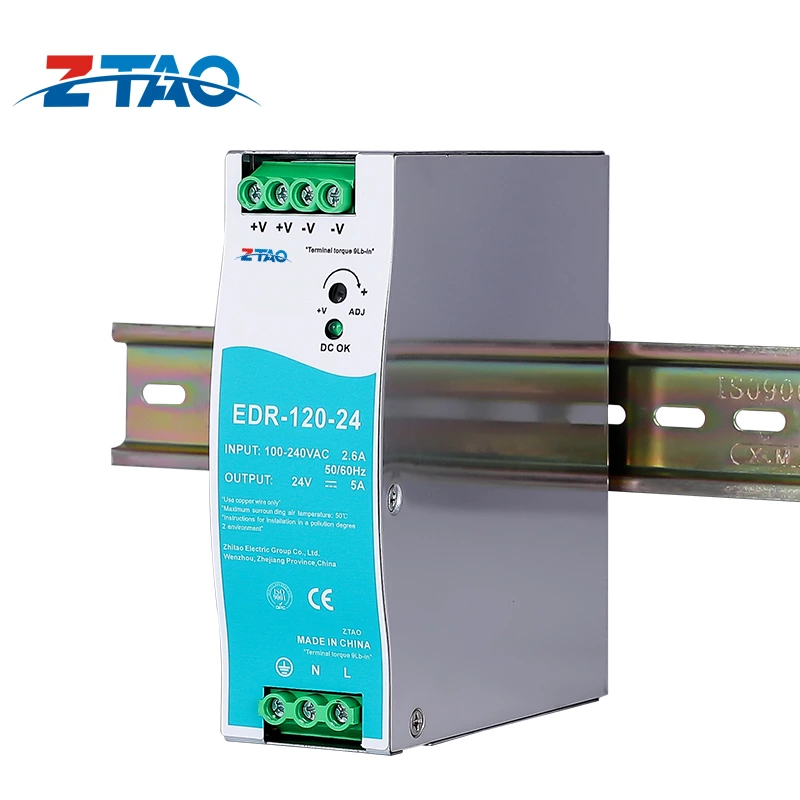

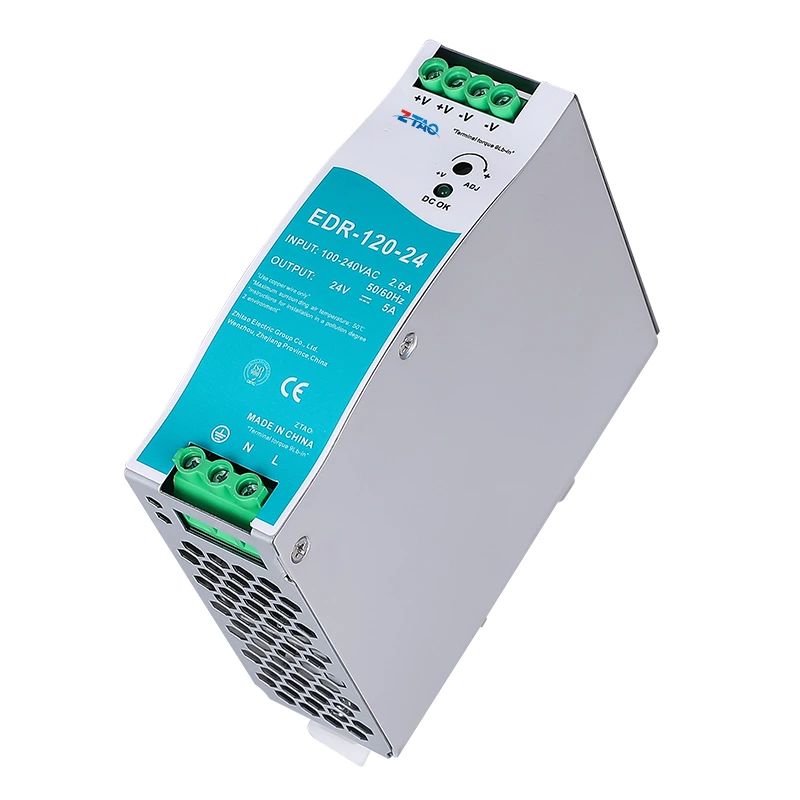

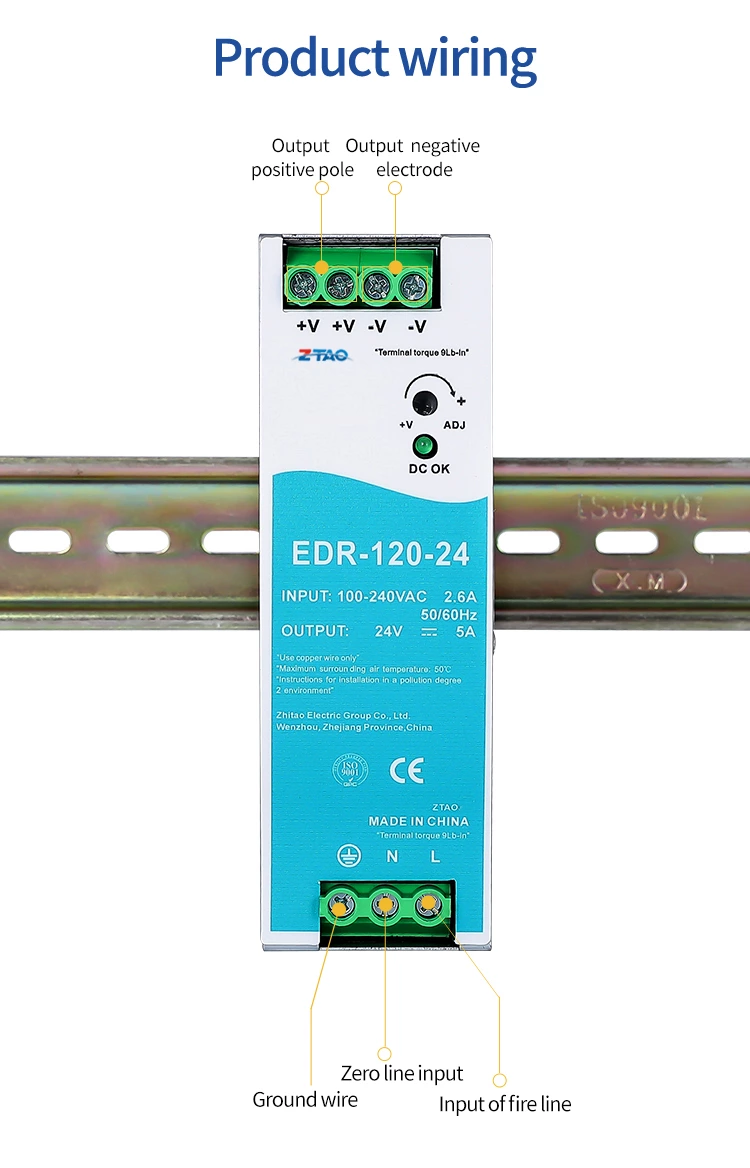

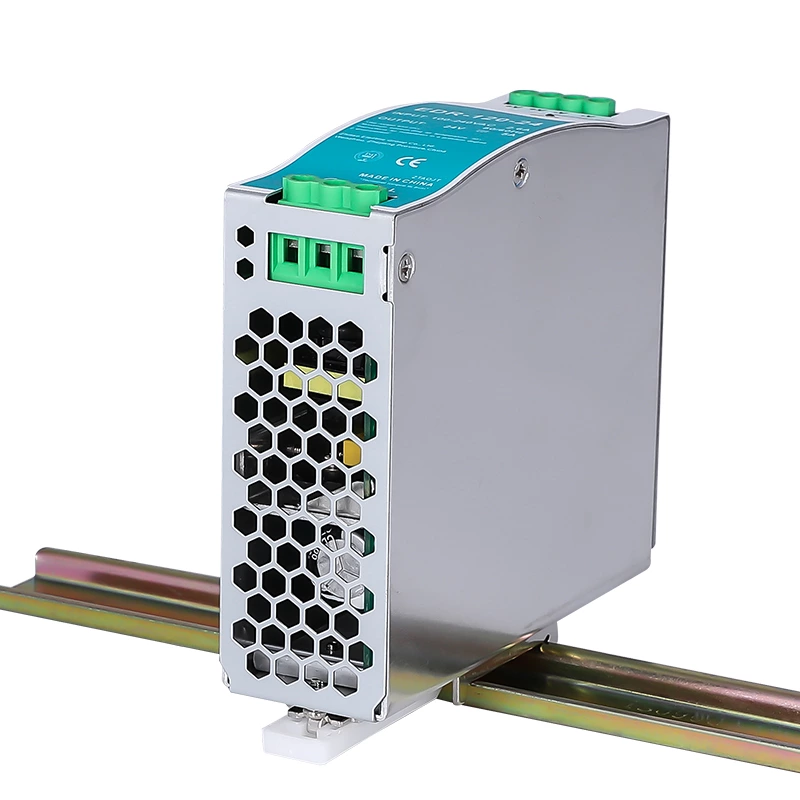

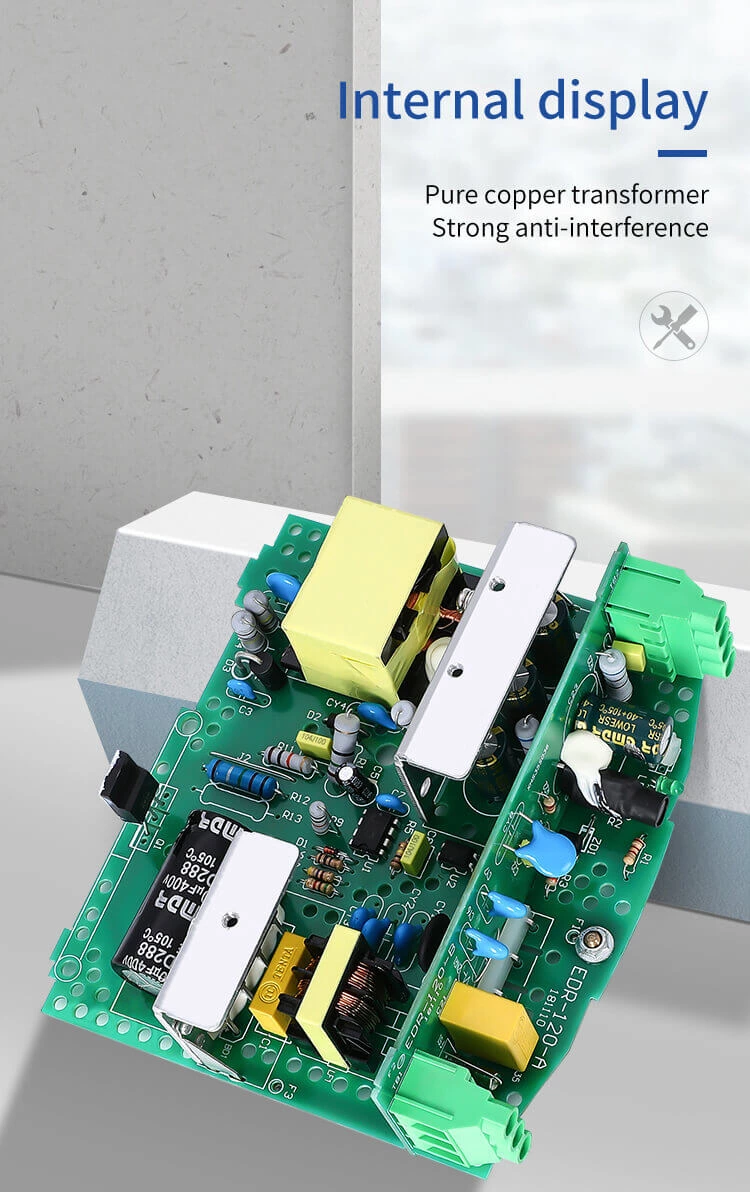

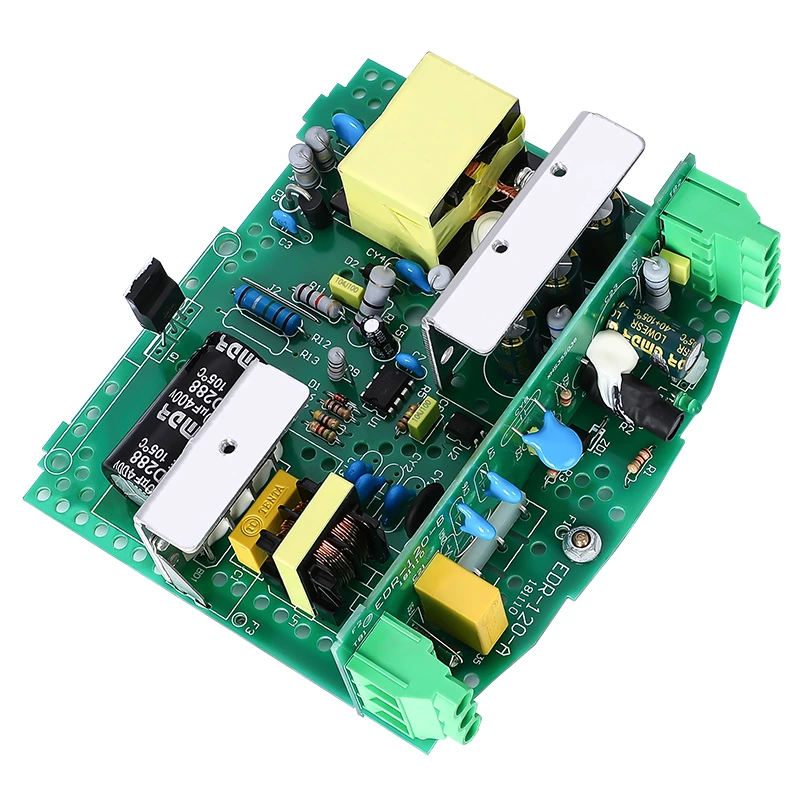

MODEL |
|
EDR-120-12 |

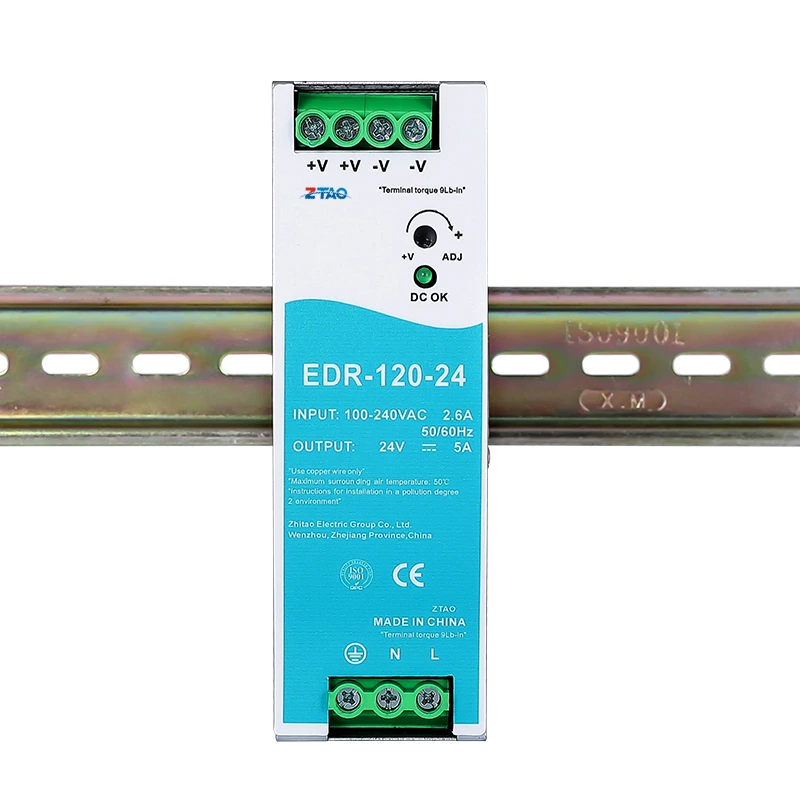

EDR-120-24 |
EDR-120-48 |
|
OUTPUT |
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
10A |
5A |
2.5A |
|
|
Current range |
0~10A |
0~5A |
0~2.5A |
|
|
Rated power |
120W |
120W |
120W |
|
|
Ripple&noise |
80mVp-p |
80mVp-p |
120mVp-p |
|
|
Voltage ADJ. |
12~14V |
24~28V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
500ms, 70ms/230VAC 500ms，70ms/115VAC(full load) |
|||
|
Hold up time |
36ms/230VAC 32ms/115VAC(full load) |
|||
|
INPUT |
Voltage range |
100～264VAC 140～370VDC |
||
|
Frequency range |
50~60Hz |
|||
|
Efficiency |
83% |
86% |
87% |
|
|
AC current |
2.25A/115VAC 1.3A/230VAC |
|||
|
Inrush current |
Cold start: 20A/115VAC 35A/230VAC |
|||
|
Leakage current |
<3.5mA/240VAC |
|||
|

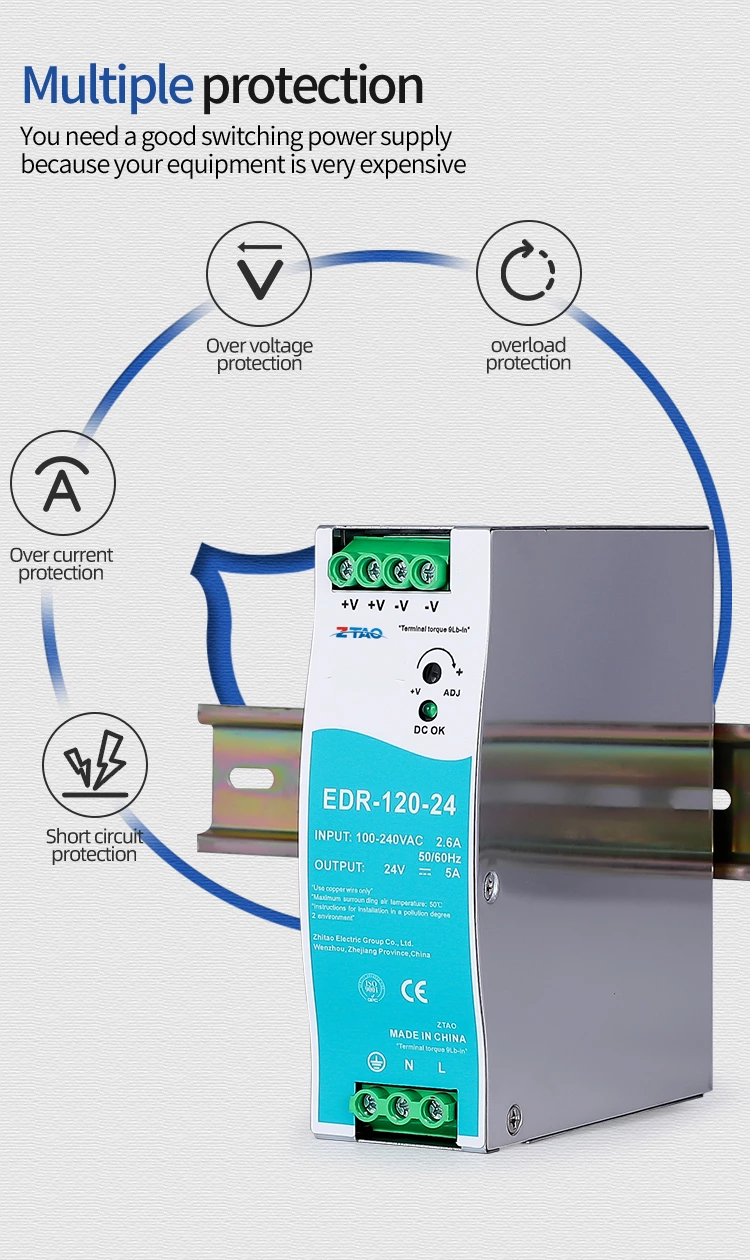

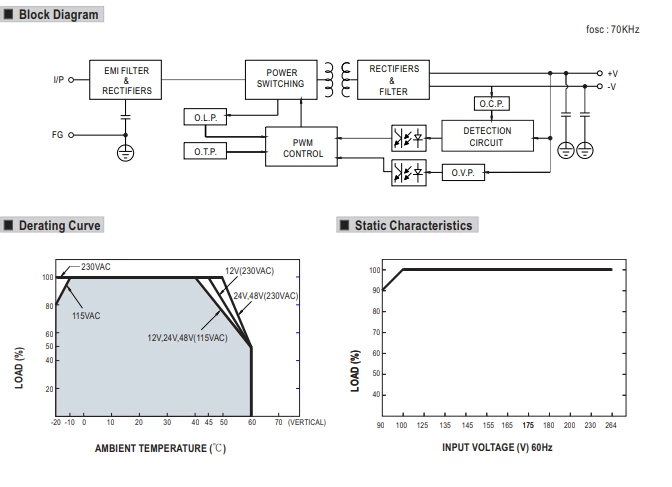

PROTECTION |
Over load |
105%~150% rated output power |
||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
||||
|
Over voltage |
15~17V |
29~33V |
56~65V |
|
|
Protected mode: turn off the output and restore the normal output after the power is restarted |
||||
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal |
||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||
|
Working humidity |
20%~90% RH non-condensing |
|||
|
Storage TEMP humidity |
-20℃~+75℃. 10~95% RH |
|||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6 |
|||
|
SAFETY |
Safety regulations |
CE FCC ROHS Certified UL508, UL60950-1,TUV EN60950-1 EAC TPTC 004 In line with the certification |
||
|
Withstand voltage |
I/P-O/P:1.2KVAC I/P-FG:1.2KVA O/P-FG:0.5KVAC |
|||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||
|
Electromagnetic compatible emission |
Compliance to EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020 |
|||
|
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2), Class A heavy industry standard EAC TP TC 020 |
||||
|
OTHERS |
MTBF |
≥456.3K hrs.MIL-HDBK-217F(25℃) |
||
|

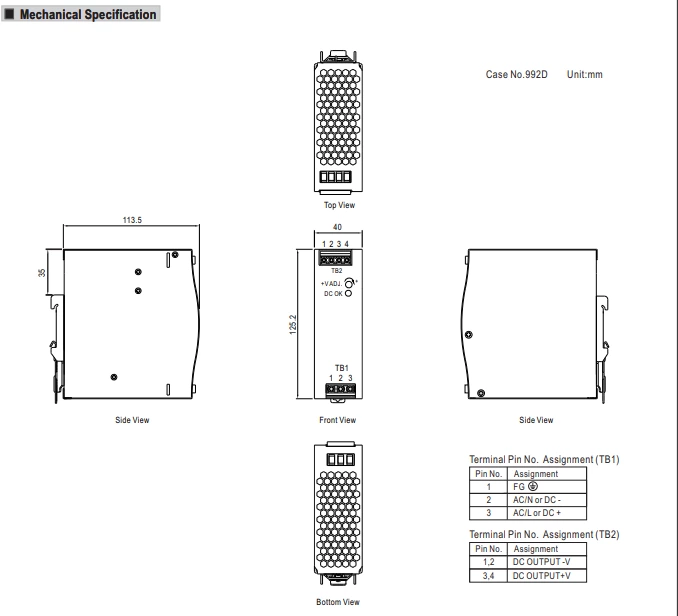

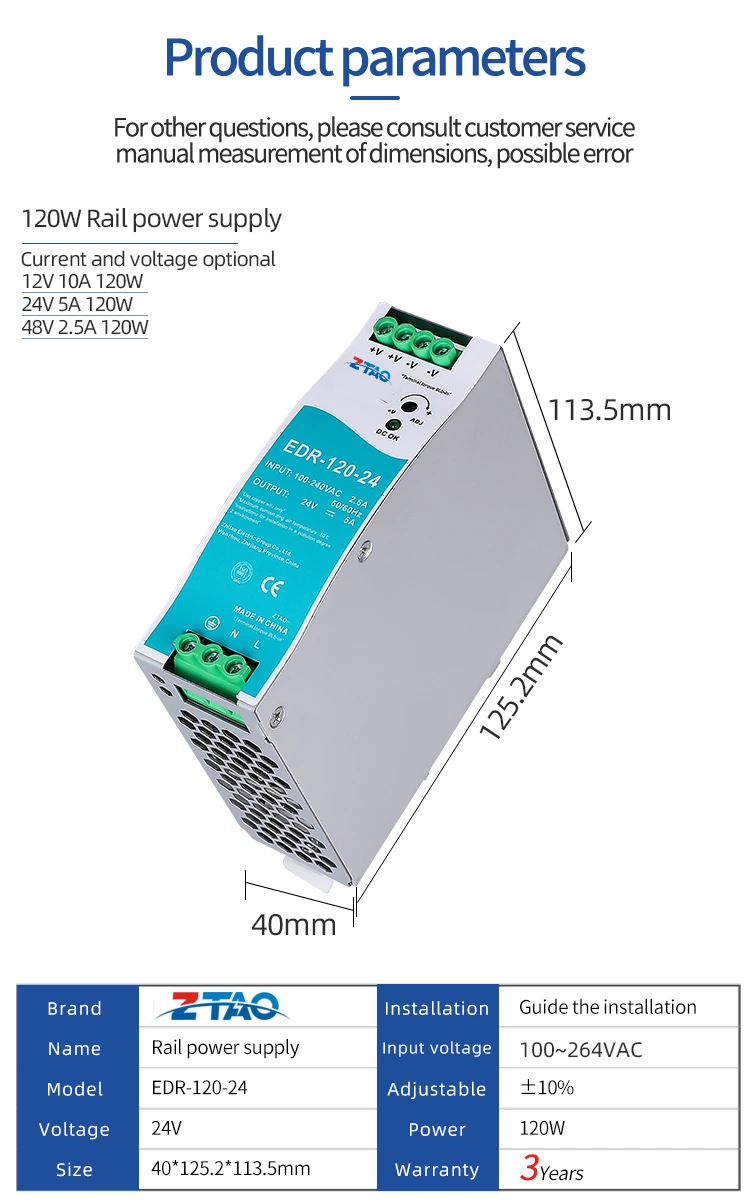

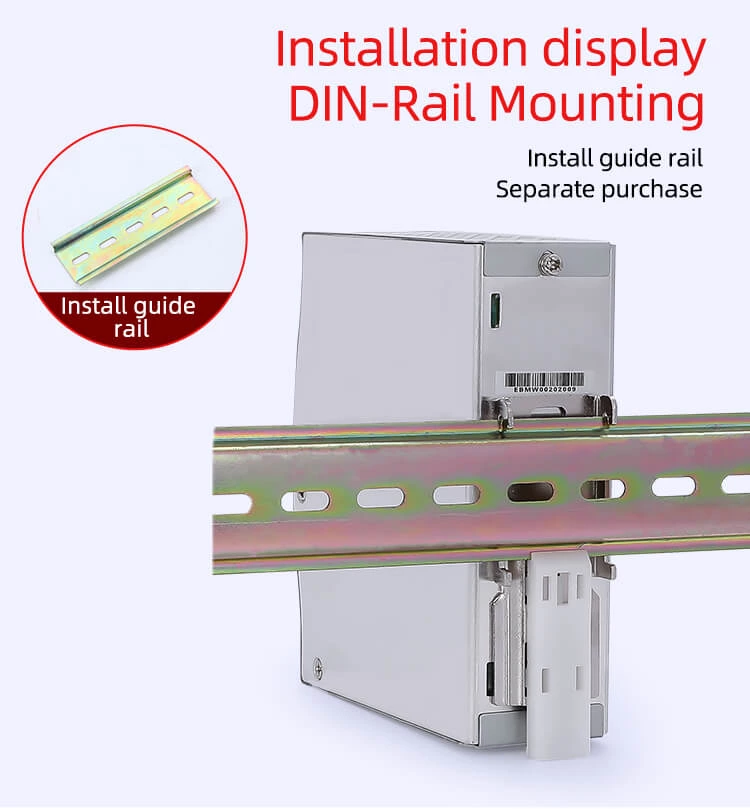

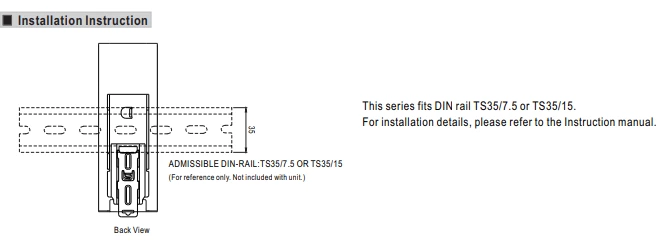

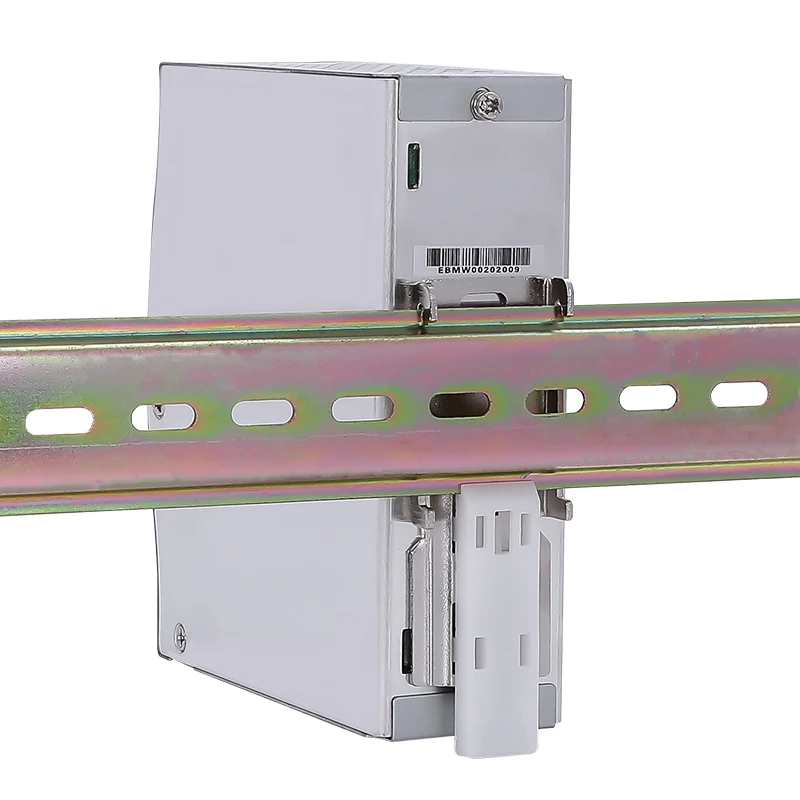

Dimension |
40*125.2*113.5mm(*W*H*D) |
|||
|
Packing |
0.55Kg:20PCS/12Kg |
|||
