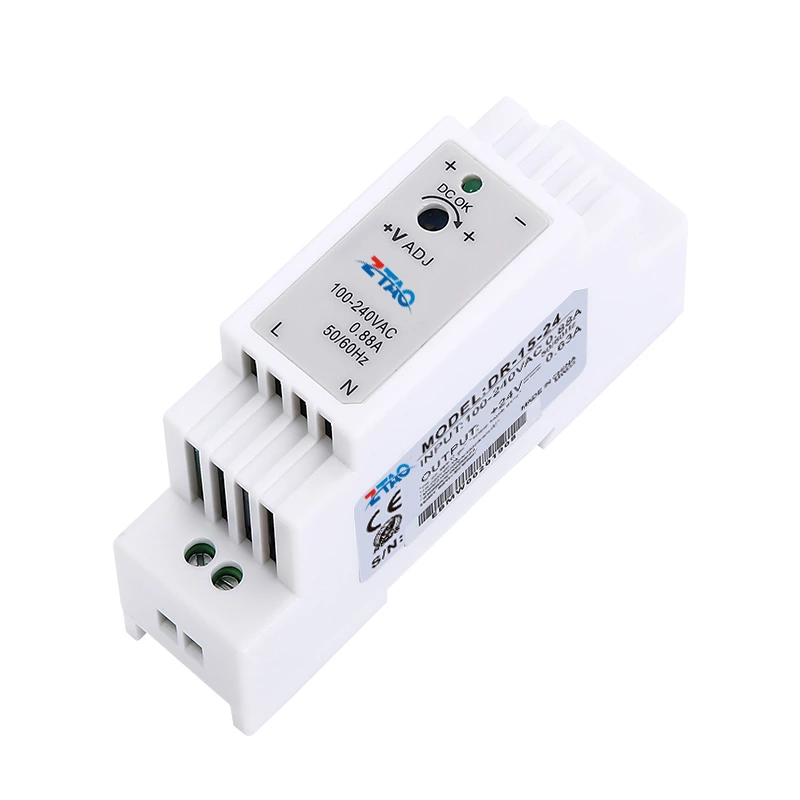

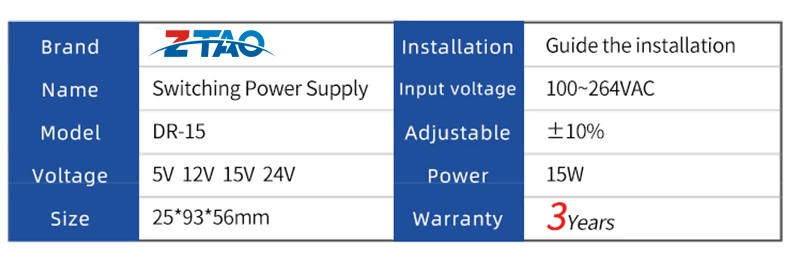

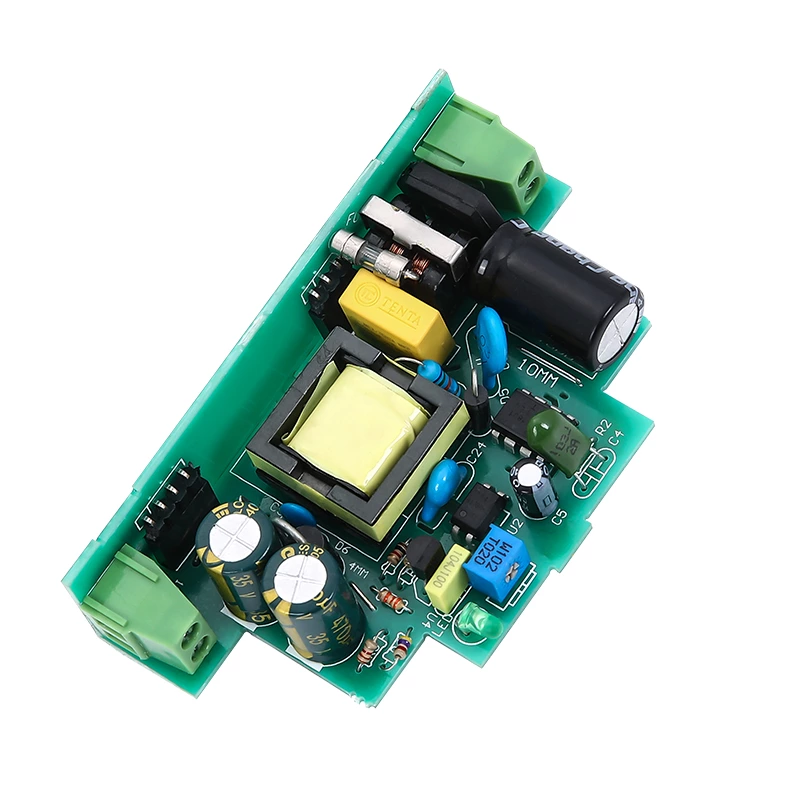

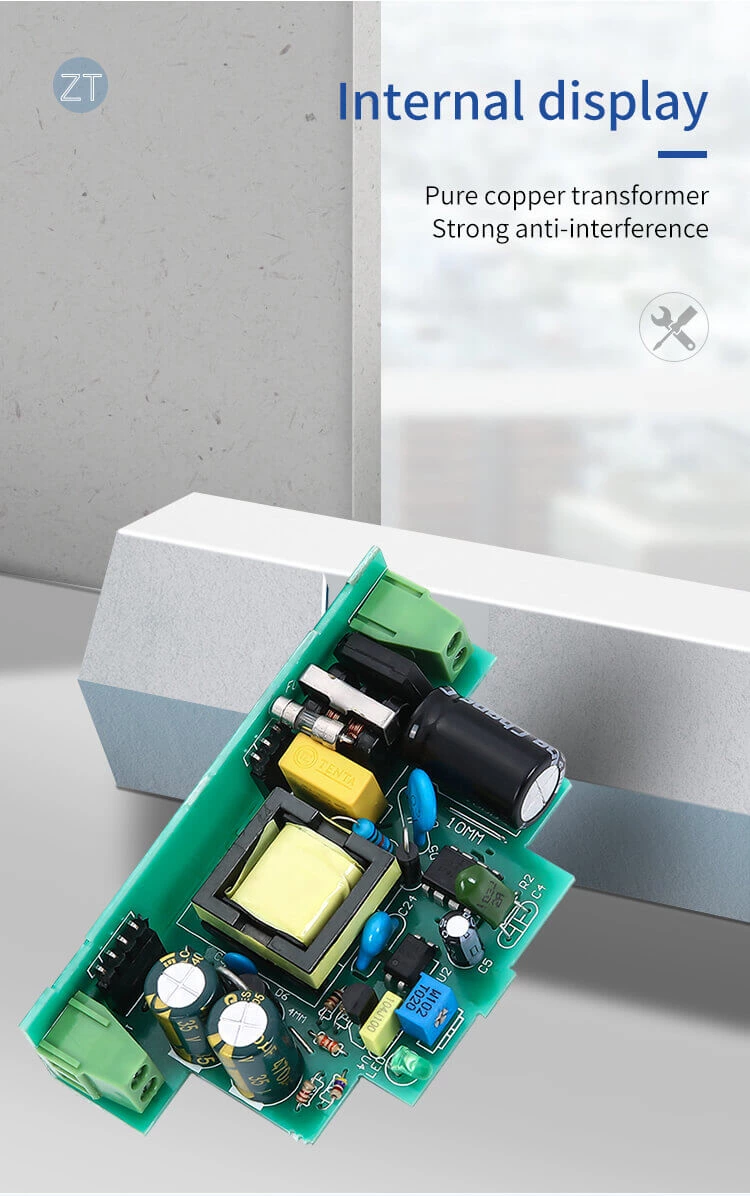

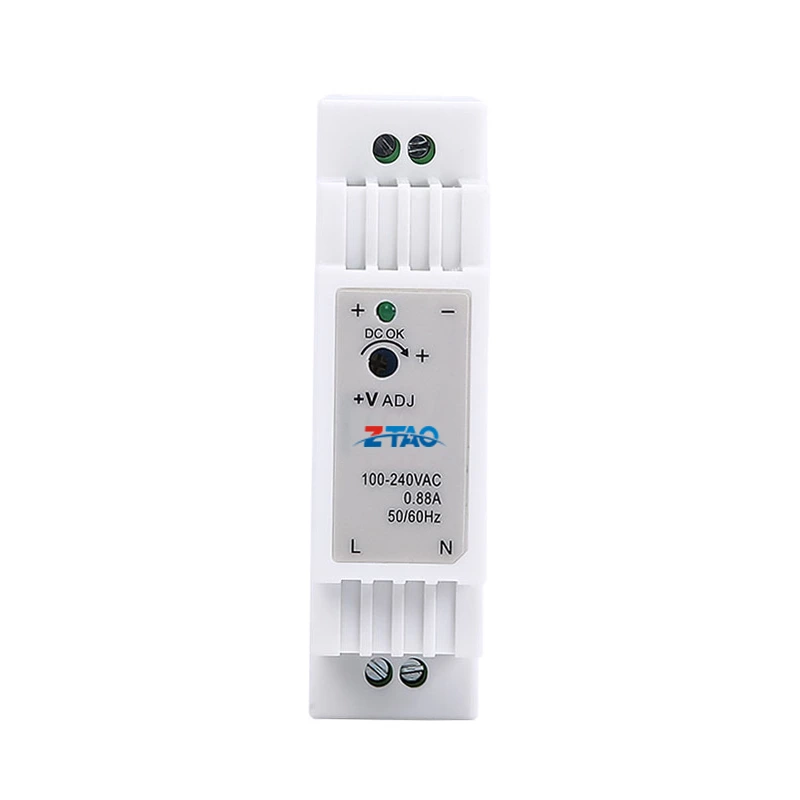

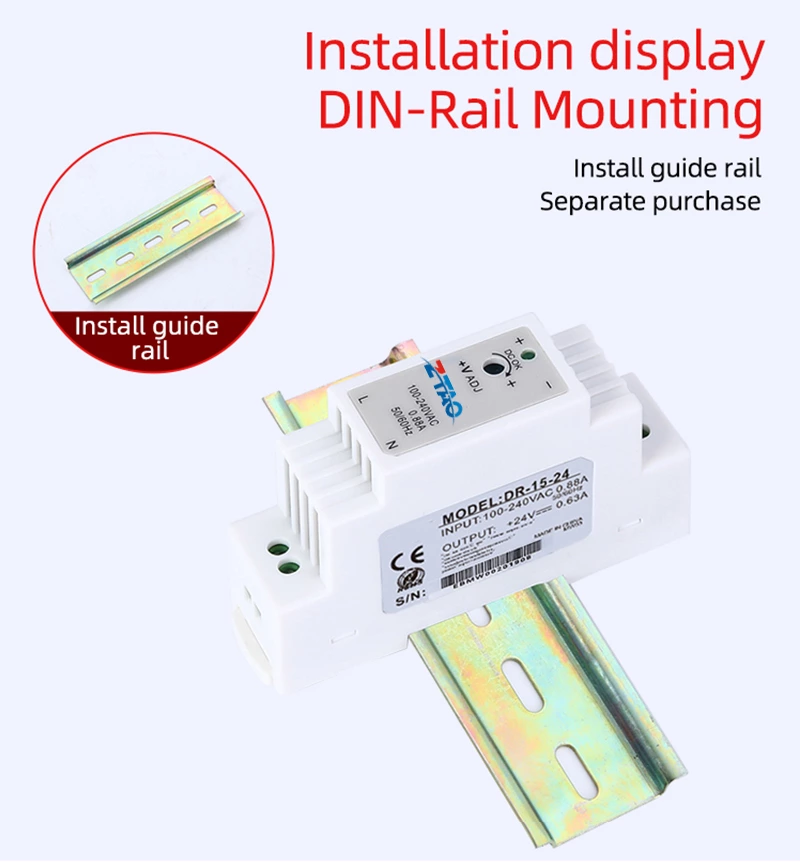

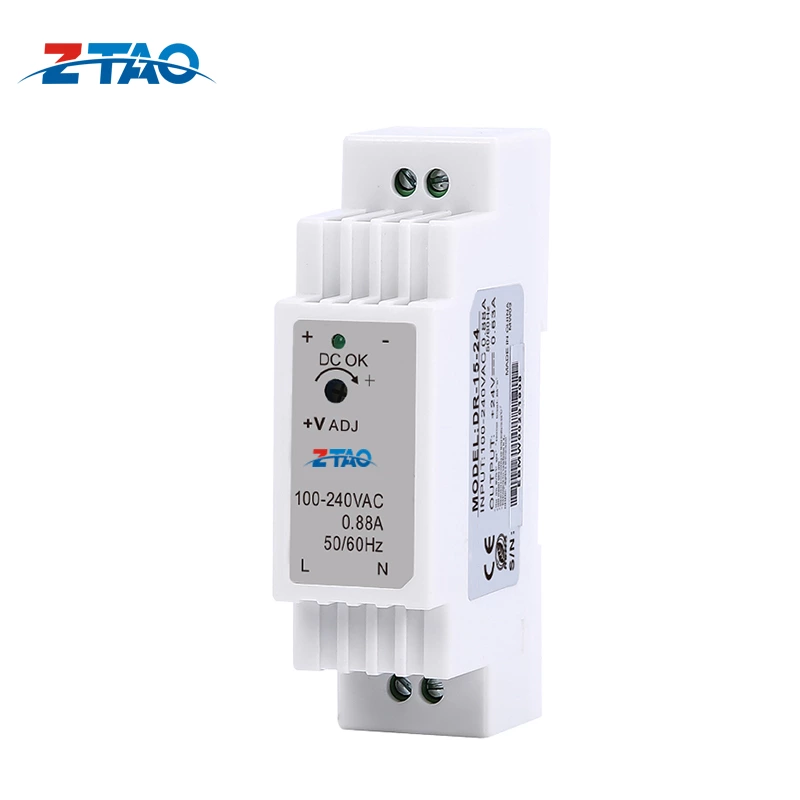

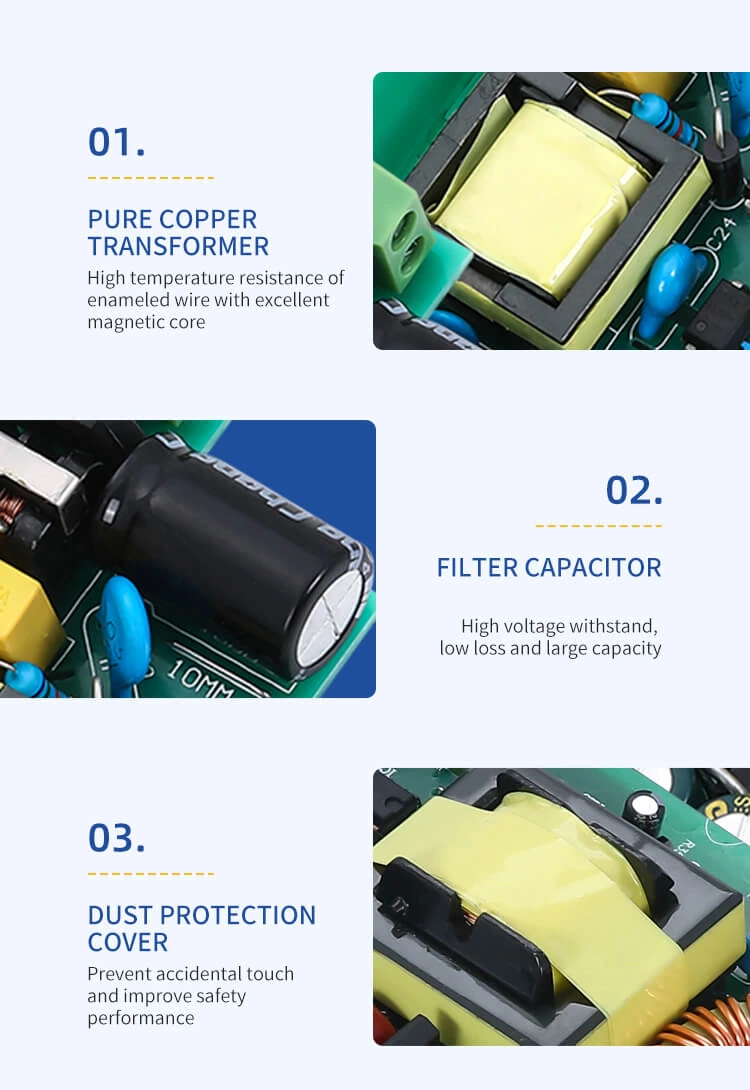

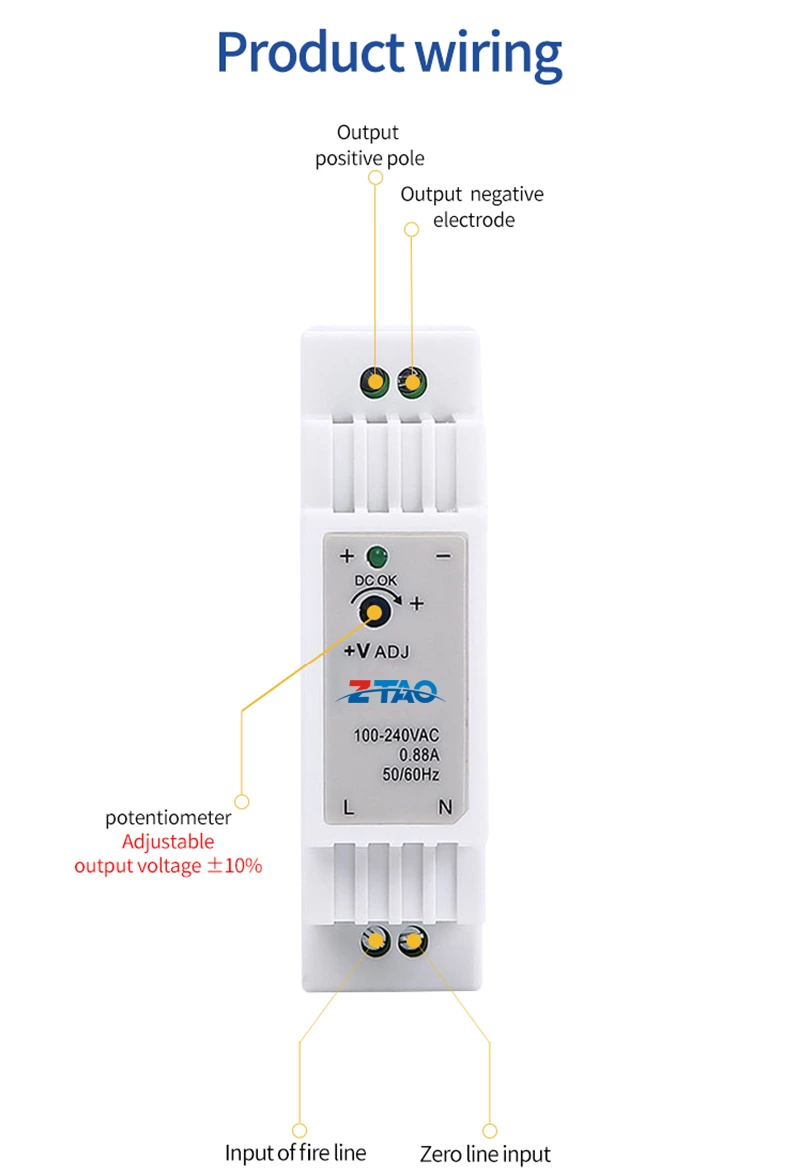

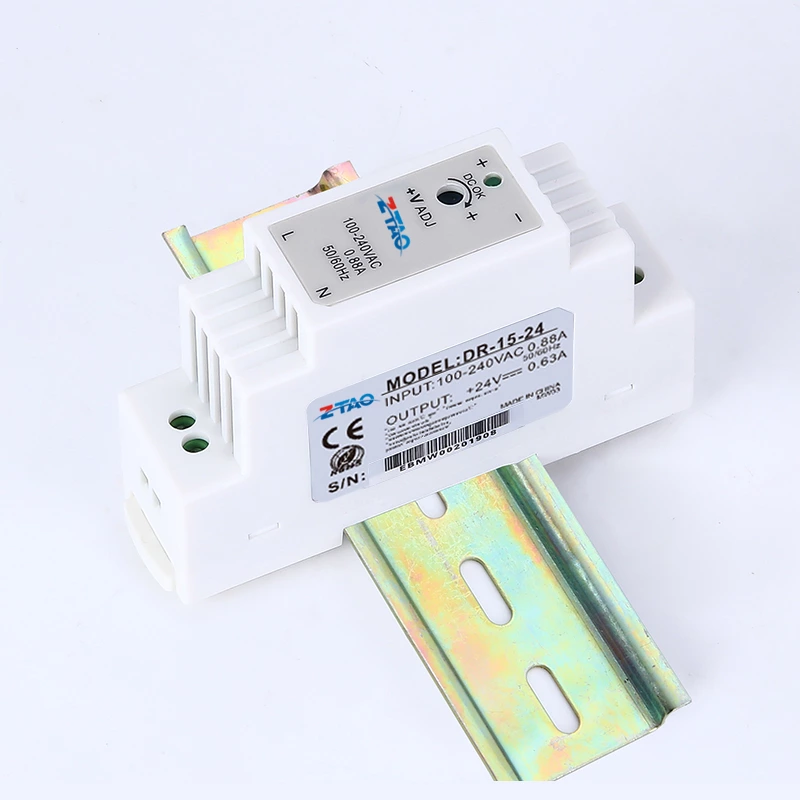

MODEL |
|
DR-15-5 |
DR-15-12 |
DR-15-15 |
DR-15-24 |
DR-15-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Rated Current |
3A |
1.25A |
1A |
0.625A |
0.32A |
|
|
current range |
0~3A |
0~1.25A |
0~1A |
0-0.625A |
o~0.32A |
|
|
Rated power |
15W |
15W |
15W |
15W |
15.36W |
|
|
Ripple & noise |
80mVp-p |
120mVp-p |
100mVp-p |
150mVp-p |
240mVp-p |
|
|
Voltage ADJ. |
4.7~6V |
12~14V |
13~17V |
23~28V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
1000ms，50ms/230VAc 1000ms，50ms/115VAC(full load) |
|||||
|
Hold up time |
70ms/230VAc 18ms/115VAC(full load) |
|||||
|
INPUT |
voltage range |
100~264VAC or 140~373VDC |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency |
77% |
82% |
83% |
83.5% |
85% |
|
|
Ac current |
1.2A/115VAC 0.8A/230VAc |
|||||
|
Inrush current |
Cold start: 35A/115VAC 65A/230VAc |
|||||
|
Leakage current |
<2mA/240VAC |
|||||
|

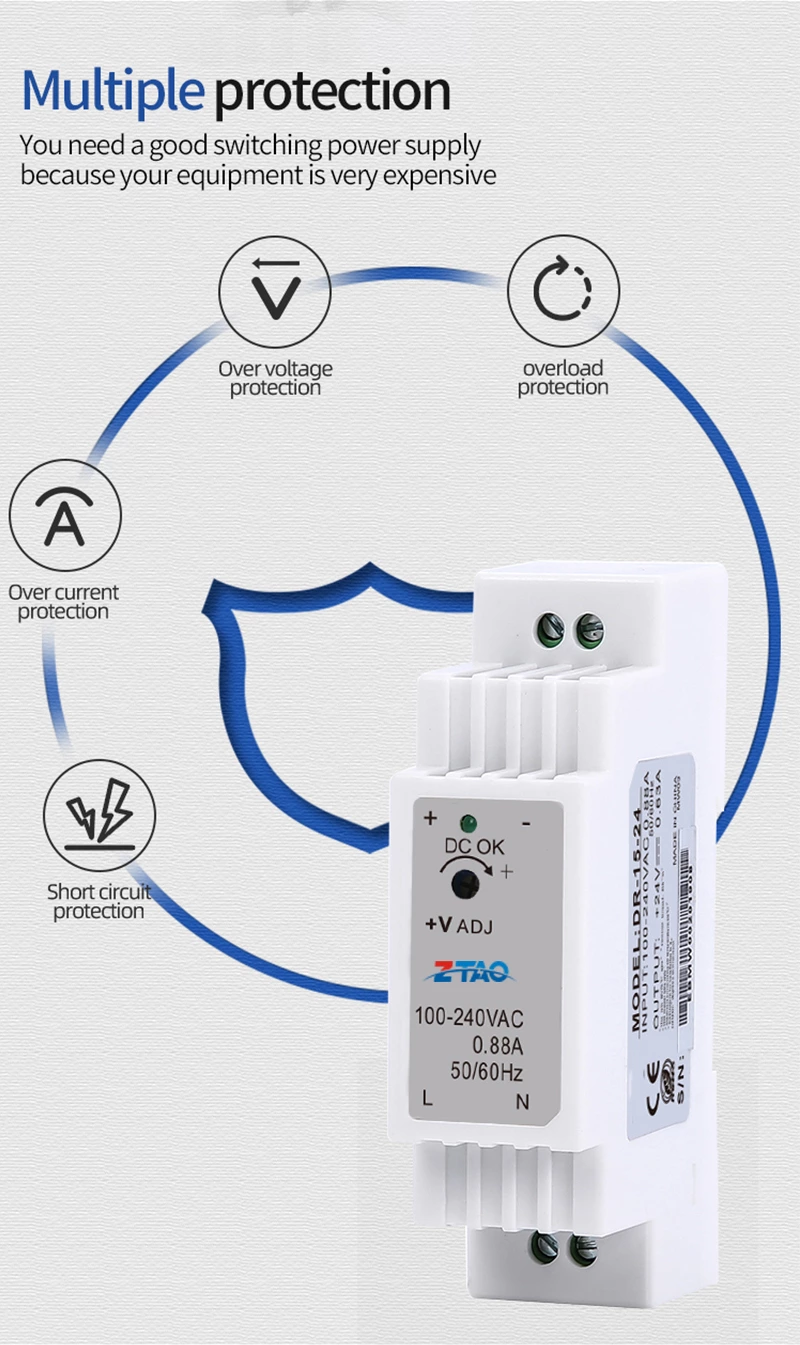

PROTECTION |
over load |
105%~150% of the rated output |
||||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
||||||
|
over voltage |
5.75~6.9V |
15~16.5V |
17~20V |
29~33V |
58~65V |
|
|
Protection mode,turn off output voltage, restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20-90% RH non-condensing |
|||||
|
storage TEMP humidity |
-10~+75℃，10~95%RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0~50℃） |
|||||
|
vibration |
10~500H, 2G10 minute cycle, X, Y, Z axis 60 minutes each installation in line with IEC60068-2-6 |
|||||
|
SAFETY |
Safety regulations |
UL508,UL60950-1,TUV EN60950-1,EAC TPTC 004 In line with the certification |
||||
|
Withstand voltage |
I/P~O/P:3KVAC I/P~FG:2.0KVA O/P~FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P~O/P.I/P~FG.O/P~FG:100M Ohms/500VDC/25℃/70% RH |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011,EN55032(CISPR32)CLASS B,EN61000-3-2,-3,EAC TP TC 020 |
|||||
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN1000-6-2(EN50082-2) Class A heavy industry standard, |
||||||
|
OTHERS |
MTBF |
≥1172.1K hrs.MIL-HDBK-217F(25℃) |
||||
|

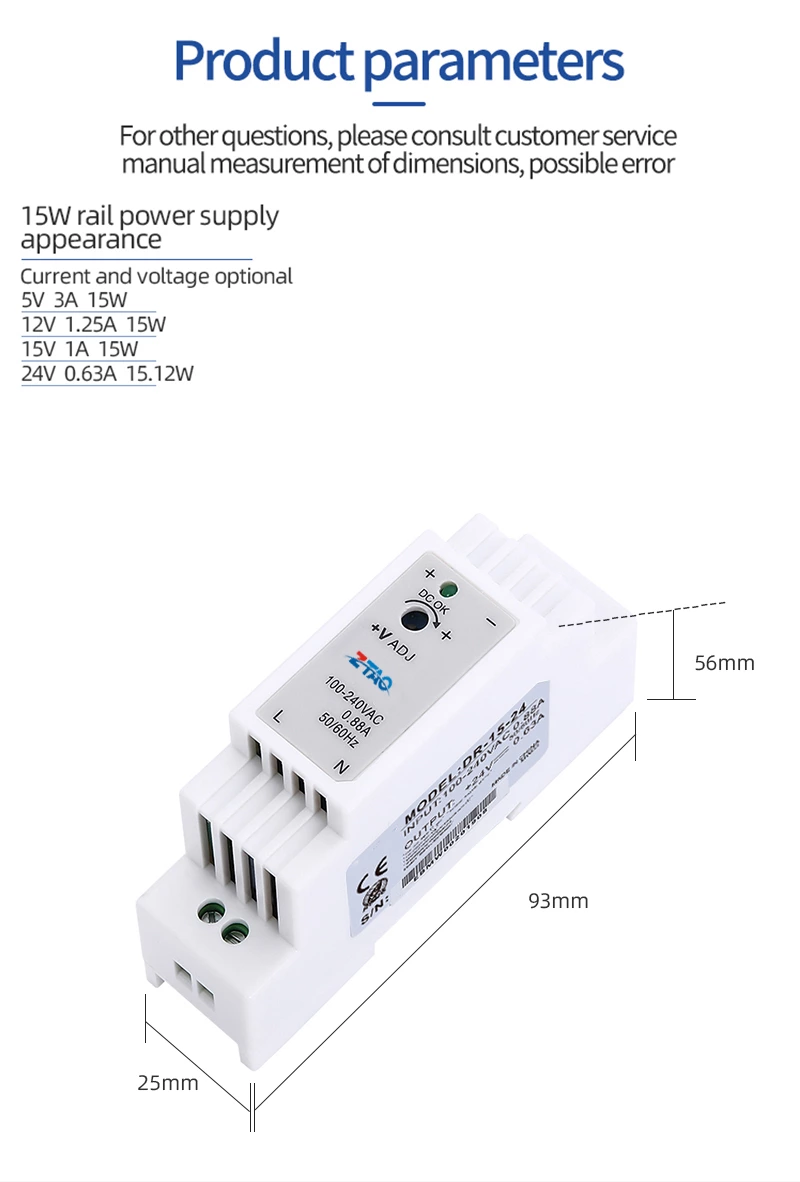

Dimension |

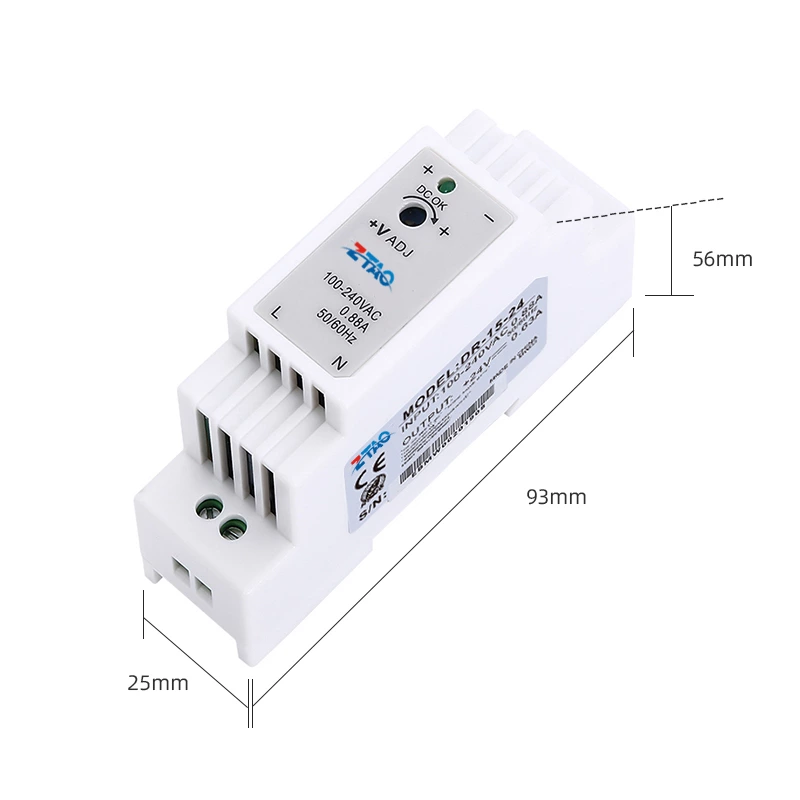

25*93*56mm(W*H*D) |
|||||
|
Packing |
0.1Kg:140PCS/15Kg/0.92CUFT |
|||||
