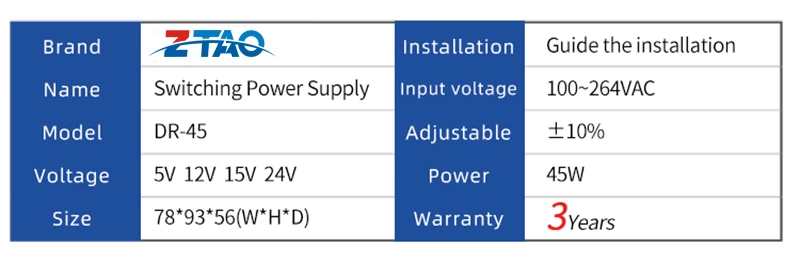

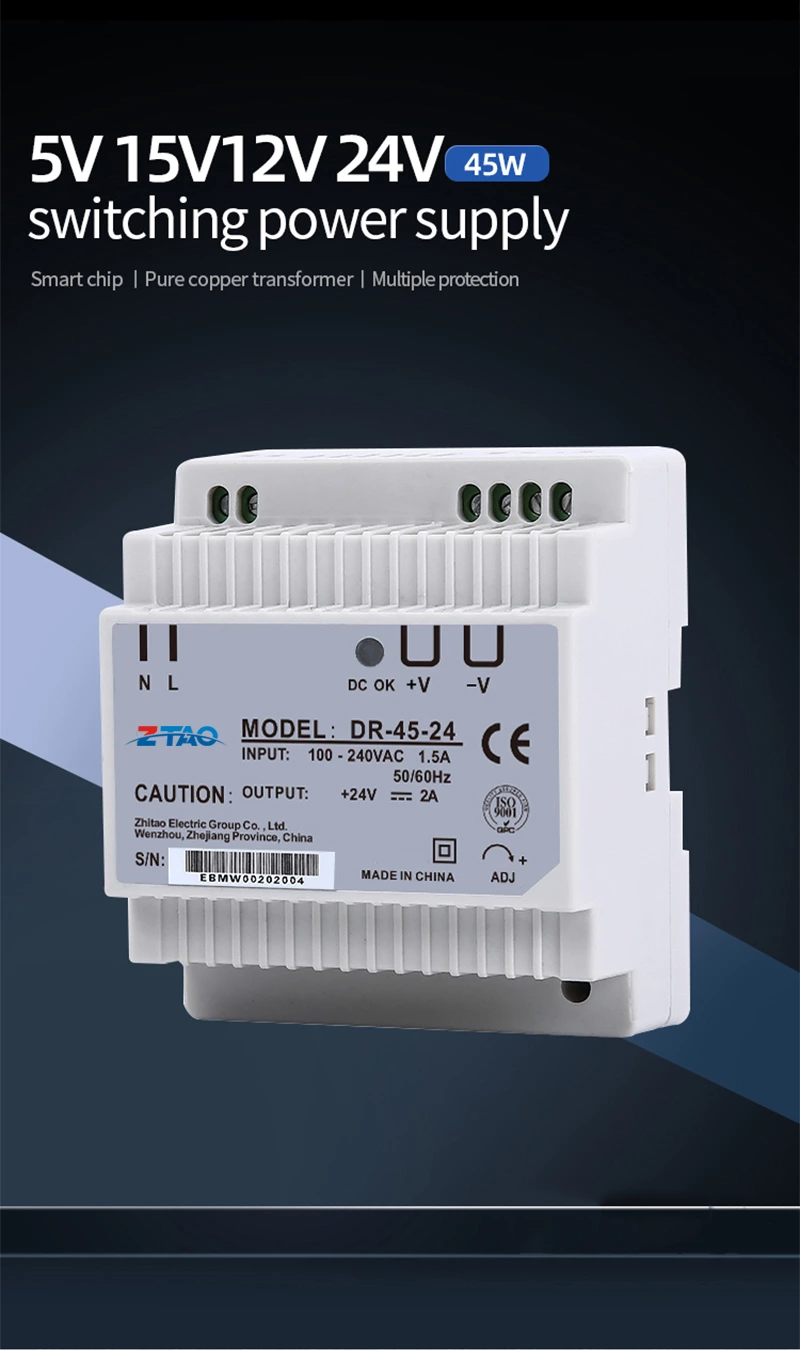

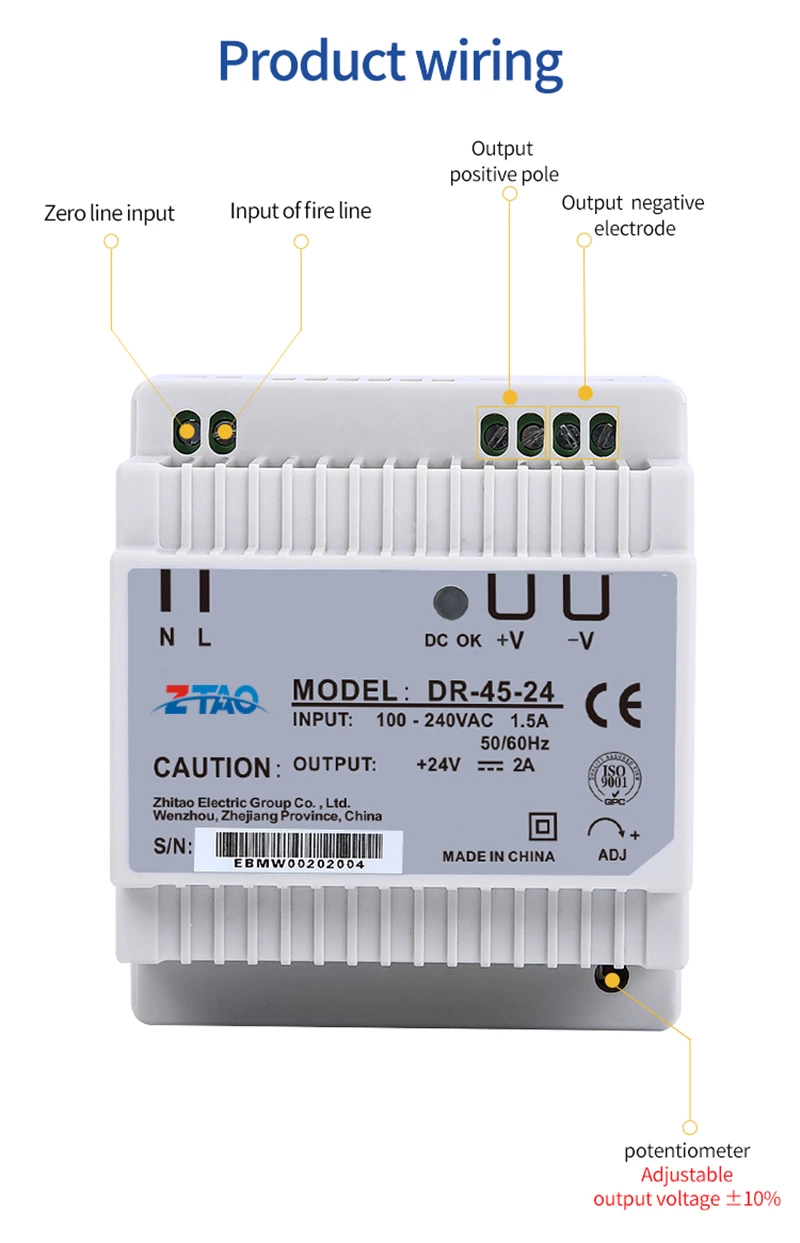

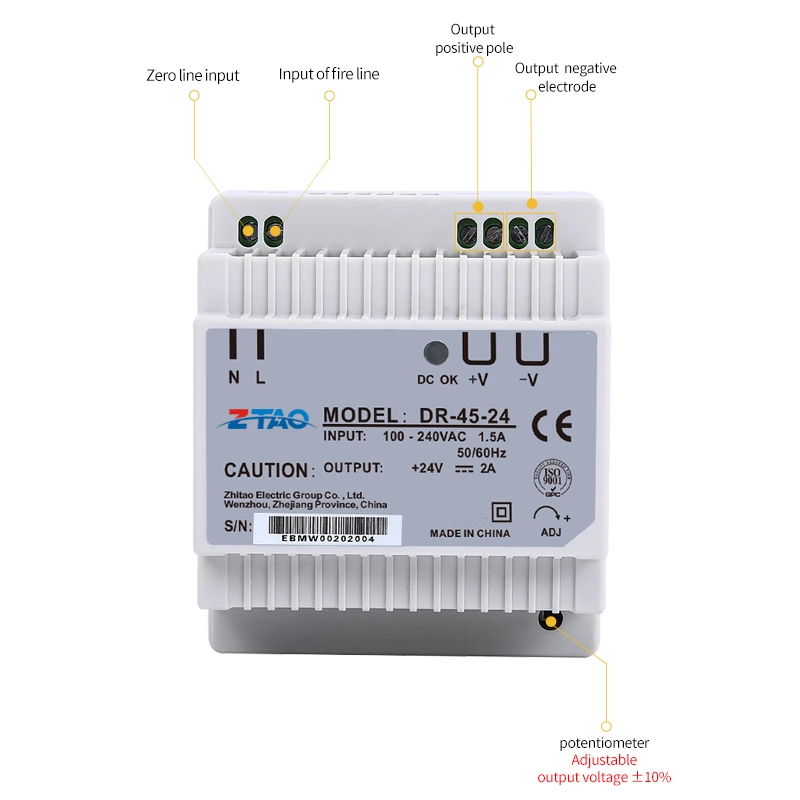

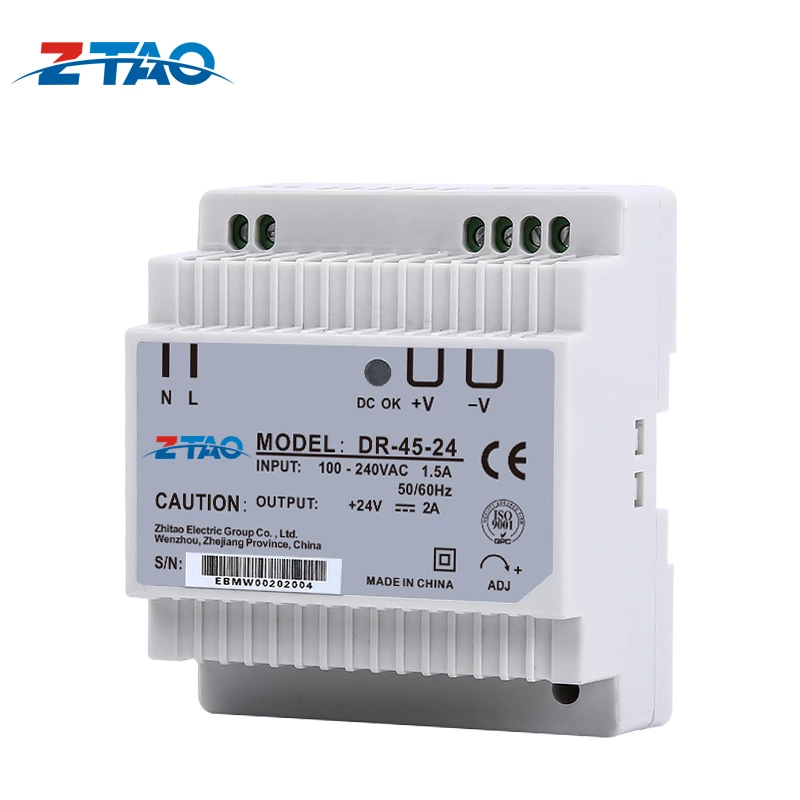

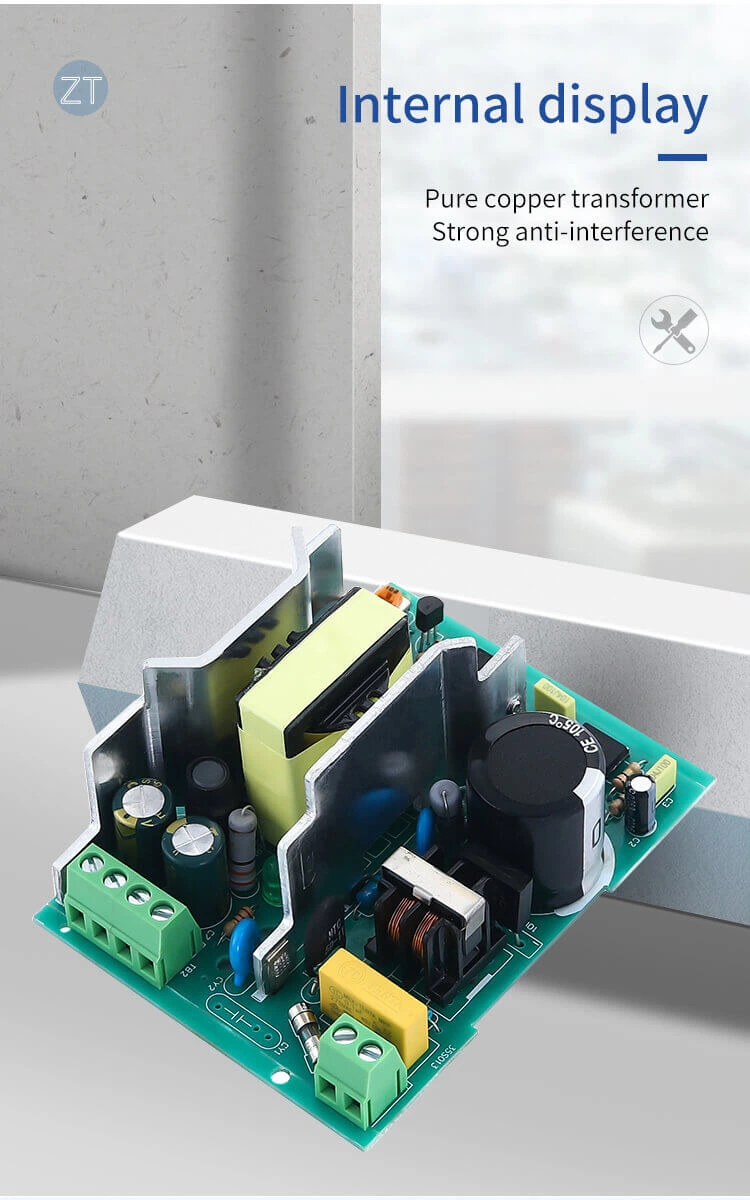

MODEL |
|
DR-45-5 |
DR-45-12 |
DR-45-15 |
DR-45-24 |
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
|
Rated Current |
5A |
3.5A |
2.8A |
2A |
|
|
Current range |
0~5A |
0~3.5A |
0~2.8A |
0~2A |
|
|
Rated power |
25W |
42W |
42W |
48W |
|
|
Ripple&noise |
100mVp-p |
200mVp-p |
240mVp-p |
480mVp-p |
|
|
Voltage ADJ |
4.75~5.5V |
10.8~13.2V |
13.5~16.5V |
21.6~26.4V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
800ms, 60ms/230VAC (full load) |
||||
|
Hold up time |
60ms/230VAC （full load) |
||||
|
INPUT |
Voltage range |
100～264VAC or 140～373VDC |
|||
|
Voltage range |
50~60Hz |
||||
|
Efficiency |
72% |
77% |
77% |
80% |
|
|
AC current |
1.5A/115VAC 0.75A/230VAC |
||||
|
Inrush current |
Cold start: 28A/115VAC 56A/230VAC |
||||
|
Leakage current |
<1mA/240VAC |
||||
|

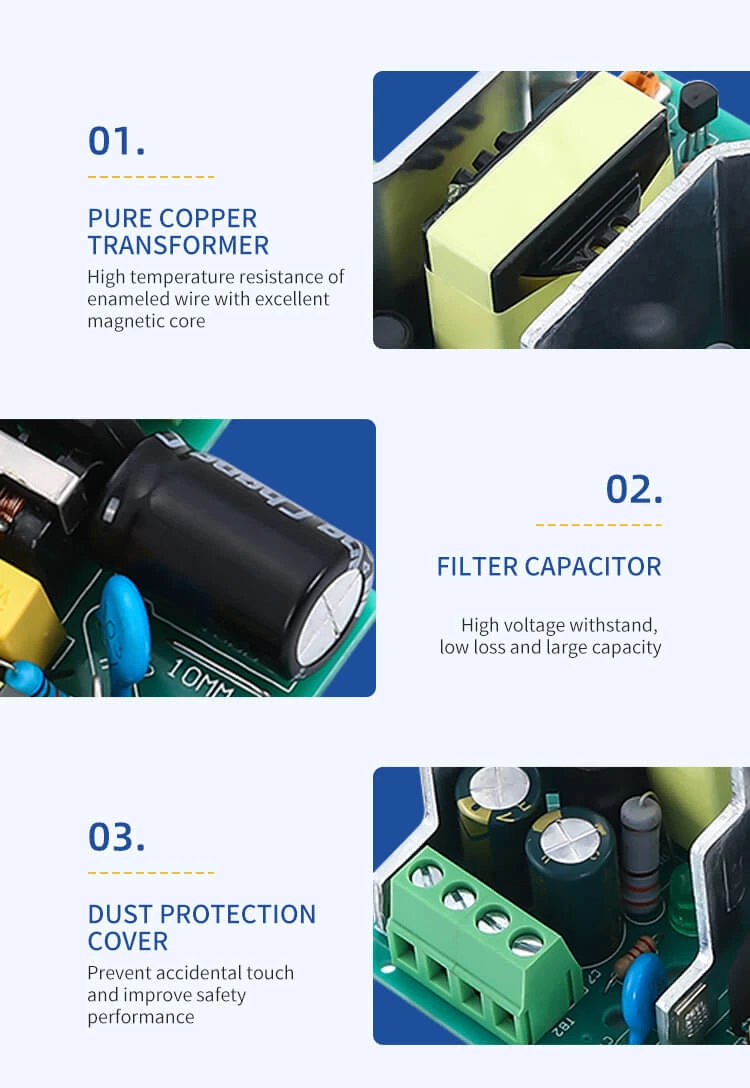

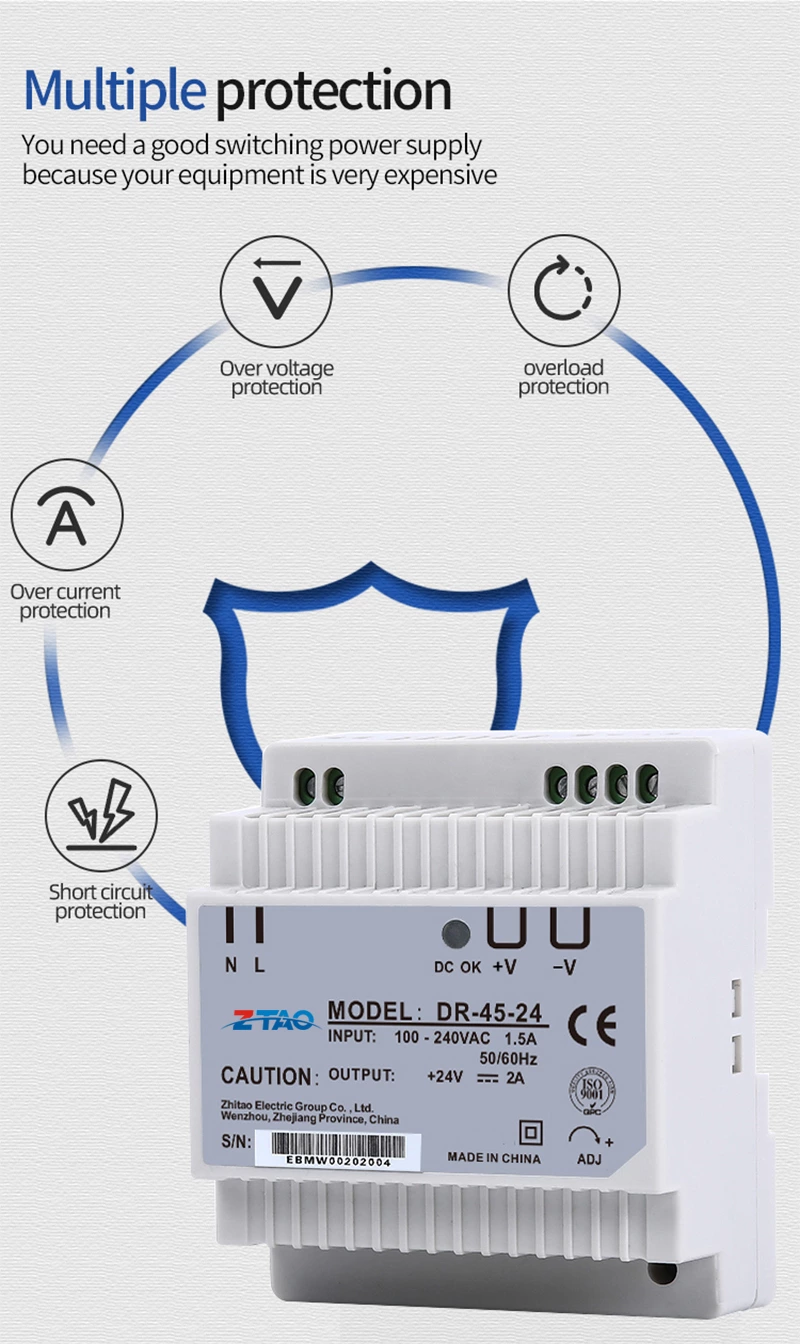

PROTECTION |
Over load |
105%~150% of the rated output |
|||
|
Protection mode: constant current limit, can be automatically restored after abnormal load condition is removed |
|||||
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
|
|
Protection mode: turn off the output voltage and clamp with a regulator diode |
|||||
|
Over temperature |
TJ135 ℃ typical value (U1) to detect the power transistor radiator |
||||
|
Protection mode: turn off the output voltage, resume after restart |
|||||
|
Environment |
Working TEMP |
-10~+60℃ |
|||
|
Working humidity |
20~90% RH,non-condensing |
||||
|
Storage TEMP humidity |
-20~+85℃,10-95%RH, |
||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6 |
||||
|
SAFETY&EMC |
Safety regulations |
UL508 UL60950-1, TUV EN60950-1 EAC TPTC 004 In line with the certification |
|||
|
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.4KVAC |
||||
|
Insulation impedance |
I/P-O/P I/P-FG. O/P-FG: 100M Ohms/500VDC/25℃/70% RH |
||||
|
Electromagnetic compatible emission |
Conform to the EN55011.EN55032(CISPR32).EN61000-3-2.-3.EAC TP TC 020 |
||||
|
Conform to the EN61000-4-2.3.4,5,6.8,11, EN55024, EN61000-6-2(EN50082-2). Class A heavy industry standard EAC TP TC 020 |
|||||
|
OTHERS |
MTBF |
≥364.6K hrs.MIL-HDBK-217F(25℃) |
|||
|

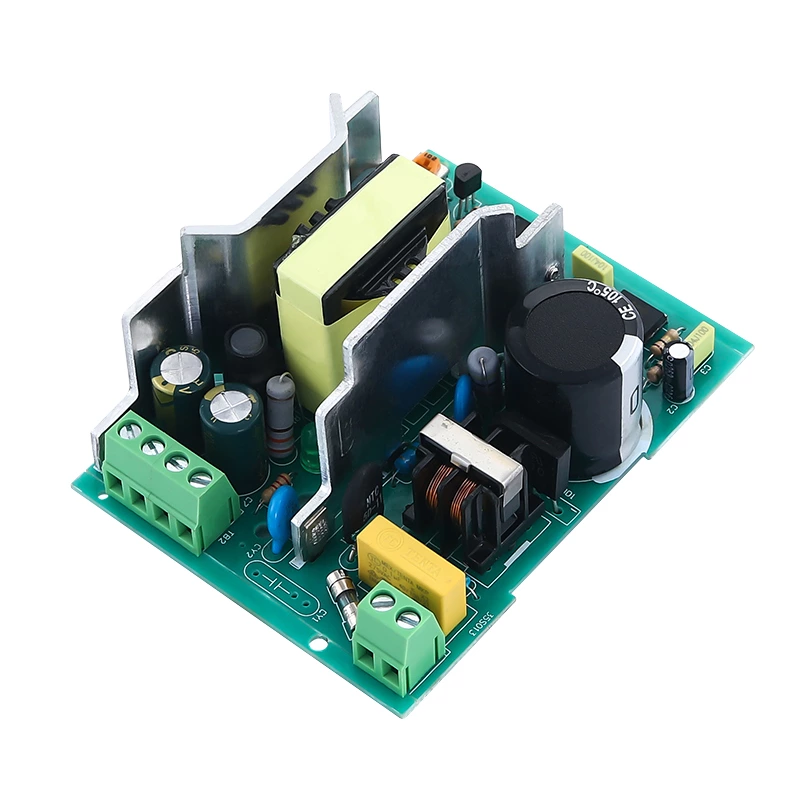

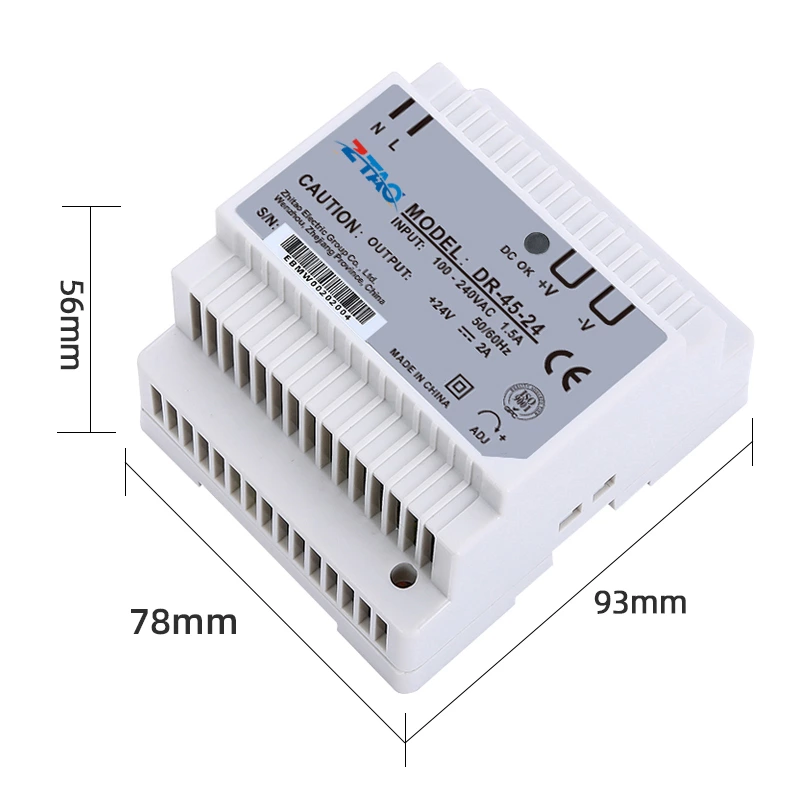

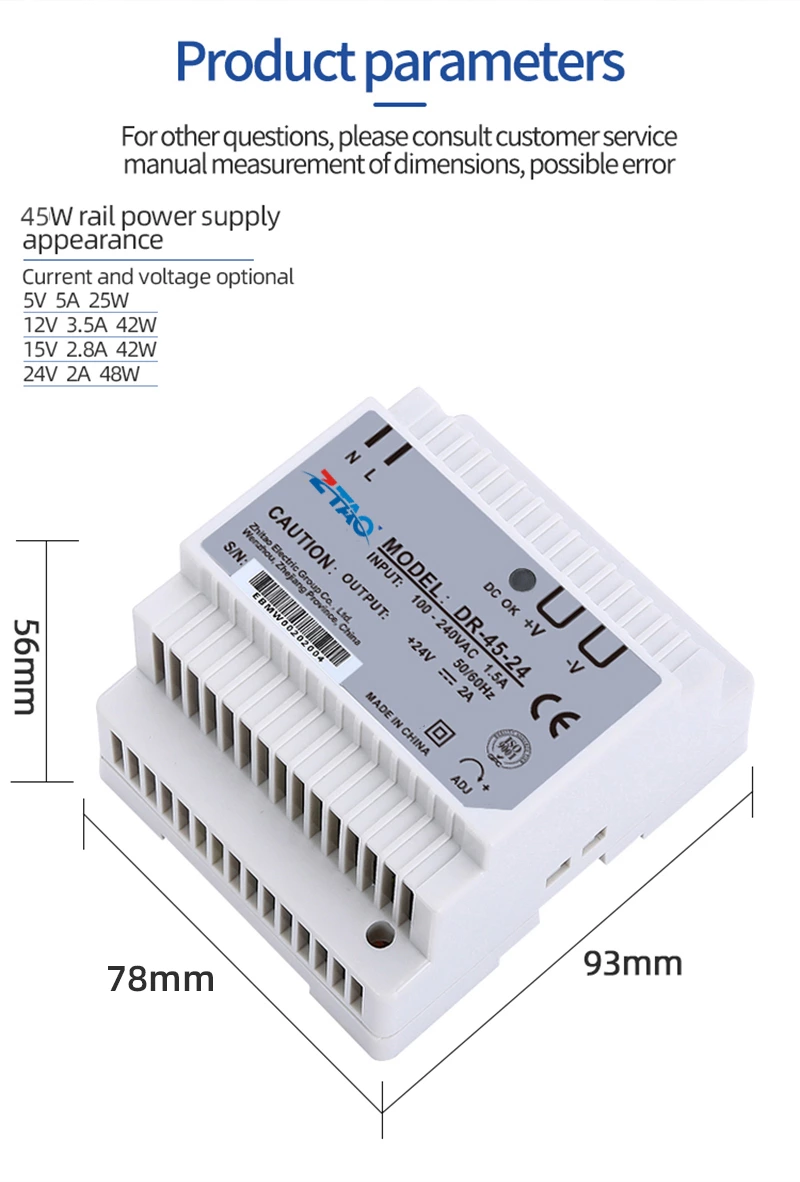

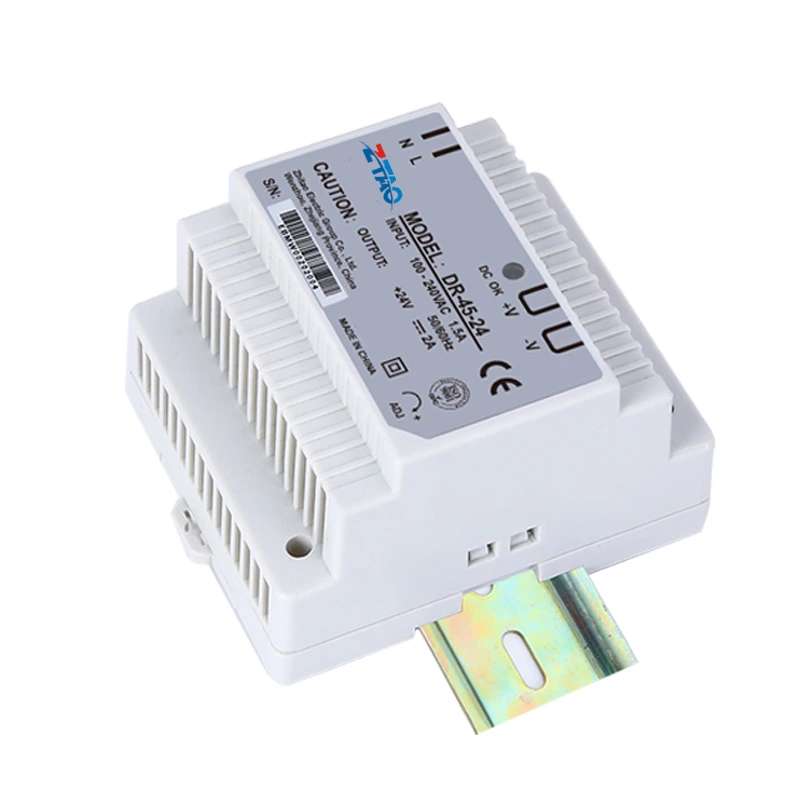

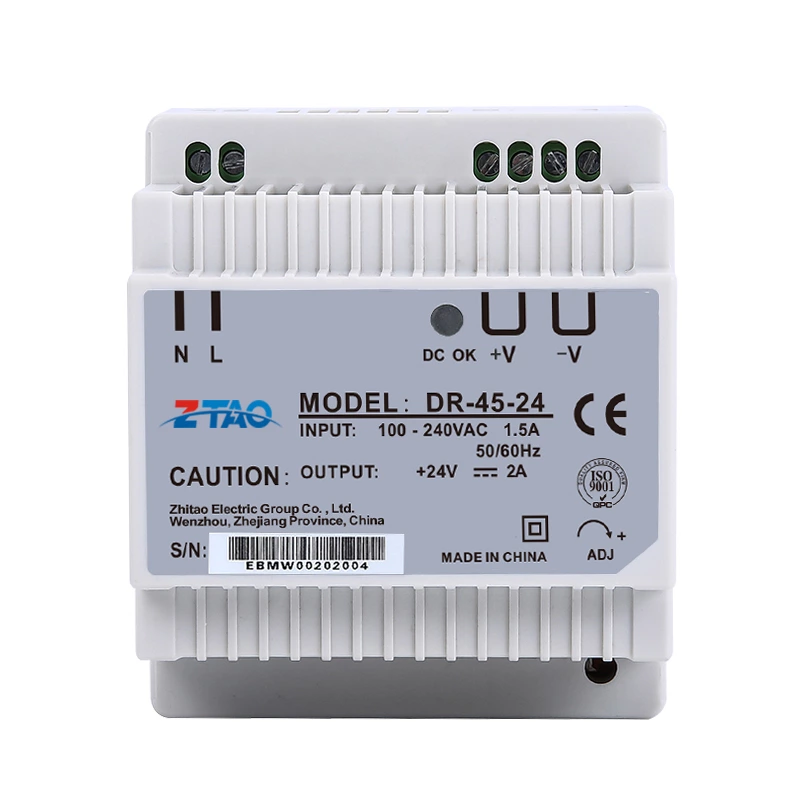

Dimension |
78*93*56mm (W*H*D) |
||||
|
Packing |
0.31Kg;48pcs/17.5Kg/1.3CUFT |
||||
