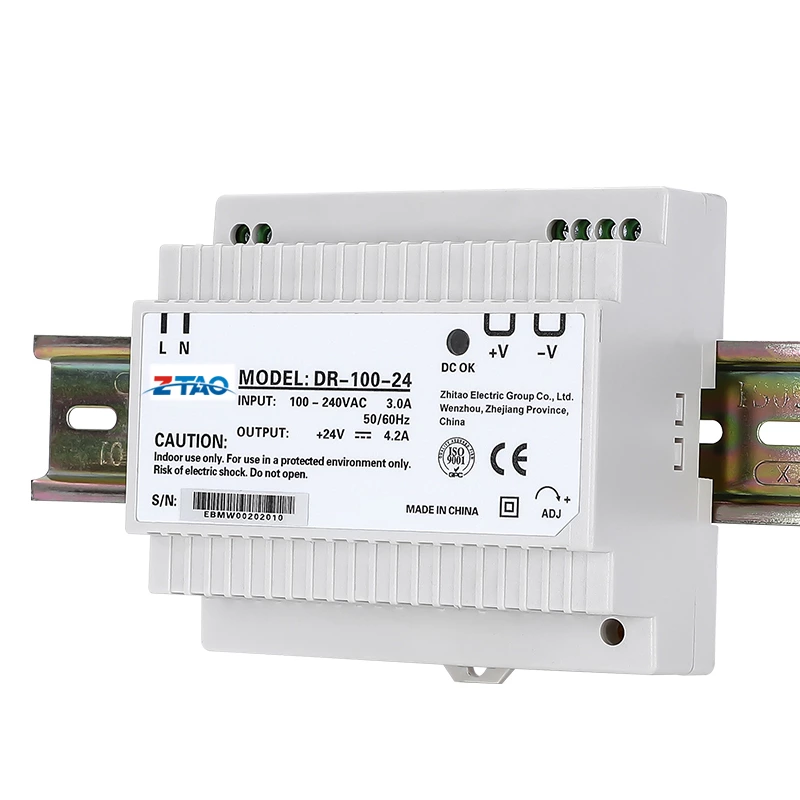

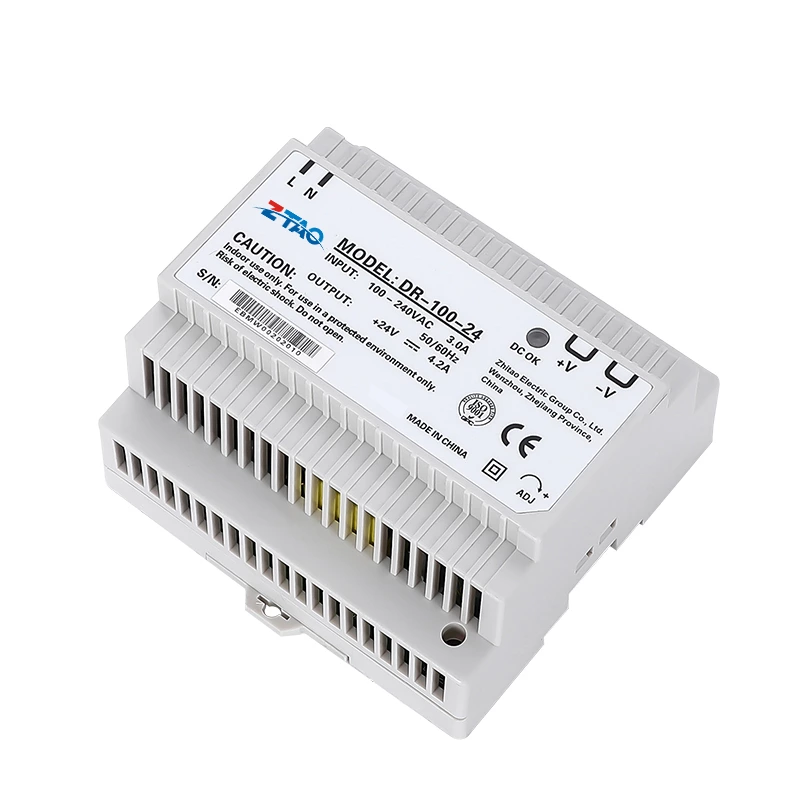

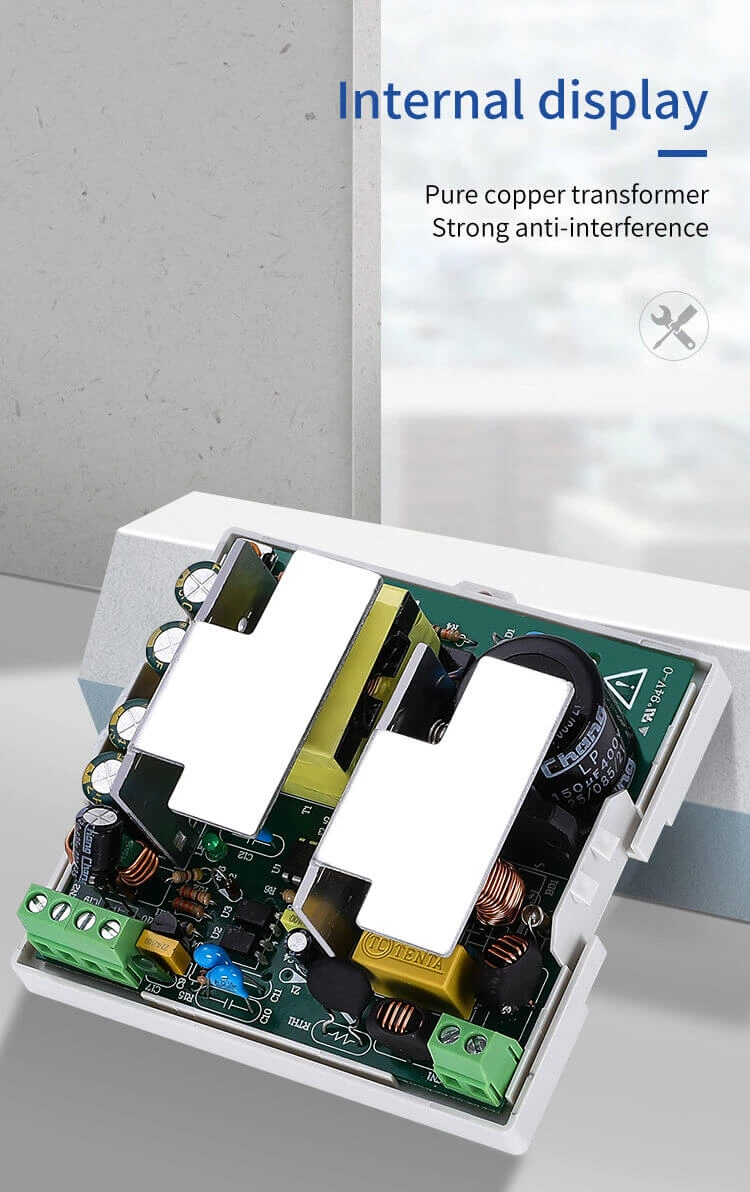

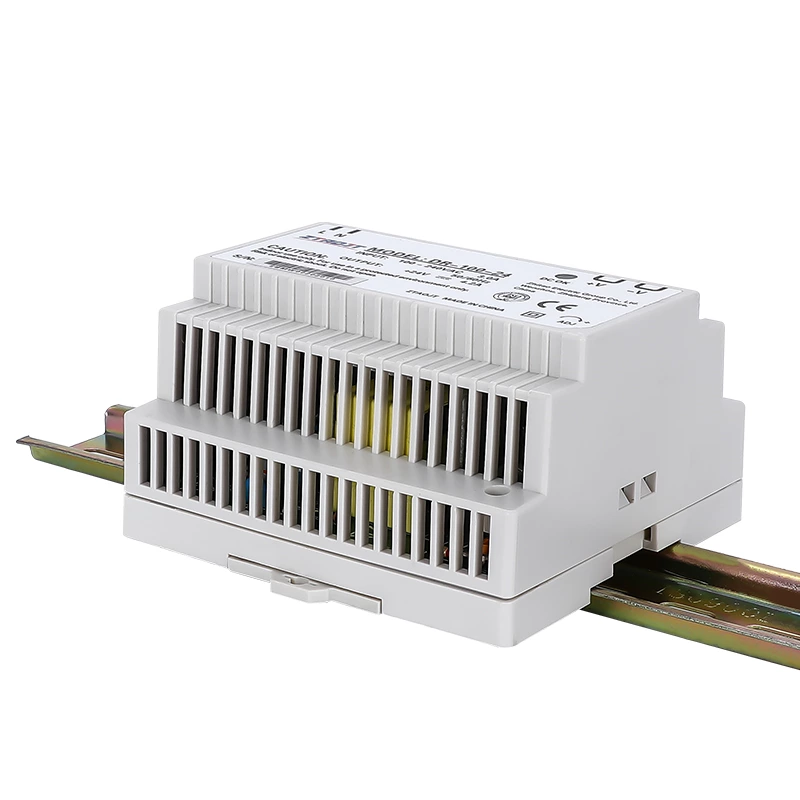

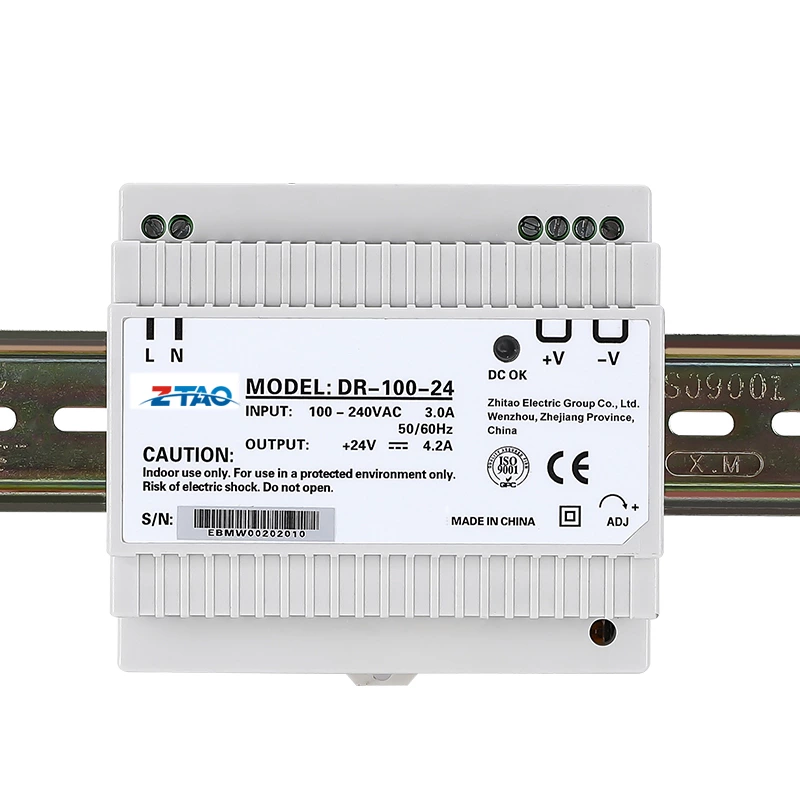

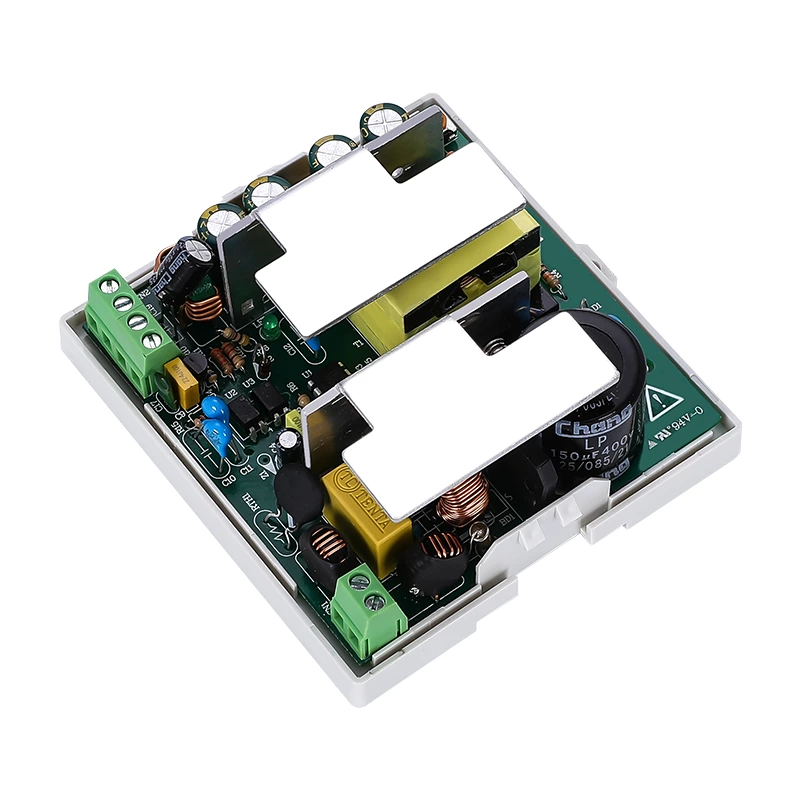

MODEL |
|
DR-100-12 |
DR-100-15 |
DR-100-24 |
|
OUTPUT |
DC Voltage |
12V |
15V |
24V |
|
Rated Current |
7.5A |
6.5A |
4.2A |
|
|
Current range |
0~7.5A |
0~6.5A |
0~4.2A |
|
|
Rated power |
90w |
97.5w |
100.8W |
|
|
Ripple&noise |
120mVp-p |
120mVp-p |
150mVp-p |
|
|
Voltage ADJ |
12~14V |
15~18V |
24~29V |
|
|
Voltage tolerance n |
±2.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
2700ms, 80ms/230VAC 2700ms, 80ms/115VAC(full load) |
|||
|
Hold up time |
50ms/230VAC 18ms/115VAC（full load) |
|||
|

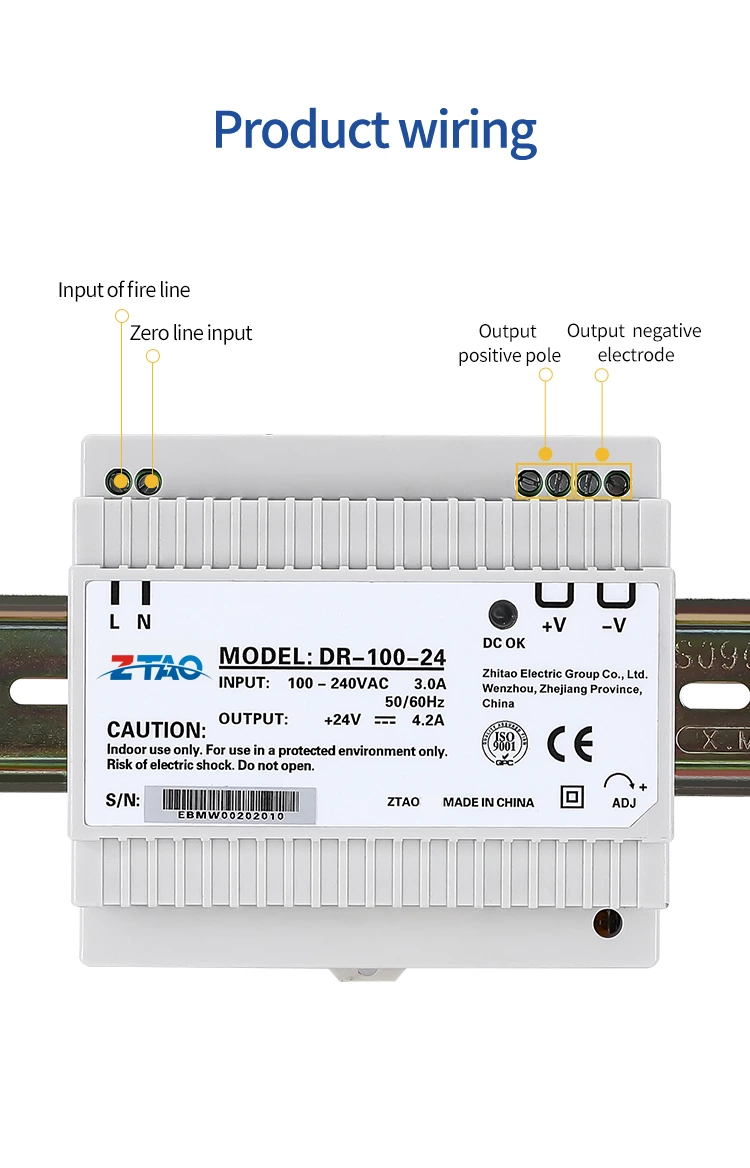

INPUT |
Voltage range |
100~264VAC or 140~373VDC |
||
|
Voltage range |
50~60Hz |
|||
|
Efficiency |
85% |
87% |
87% |
|
|
AC current |
3A/115VAC 1.6A/230VAC |
|||
|
Inrush current |
Cold start: 30A/115VAC 45A/230VAC |
|||
|
Leakage current |
<1mA/240VAC |
|||
|

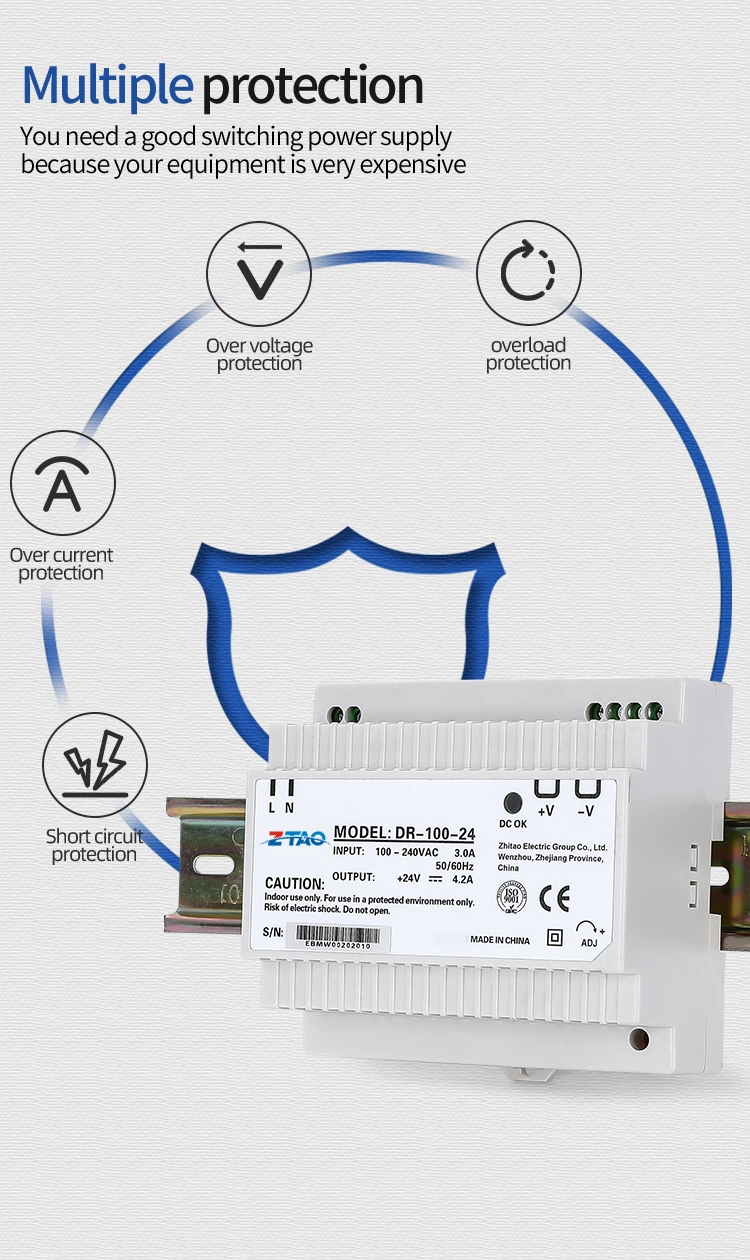

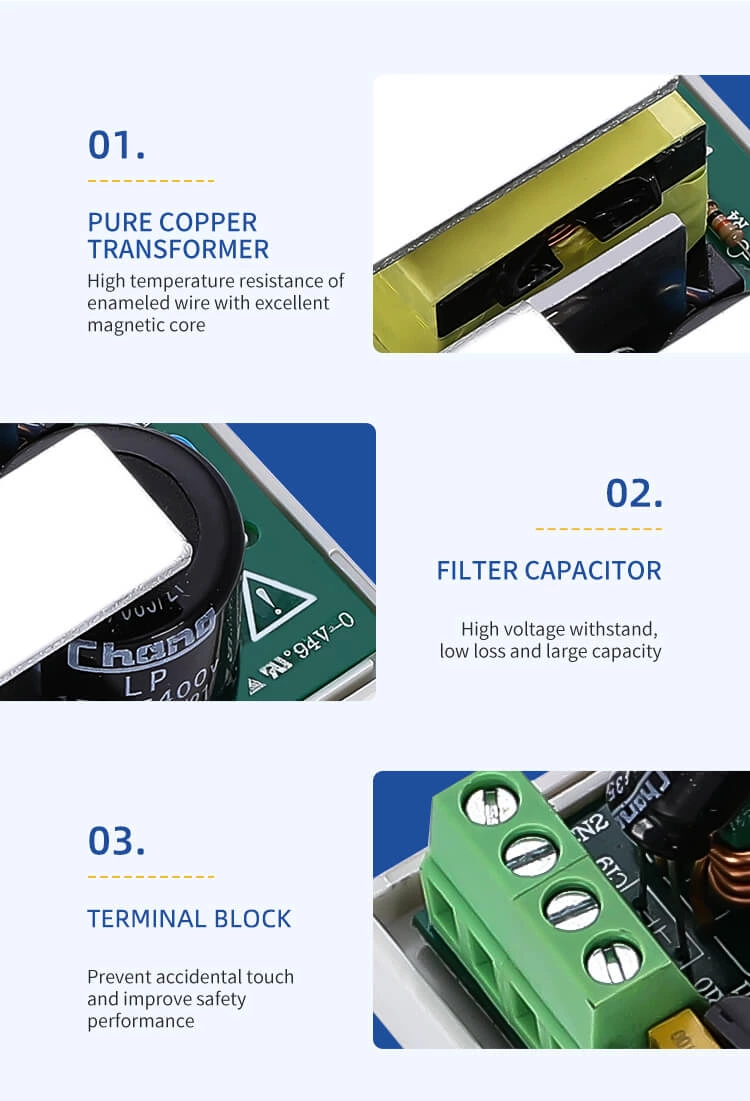

PROTECTION |
Over load |
105~150% rated output power |
||
|
Protected mode: hiccup mode , can be automatically restored after the load abnormal condition is removed |
||||
|
Over voltage |
15~16.5V |
19~23V |
30~35V |
|
|
Protective mode; Close the output and restart to restore |
||||
|
OTP |
Protection mode: turn off the output voltage, and automatically restore when the temperature returns to normal |
|||
|
Environment |
Working TEMP |
-10~+60℃ |
||
|
Working humidity |
20~90% RH,non-condensing |
|||
|
Storage TEMP humidity |
-10~+60℃,10-95%RH, |
|||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6 |
|||
|
SAFETY&EMC |
Safety regulations |
UL508 UL60950-1, TUV EN60950-1 EAC TPTC 004 In line with the certification |
||
|
Withstand voltage |
I/P-OP:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
|
Insulation impedance |
I/P-O/P I/P-FG. O/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||
|
Electromagnetic compatible emission |
Conform to the EN55011 EN55032 (CISPR32)CLASS B.EN61000-3-2.3.EAC TP TC 020 |
|||
|
Conform to the EN61000-4-2.3.4,5,6.8,11, EN55024, EN1000-6-2(EN50082-2). Class A heavy industry standard |
||||
|
OTHERS |
MTBF |
≥486K hrs.MIL-HDBK-217F(25℃) |
||
|

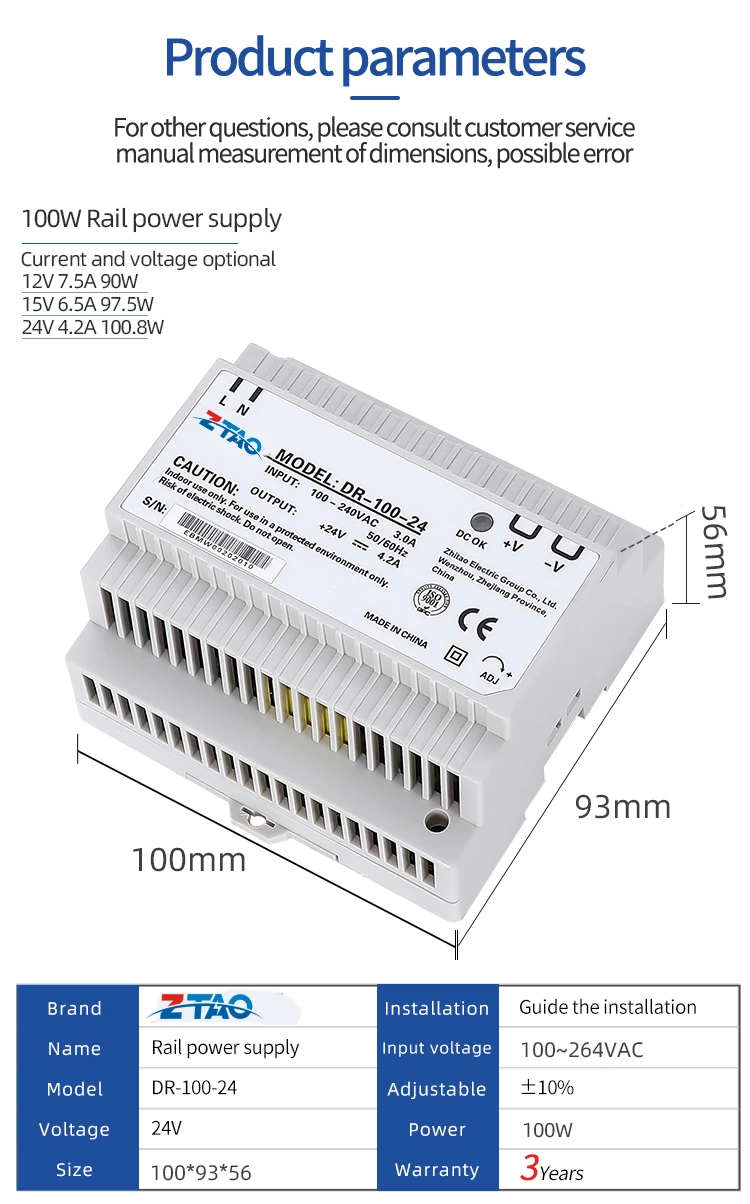

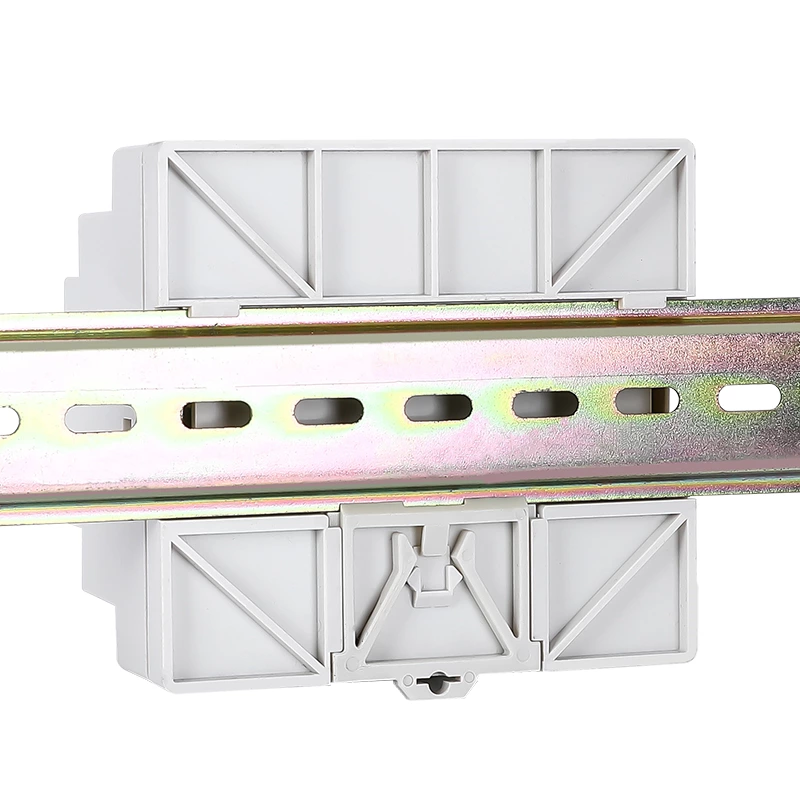

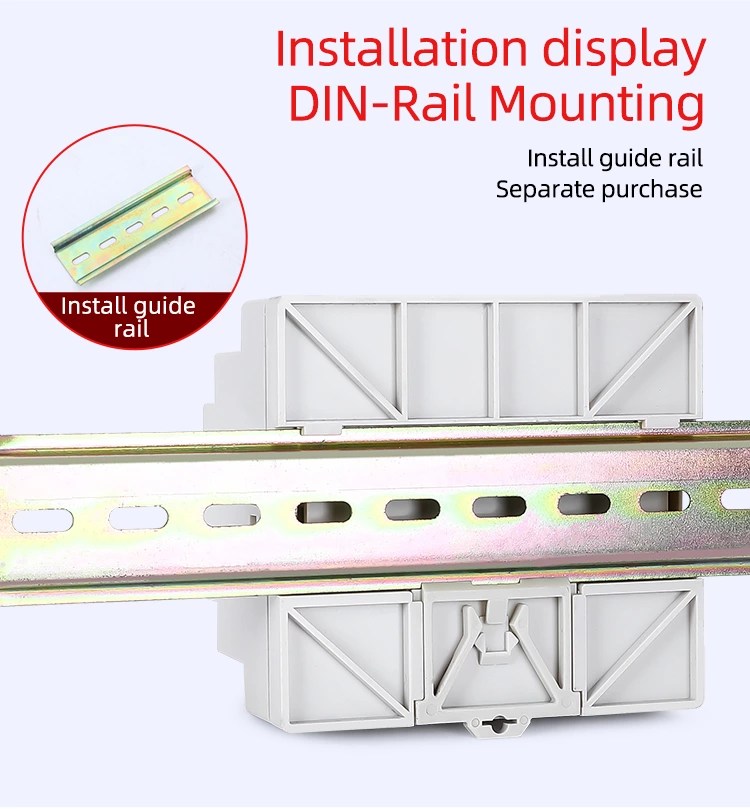

Dimension |
100*93*56mm (W*H*D) |
|||
|
Packing |
0.35Kg;36pcs/13Kg |
|||
