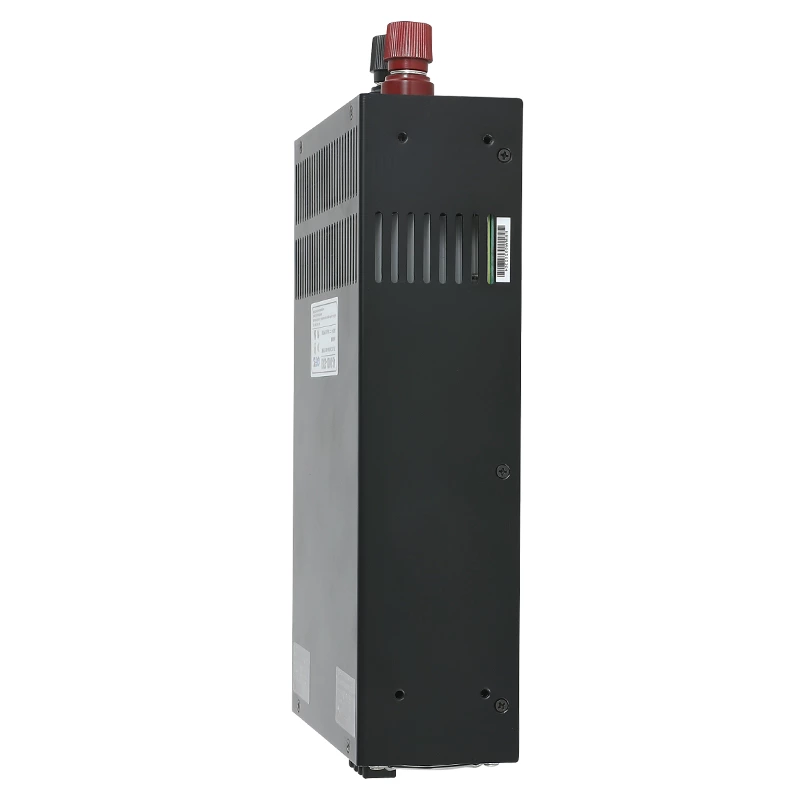

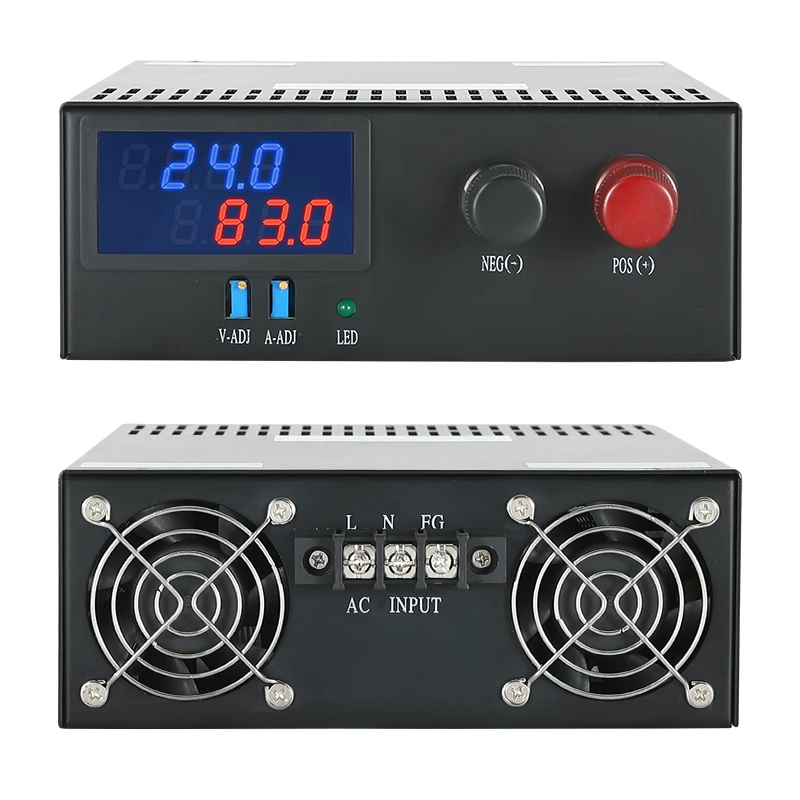

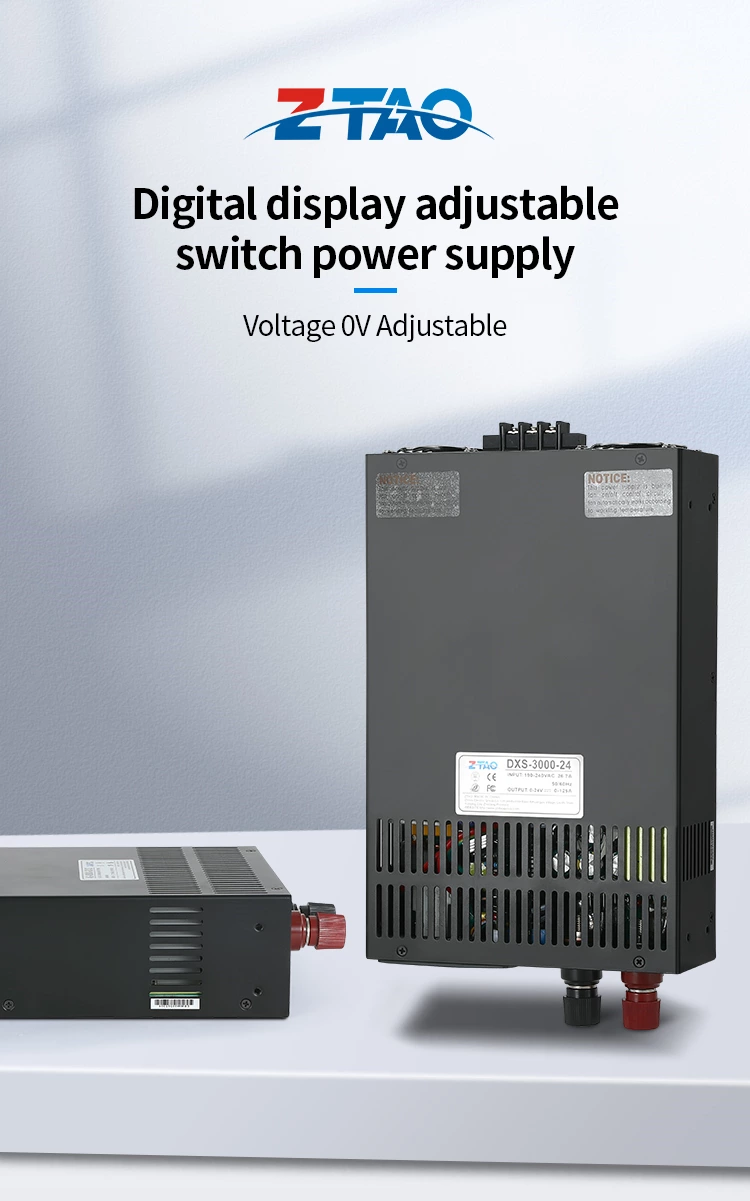

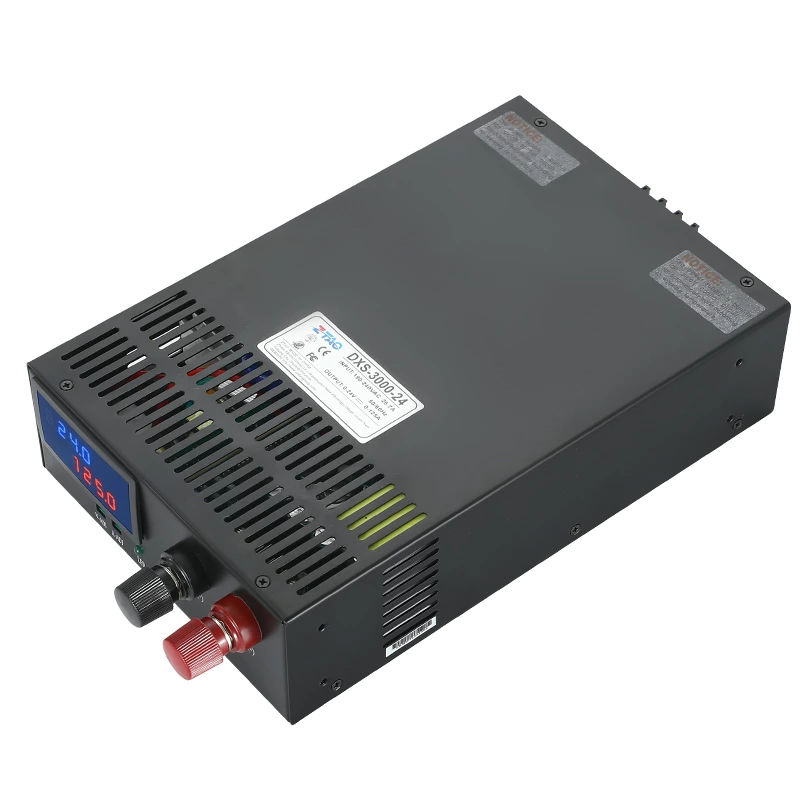

High quality switch power adapters for led drivers DXS-3000-24 24v 125a 3000w AC to DC Digital Display power supply for 24vdc

DXS-3000-12 Output voltage and current 12V 250A DXS-3000-24 Output voltage and current 24V 125A DXS-3000-36 Output voltage and current 36V 83.3A DXS-3000-48 Output voltage and current 48V 62.5A DXS-3000-60 Output voltage and current 60V 50A

Place of Origin;

Yueqing,Wenzhou city, Zhejiang province ,China

Brand Name:

ZTAO

Model Number:

DXS-3000-12 DXS-3000-24 DXS-3000-36 DXS-3000-48 DXS-3000-60

Output Type:

Single

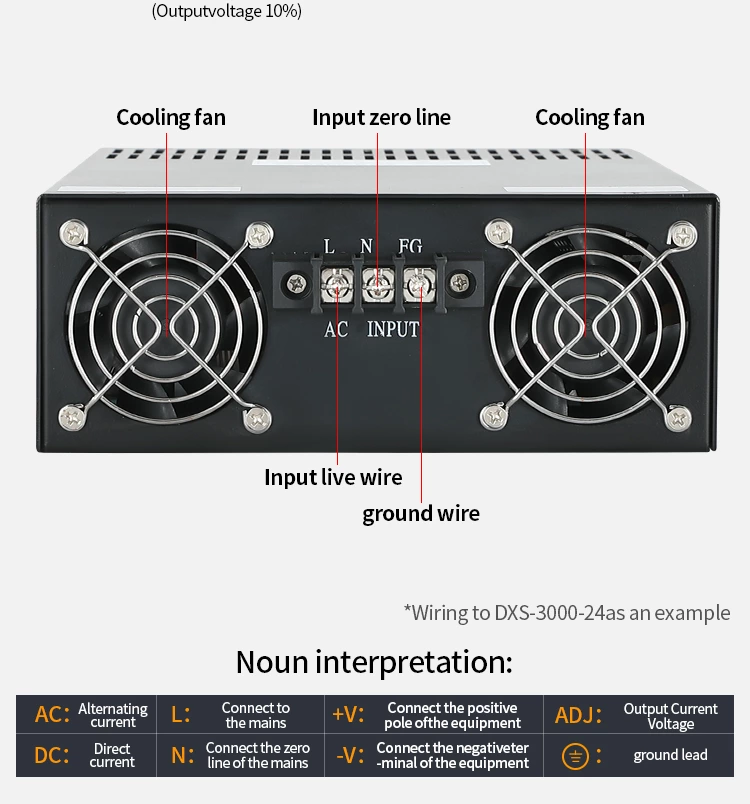

Input Voltage:

190~240VAC

Output Voltage:

24V/12V/48V/36V/60V Or customzied

Output Frequency:

50~60Hz

Output Current:

12V is 250A different voltage and different current

Output Power

3000W

Efficiency:

86%

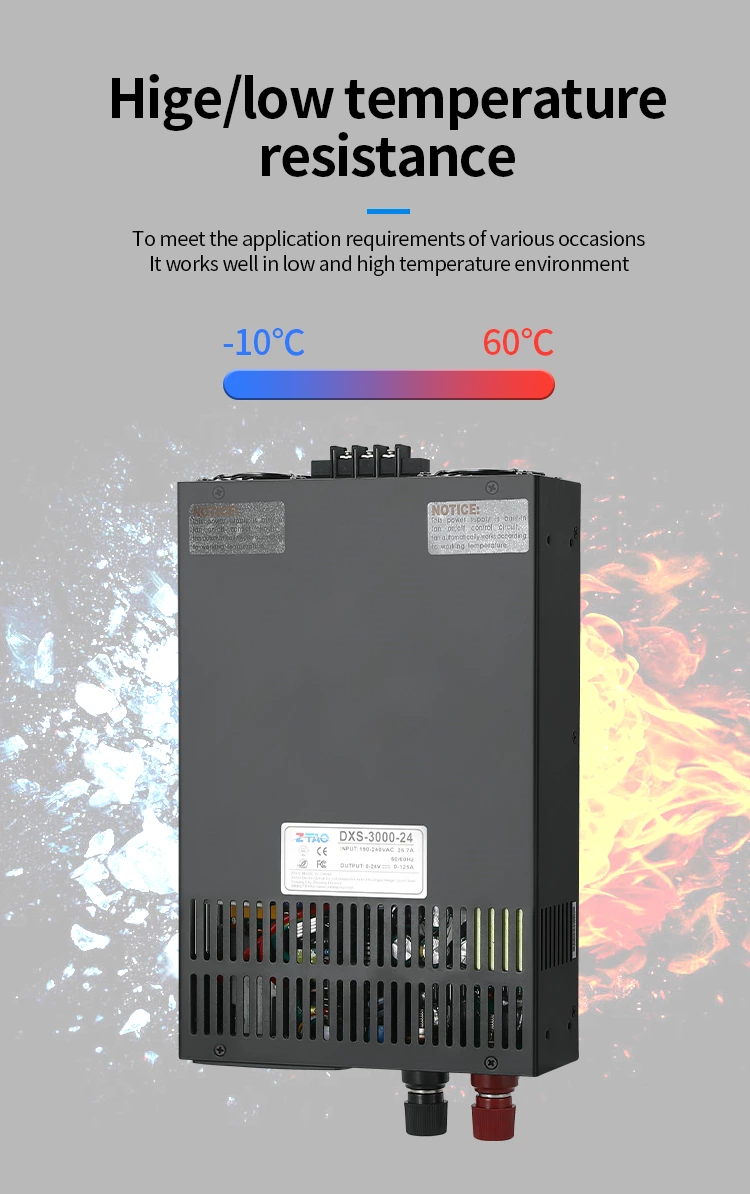

Workig Temperature:

-10℃~+60℃

Certification:

CE FCC ROHS ISO9001

Test:

100% Full load burn-in test

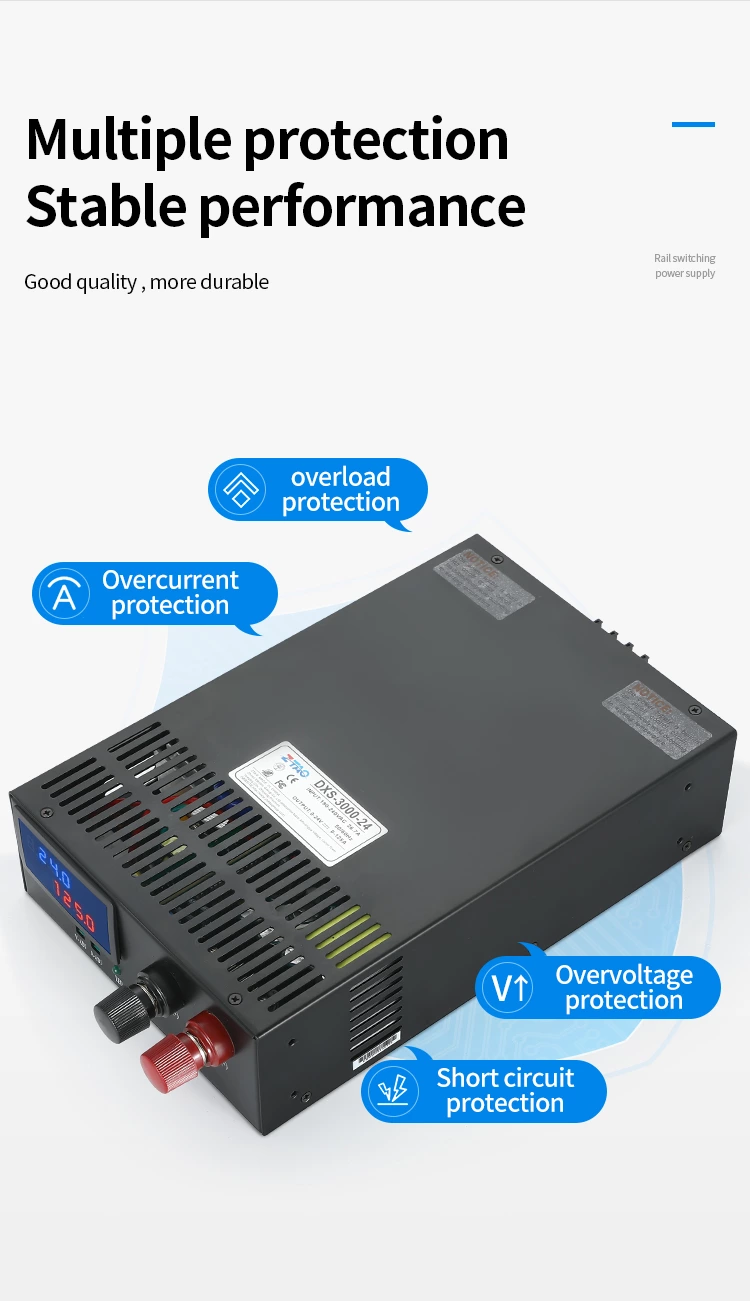

Protection:

Short Circuit/ Overtemp/ Overload/ Overvolt/Over current

Warranty

3 years

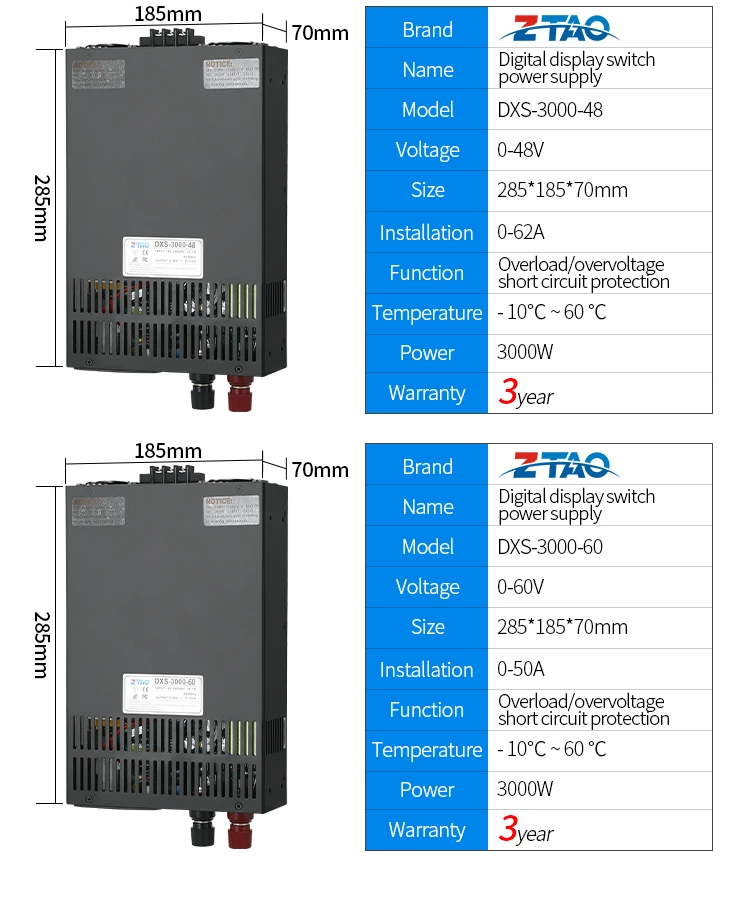

Size

285*185*70mm

High quality switch power adapters for led drivers DXS-3000-24 24v 125a 3000w AC to DC Digital Display power supply for 24vdc

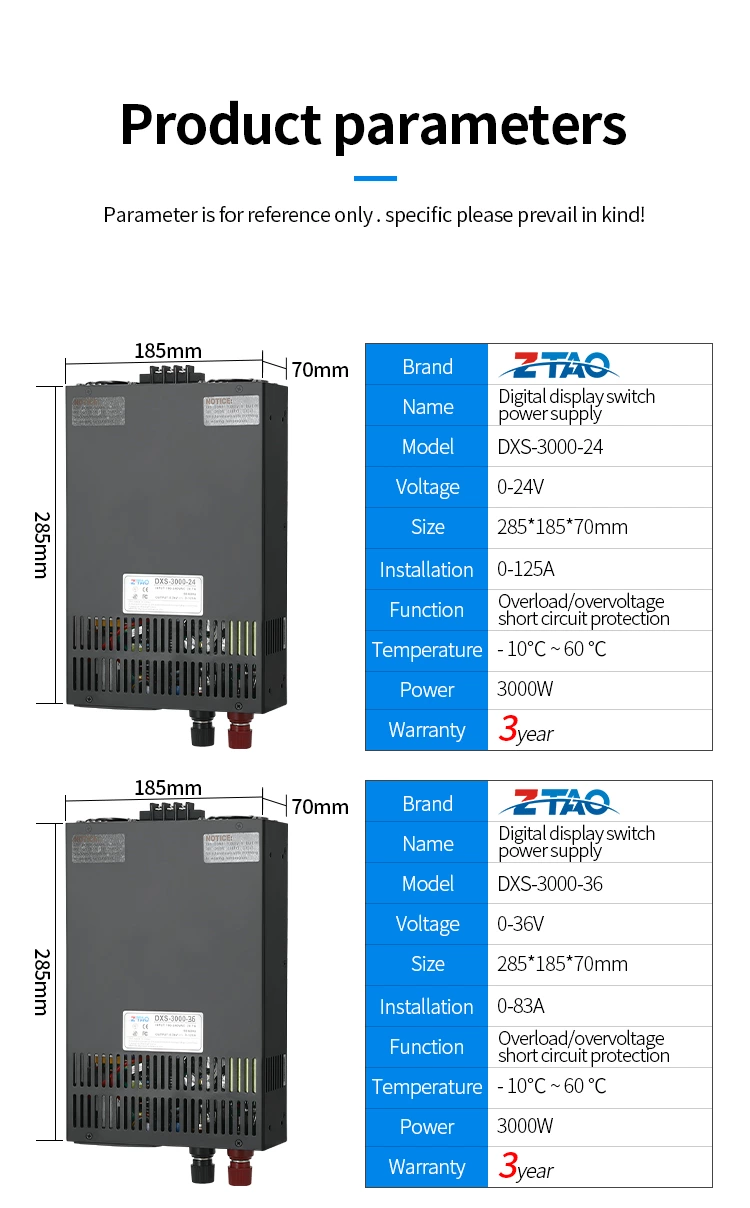

MODEL	DXS-3000-12	DXS-3000-24	DXS-3000-36	DXS-3000-48	DXS-3000-60	DXS-3000-80
Output Voltage	12V	24V	36V	48V	60V	80V
Rated Current	250A	125A	83A	62.5A	50A	37.5A
Current range	0~250A	0~125A	0~83A	0~62.5A	0~50A	0~37.5A
Rated power	3000W	3000W	3000W	3000W	3000W	3000W
Ripple&noise	150mVp-P	150mVp-P	150mVp-P	200mVp-p	200mVp-p	200mVp-p
Efficiency	78.00%	80.00%	82%	82%	84.00%	84.00%
